TITANUS
MICRO·SENS
®
Design
06/13
77

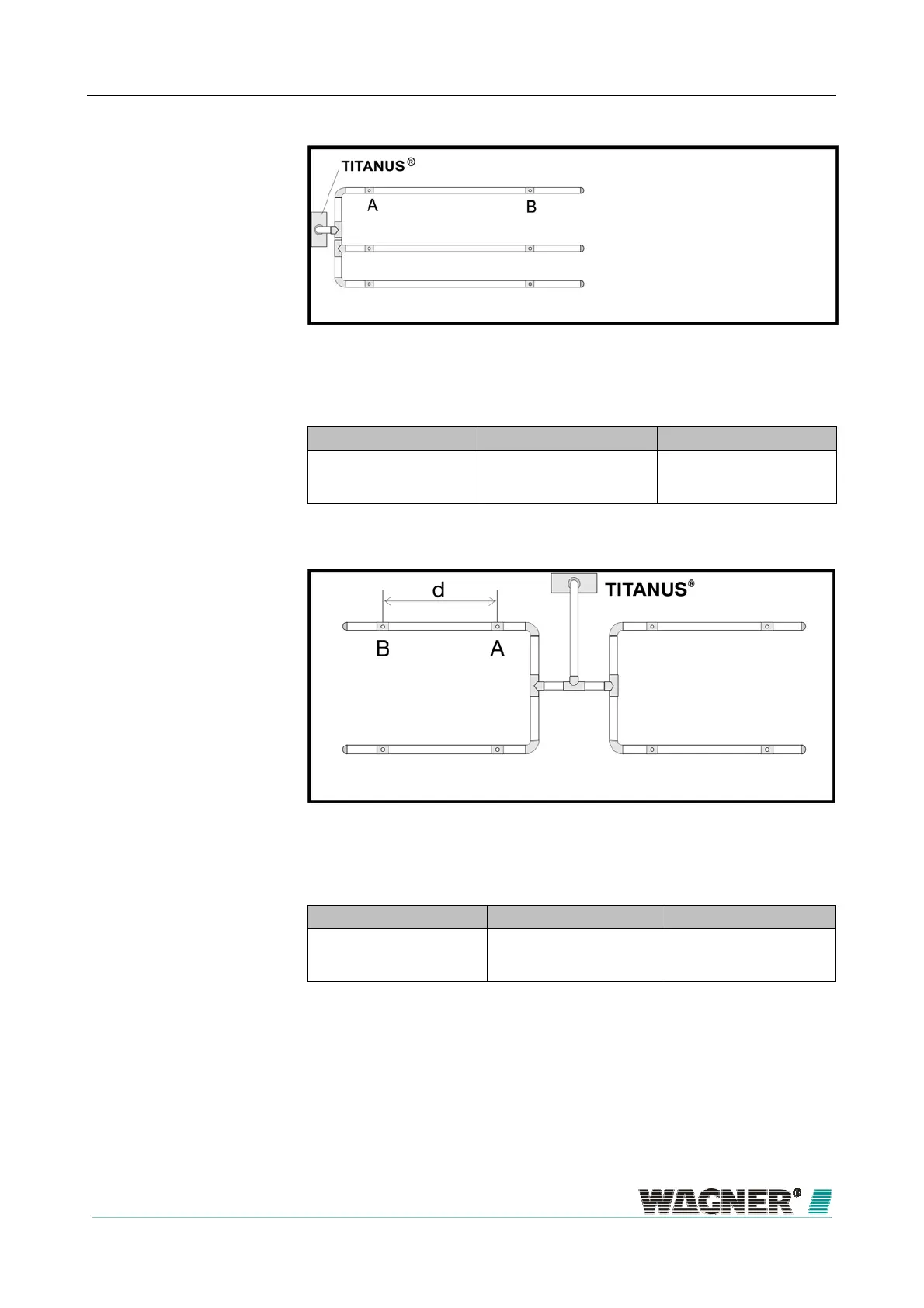

Figure 41: M-pipe system
Number of apertures 3 6
Aspiration aperture in mm*
A
B
5,0
3,6
4,0
*) Press cut diameter in aspiration-reducing film sheet
Figure 42: Double U-pipe system
Number of apertures 4 8
Aspiration aperture in mm*
A
B
4,4
3,0
3,8
*) Press cut diameter in aspiration-reducing film sheet
M-pipe
A
spiration apertures
Double U-pipe
A
spiration apertures
