Replacement
1. If a new Media Transport Assembly is being
installed, perform the Media Transport to Drum
Spacing (ADJ 8.4).
2. Open the Cutter Drawer.
3. (Figure 4): Reinstall the Media Transport
Assembly.
Reconnect the
Corotron Leads and
Connector A21P1
Route the Drain Hose
and reconnect it
Rotate and lock the
bracket
Place the pin on the tamp
Install the Tumaro and Baffle under the
Developer Assembly Shelf (both ends)
Move the pin into
the locating hole
Pull and hold
the pin
5
Move the Transport in,
align the pin with the
bushing, and release the
pin

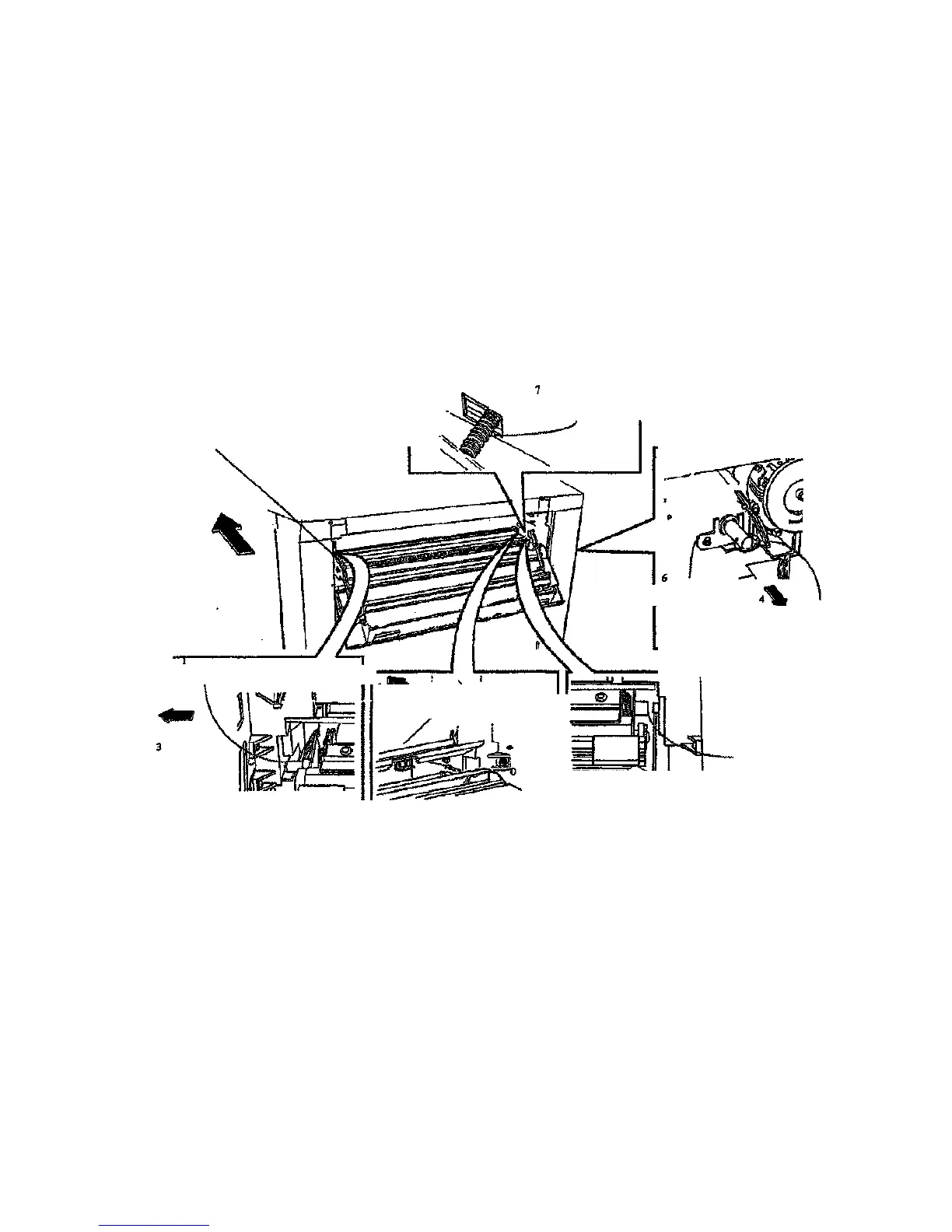

Figure 4. Reinstalling the Media Transport Assembly
8830
1/98
4-19
REP 8.1
