5. (Figure 3): Remove the Media Transport
Assembly.
1
Disconnect the Latch
Arms from the Transport
(Both sides)
5
Ensure that the
Moisture Collection
Tube is out of the hole
in the frame
Remove the Media
Transport Assembly
Loosen the screw and
rotate the bracket
downward
Pull the pin and hold it
out of the Transport
Move the Media
Transport pin out of
the locating hole and
onto the ramp
4
Ensure that the pin is free of
the bushing and move the
Right Side of the Media
Transport toward you

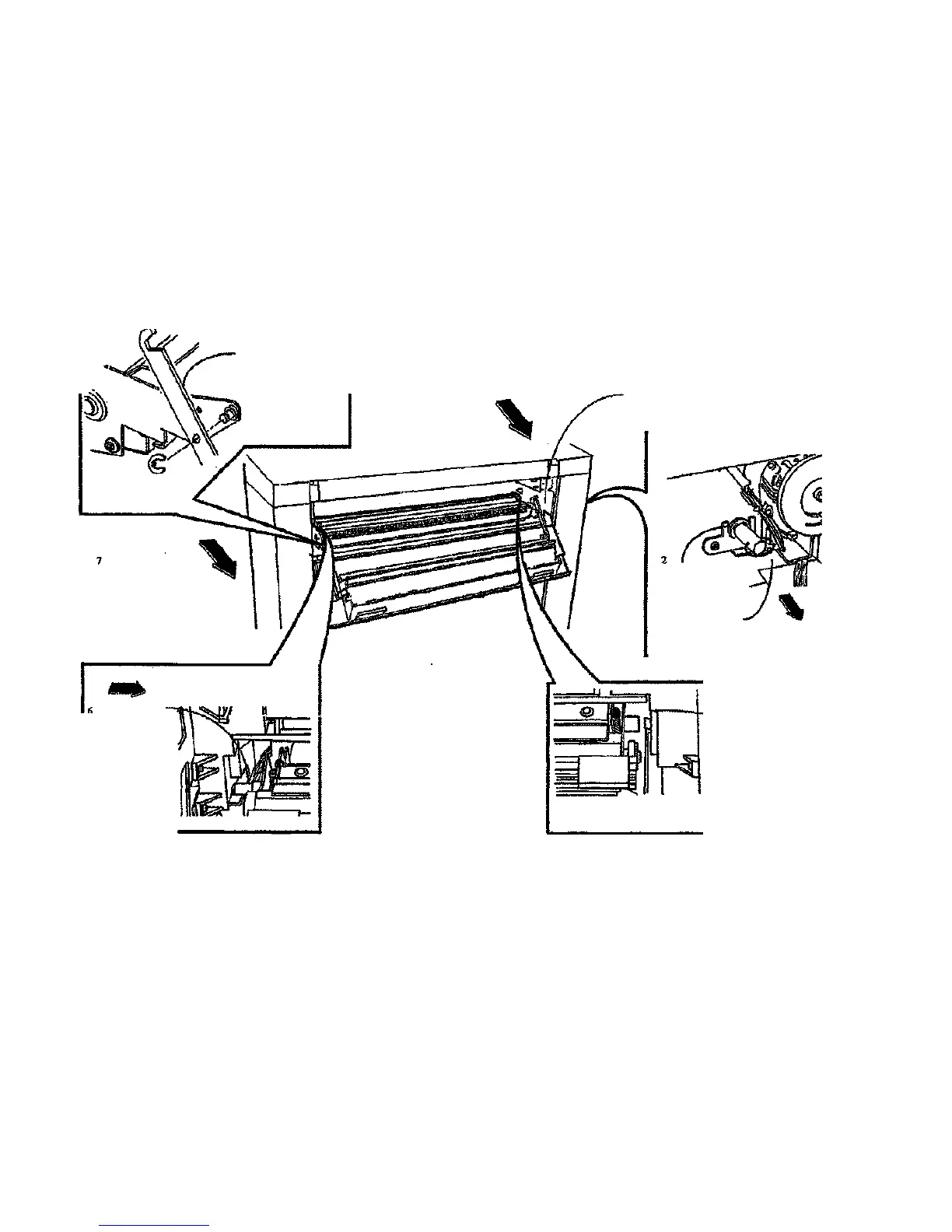

Figure 3. Removing the Media Transport Assembly
REP 8.1
1/98
4-18 8830
R2447B
