NOTE: Rotate the Developer Module away from the
Magnetic Roll in the following step.

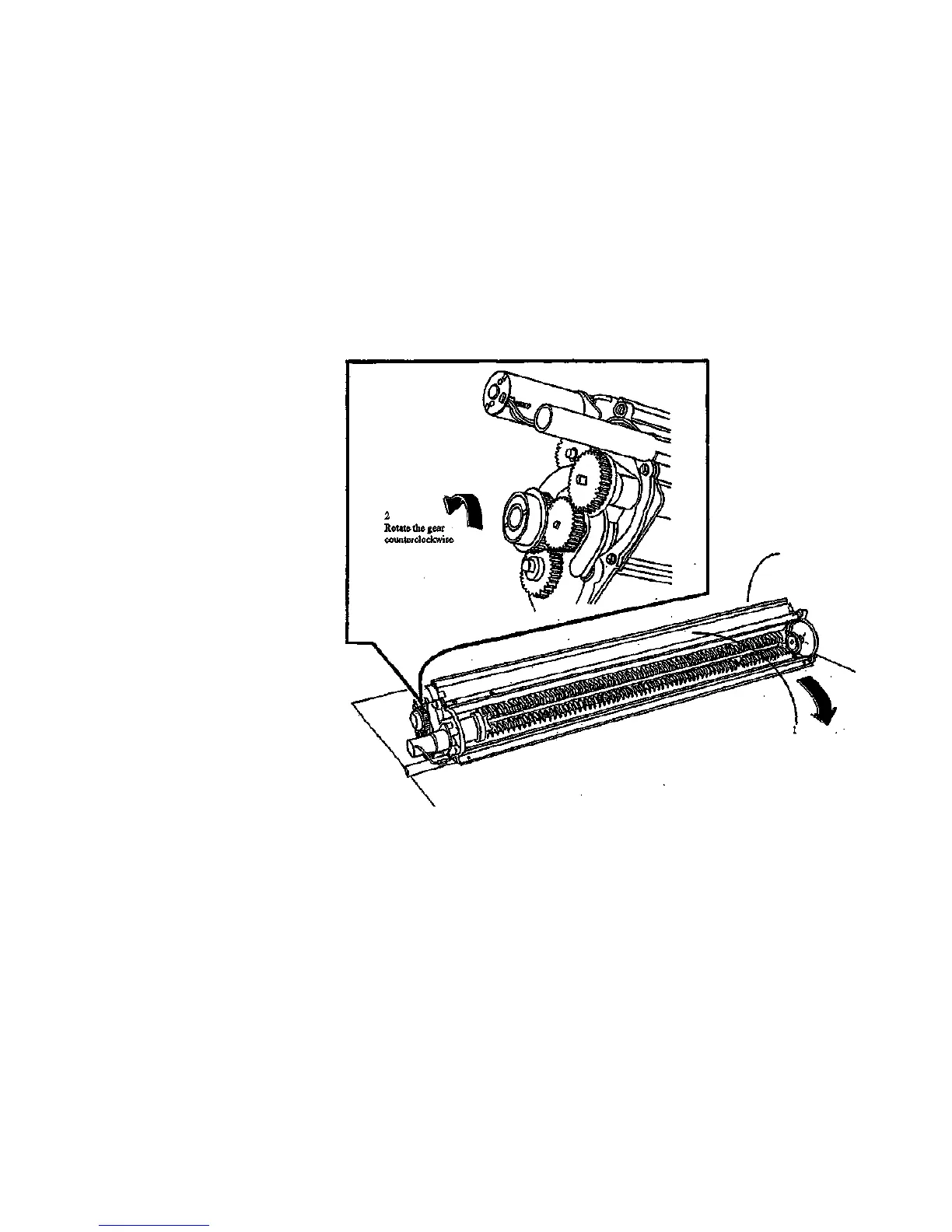

4. (Figure 2): Dump the Developer Material.
Magnetic Roll
Rotate the Developer
Module
R1780C
Figure 2. Dumping the Developer Material
8830
1/98
4-59
REP 9.7
