CAUTION
Do not rotate the Auger Gears individually more
than the slight amount required for removal or to
mesh the teeth during reinstallation. If the factory
setting of the augers is changed during the
procedure, perform the adjustment procedure,
Augers (ADJ 9.6).
5. (Figure 3): Remove the Air Pressure Tubes.
6. Using a vacuum cleaner, clean the entire
Developer Module, Magnetic Roll, and Air
Pressure Tubes thoroughly.
CAUTION
Ensure that the entire length of the tube on the
Developer Module is clear of any developer.
7. Using a vacuum, cleaner, clean the housing where
the Air Pressure Tubes attach.
R1781B

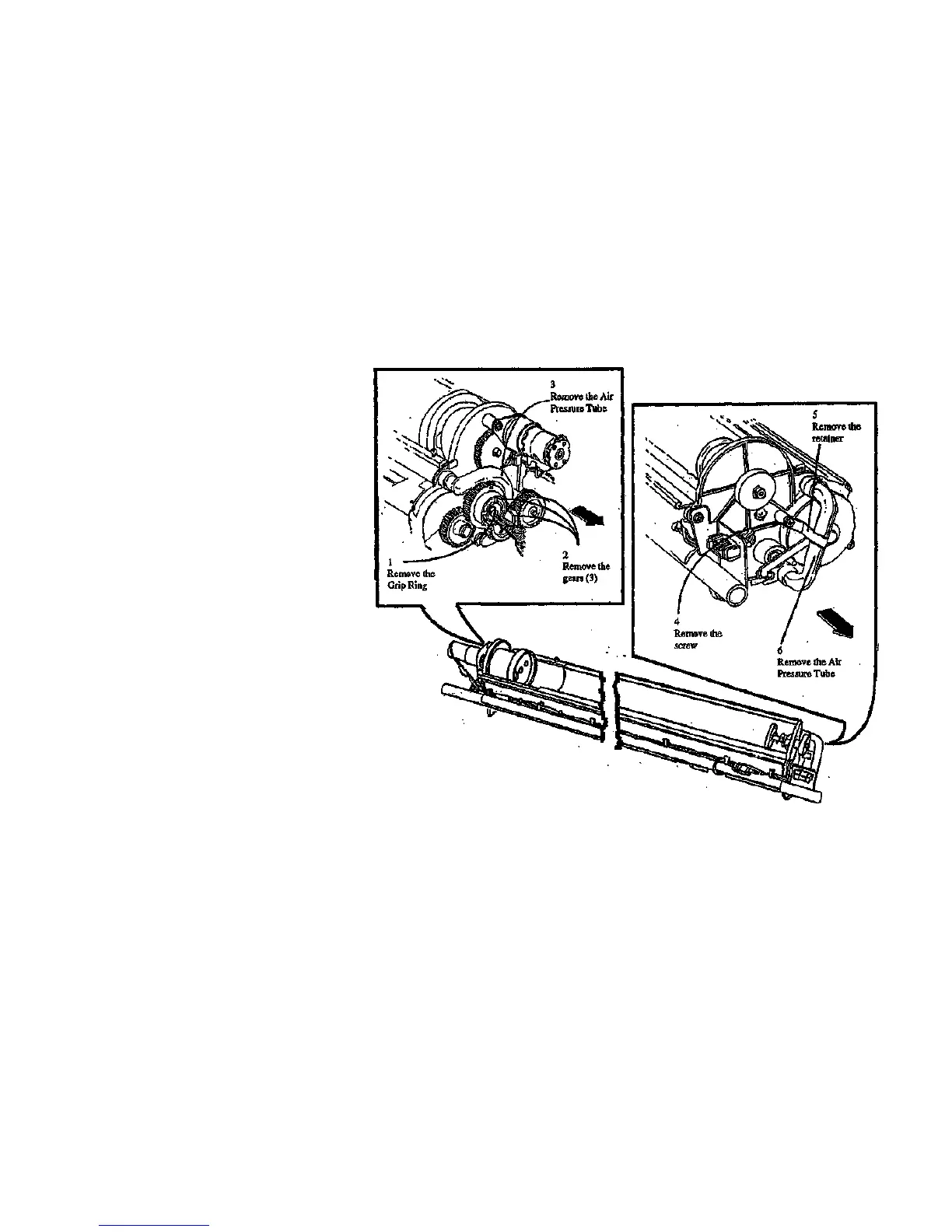

Figure 3. Removing the Air Pressure Tubes
REP 9.7
1/98
4-60
8830
