(Figure 2): Disconnect the Heat Rod and
remove the bracket (Left side).
Bracket
Remove the screws (2)
and the bracket
CAUTION
Wear gloves or wrap a sheet of paper around the
Heat Rod when handling the Heat Rod. Do not
touch the glass section of the Heat Rod Oil from
fingers can cause damage to the Heat Rod.
5. (Figure 3): Remove the Heat Rod.
Remove the
Heat Rod
Disconnect the
connector
Push the pin white
removing the Fuser
Hub Assembly

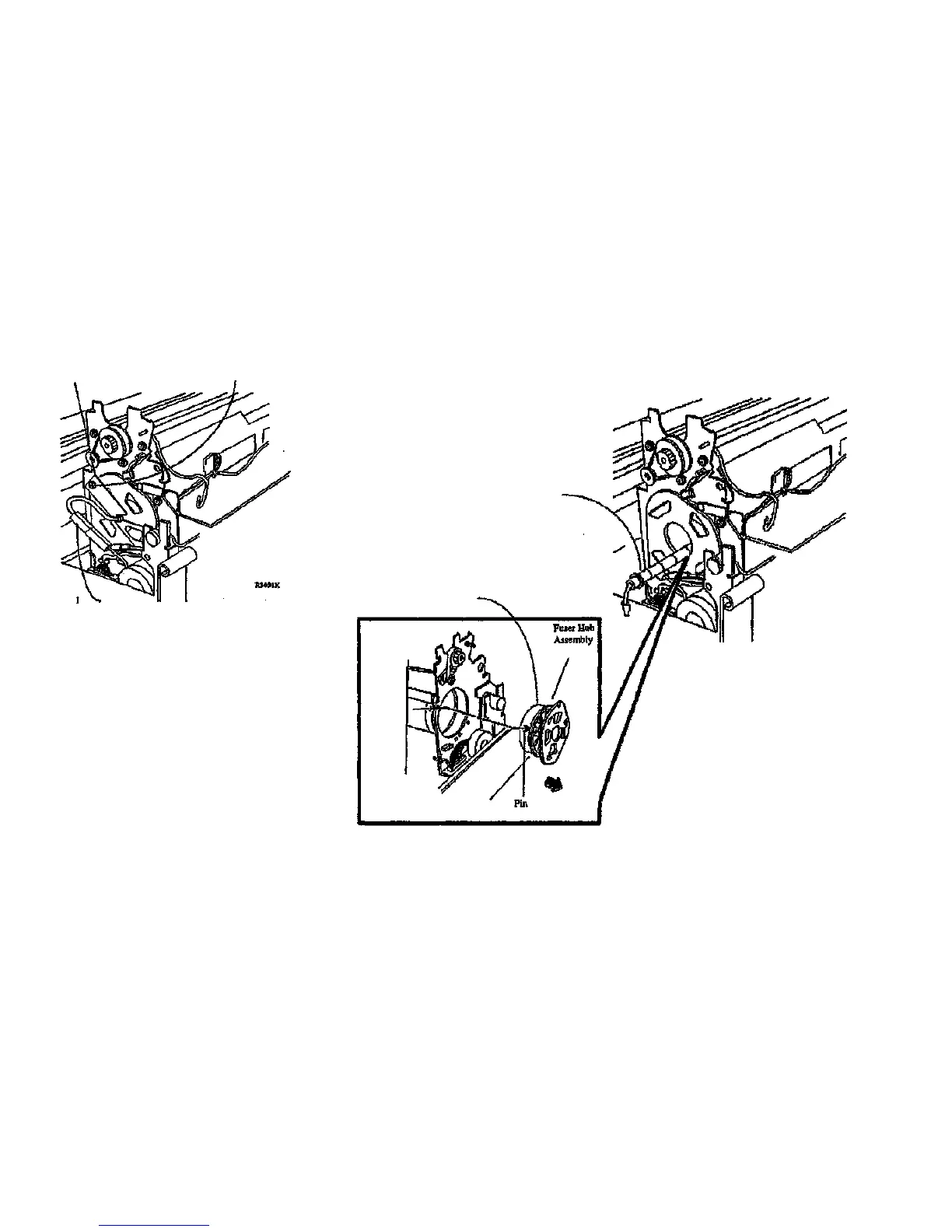

Figure 2. Removing the Bracket (Left
side)
R3032K
Figure 3. Removing the Heat Rod and Fuser Hub Assembly
REP 10.1
1/98
4-84
