Replacement
CAUTION
Wear gloves or wrap a sheet of paper around the
Heat Rod when handling the Heat Rod. Do not
touch the glass section of the Heat Rod. Oil from
fingers can cause damage to the Heat Rod.
.1. (Figure 4): Reinstall the Heat Rod.
NOTE: Do not remove the connectors from the
wires on the ends of the Heat Rod.
a. Insert the red connector into the Heat
Roll.
b. While looking into the roll, push the red
connector through the hole in the Fuser
Drive Gear at the opposite end.
c. If the previous step is too difficult, use the
rod that secures the Fabric Guide as a
tool. Insert that rod through the right side
of the Heat Roll, secure the red connector
to it, and pull the Heat Rod through the
Heat Roll.
Straighten the wire at the red
connector end (as straight as
possible)
Reinstall the Hub Assembly
with the flat sides positioned
as shown

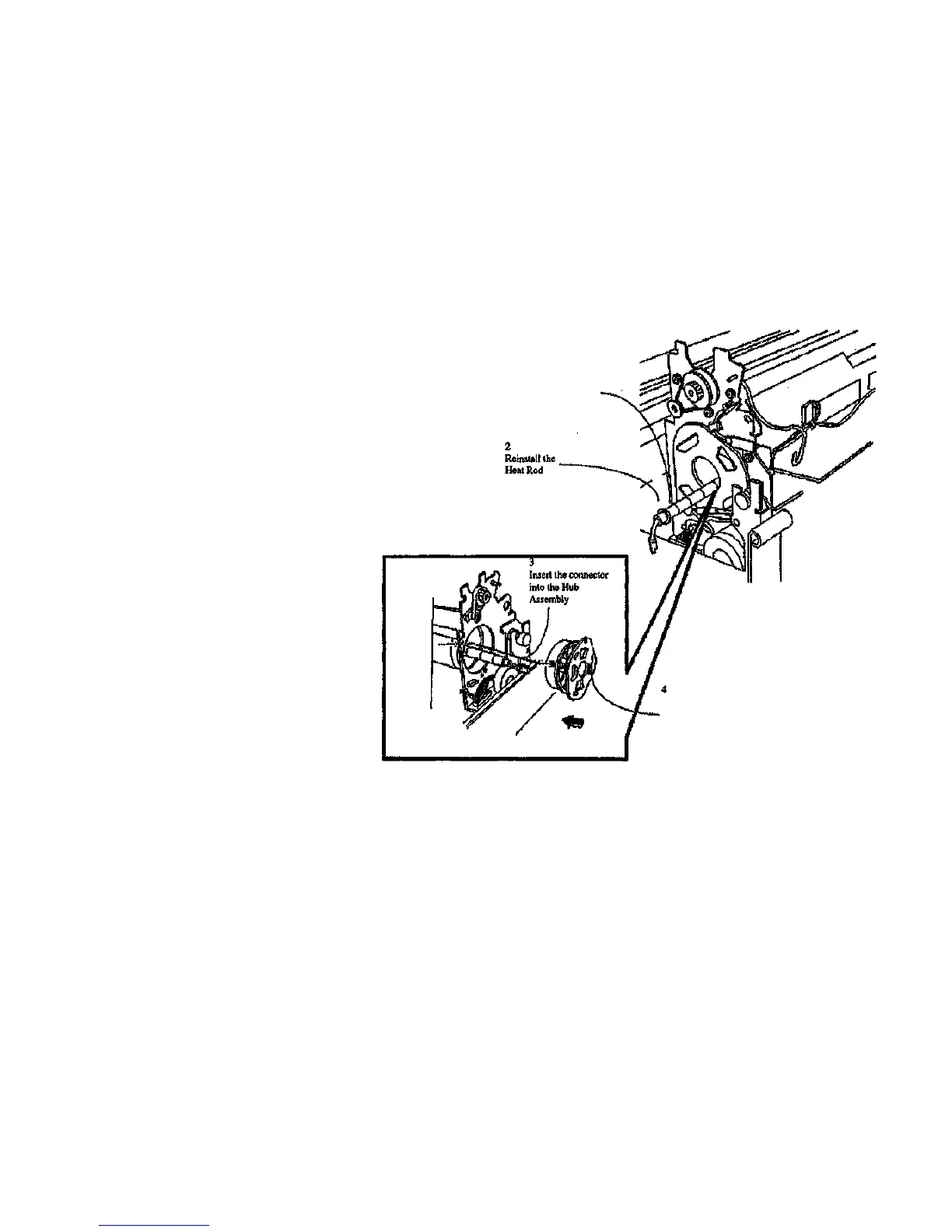

Figure 4. Reinstalling the Heat Rod
8830
1/98
4-85
REP 10.1
