Xerox 8830 Service Manual

2. (Figure 5): Reinstall the bracket (Left side).
2
Reinstall the screws
and the bracket
Connect the
connector

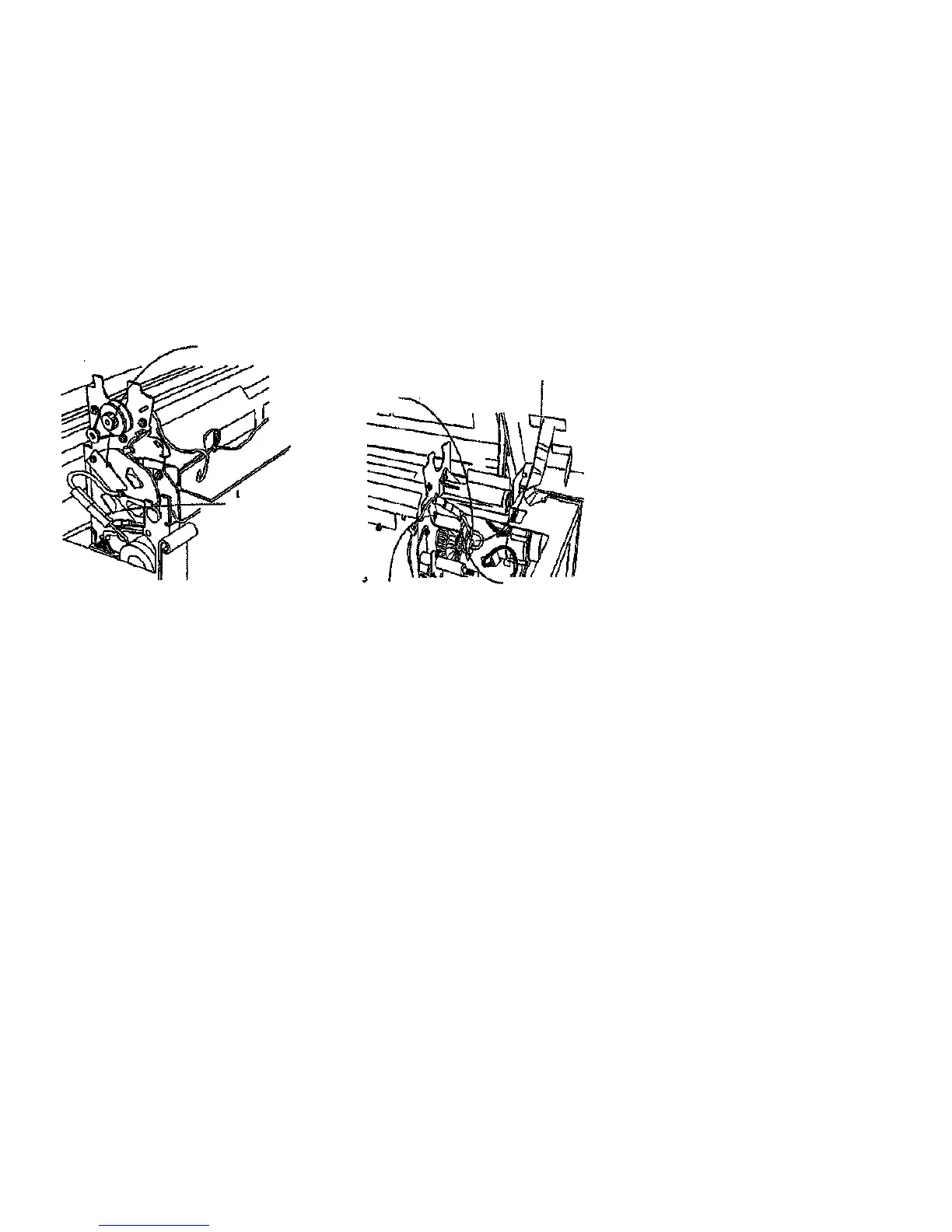

Figure 5. Reinstalling the Bracket (Left
side)
3. (Figure 6): Reinstall the grommet and the
bracket (Right side).
4. Ensure that the Thermistor Pad is clean.
Reinstall the bracket on
to the grommet
Reinstall the grommet
onto the Heat Rod wire
Reinstall the screw and 4
the bracket Connect the
connector and put the
wire into the clamp
Figure 6. Reinstalling the Bracket
(Right side)
REP 10.1
1/98
4-86
8830
