Adjustment

WARNING

Switch off the Main Power Switch. Disconnect the

Power Cord.

1. Remove the Transfer / Detack Corotron (REP

9.9).

2. Remove the Developer Module (REP 9.5).

3. Remove the white Toner Shield.

4. (Figure 2): Position the Lower Turnaround

Baffle.

5. Close the Media Transport Cover.

Push down the Lower Turnaround

Baffle, front and rear

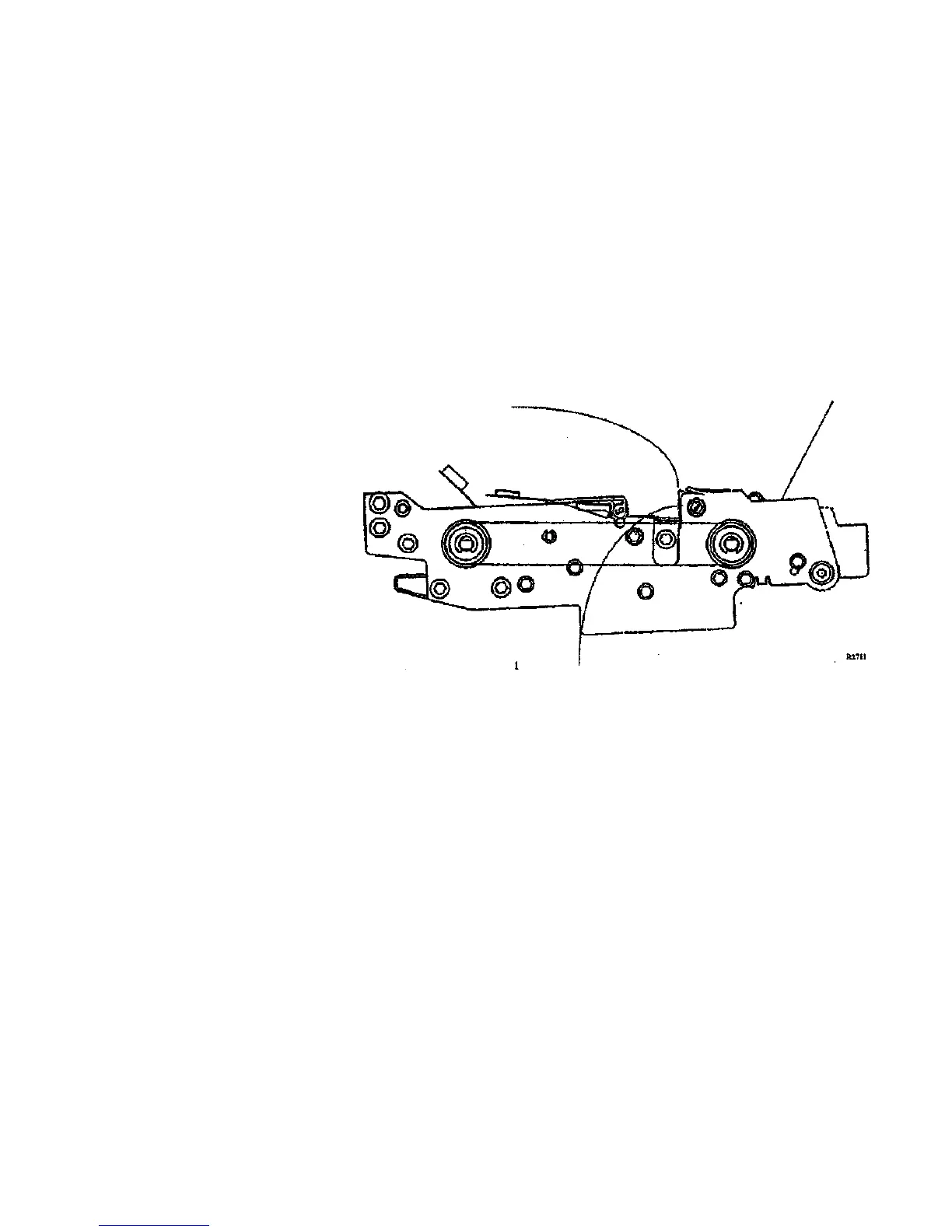

The view is of the Media Transport as

seen at the front of the printer.

Media Transport

Loosen the two Turnaround

Baffle retaining screws, front

and rear

Figure 2. Positioning the Lower Turnaround Baffle

ADJ 8.4

1/98

4-98

8830
