Xerox 8830 Service Manual

NOTE: The position of the Lower Turnaround
Baffle determines the position of the Upper
Turnaround Baffle, When the position of the
Lower Turnaround Baffle is correctly set, the
Upper Turnaround Baffle is correctly positioned,
6. Cut two strips of 0.030 inch (coral) shimstock
0.75 inches (20 mm) wide.
7. (Figure 3): Adjust the Media Transport to
Drum spacing to 0.030 ± 0.005 inch (0.76 ±
0.1 mm).
8. Reinstall the Transfer / Detack Corotron. Push
the corotron down and in the direction of the
Developer Module before tightening the
securing screw.
1
Place the shims into the
notches of the Turnaround
Baffle, one on each side
Shim
Ensure that the shims are
positioned between the Lower
Baffle and the Drum
Media
Transport
Retaining
screws (2)
Use a screwdriver to push the
Turnaround Baffle fully against the
shims and tighten the retaining
screws (front and rear)
The view is of the Media
Transport as seen at the
rear of the printer.
R2712

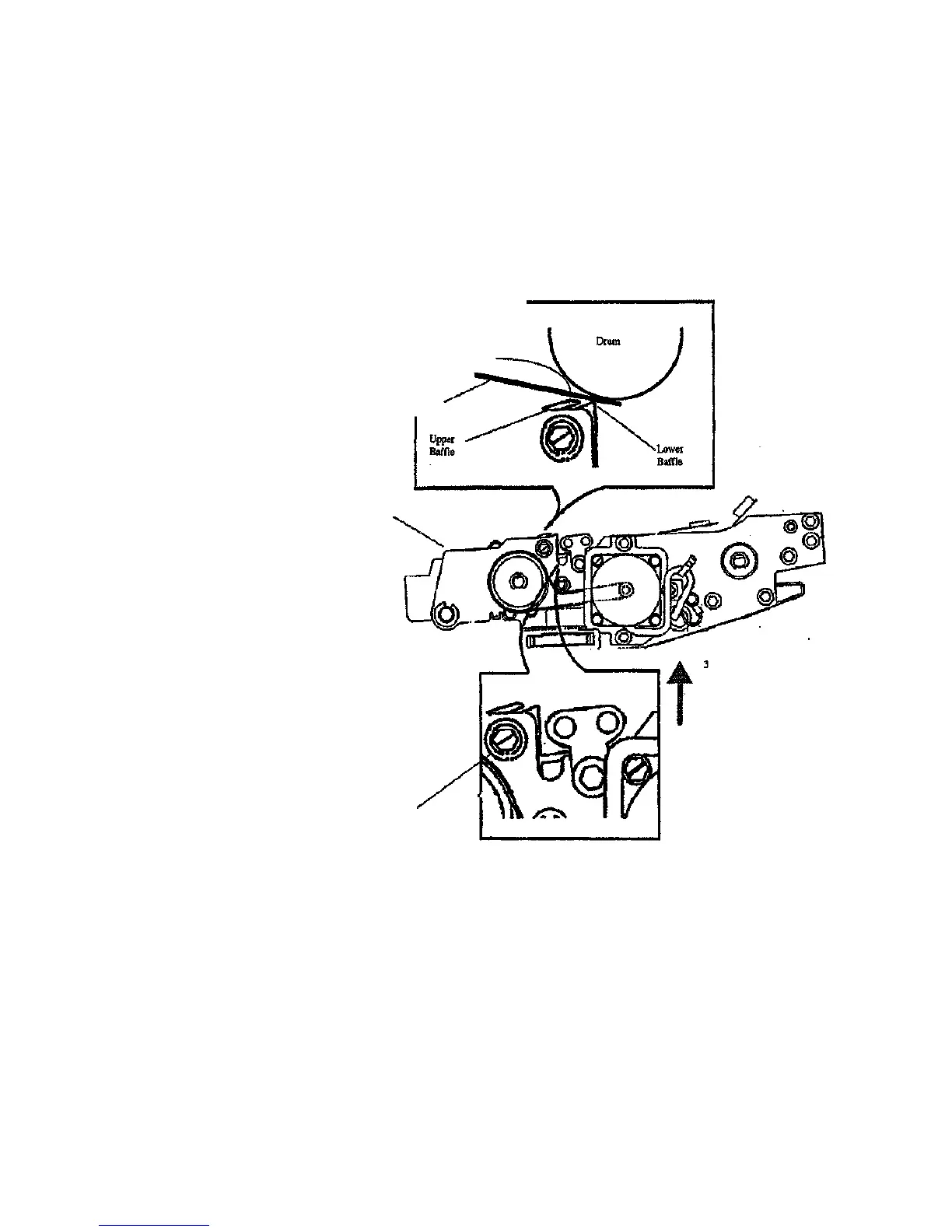

Figure 3. Adjusting the Media Transport to Drum Spacing
8830
1/98
4-99
ADJ 8.4
