Xerox ColorQube 9301 Service Manual

February 2013
4-253
ColorQube® 9303 Family
REP 62.7
Repairs/Adjustments

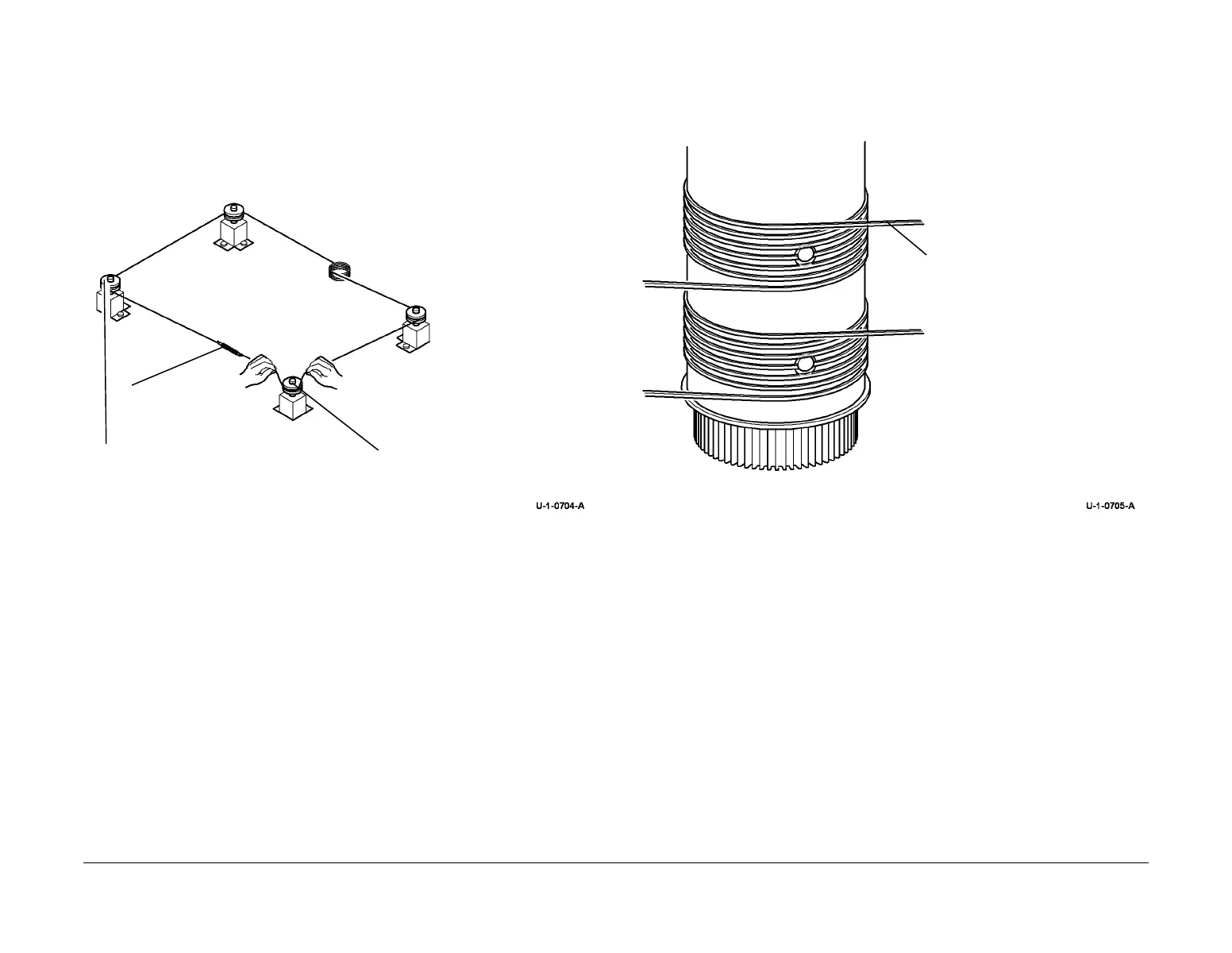

5. Figure 5. Install the lower scan cable.
Figure 5 Installation of the lower scan cable
6. Figure 6. Prepare to install the upper scan cable.
Figure 6 Installation of the upper scan cable
1
Attach the spring to
the cable.
3
Install the cable over the front,
right pulley.
2
Install the cable around
the front, left pulley.
1
Wind three turns above the
anchor point.
