Xerox ColorQube 9301 Service Manual

February 2013
4-290
ColorQube® 9303 Family
REP 81.3
Repairs/Adjustments

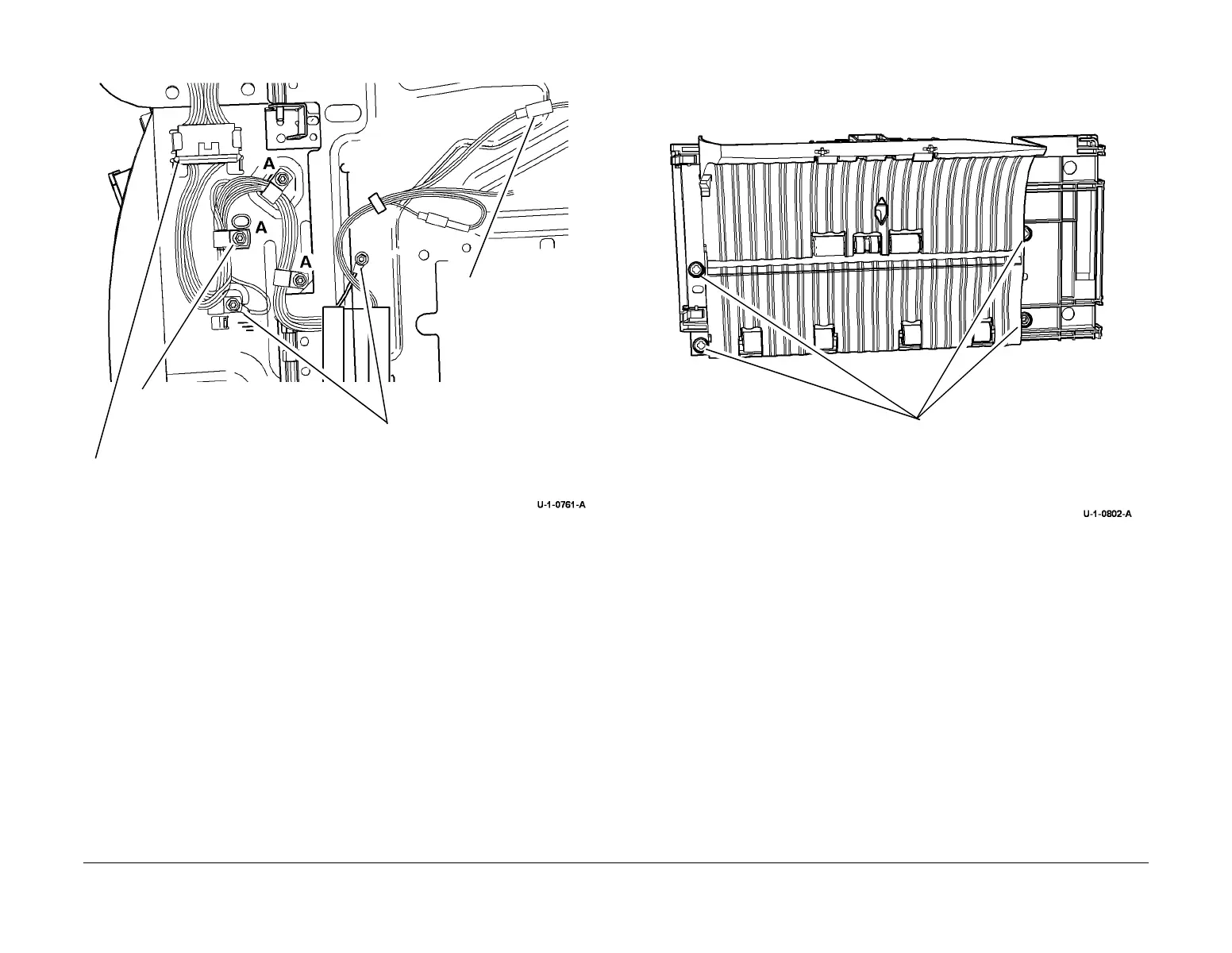

3. Disconnect the PJ’s, harness clips and harness to nip D solenoid, Figure 2.
Figure 2 Disconnect harness
4. Release the bypass module, Figure 3.
Figure 3 Bypass module
4
Disconnect the nip D
solenoid connector.
3
Disconnect 2 ground
leads.
2
Disconnect harness
1
Remove 3 harness clamp
screws marked A.
1
Remove 4 screws.
