4-302
ColorQube® 9303 Family
REP 82.4
Repairs/Adjustments

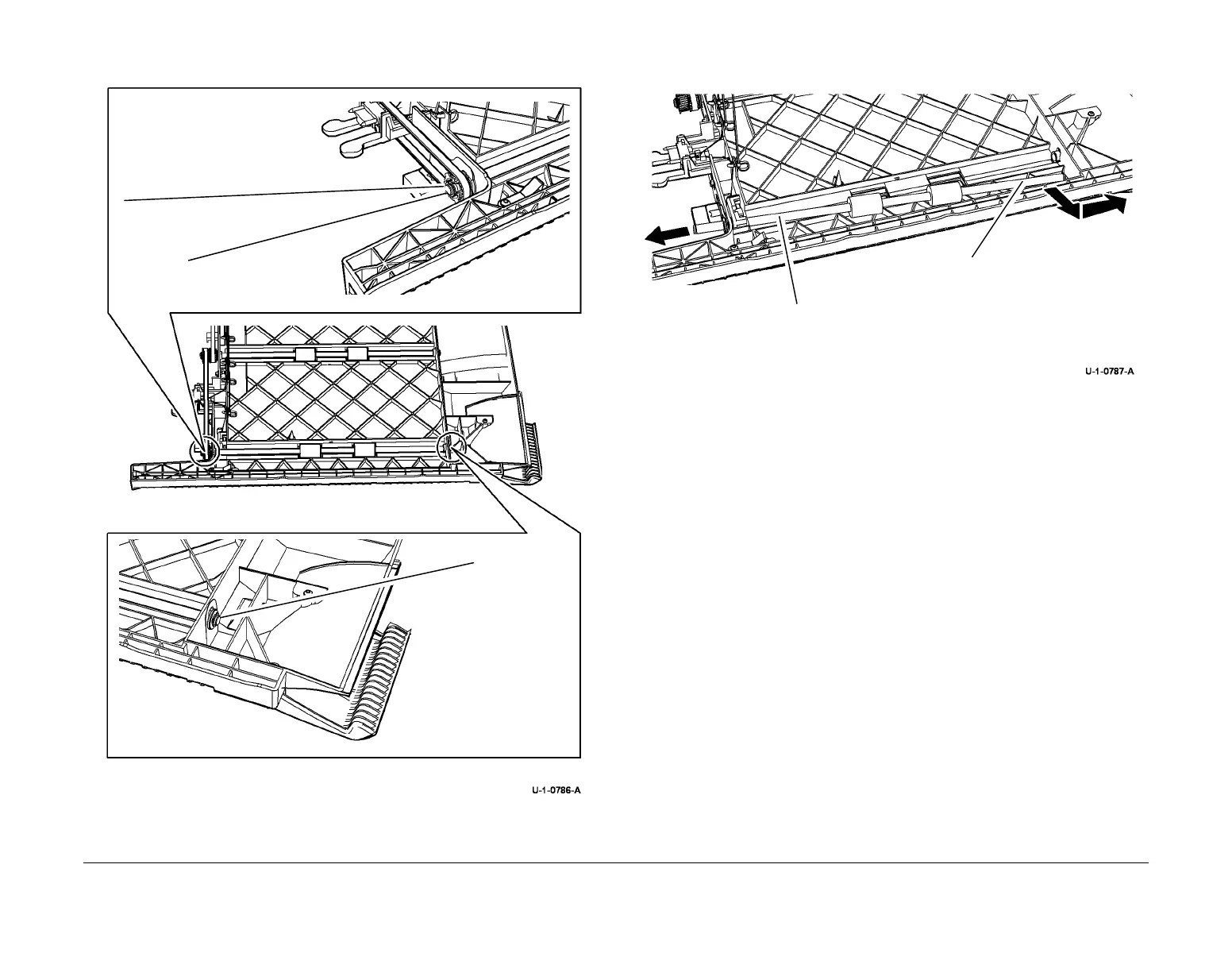

2. Prepare to remove the transport rolls, Figure 1.
Figure 1 Preparation
3. Remove the takeaway rolls, Figure 2.
Figure 2 Remove the transport rolls
Replacement
Replacement is the reverse of the removal procedure.
1
Remove the E-clip.
2
Remove the bearing,
drive gear and belt.
1
Remove the E-
clip and bearing.
1
Move the transport
rolls to the rear.
2
Remove the transport rolls
from the tray 3 horizontal
transport.
