Xerox ColorQube 9301 Service Manual

February 2013
4-331
ColorQube® 9303 Family
REP 91.7
Repairs/Adjustments

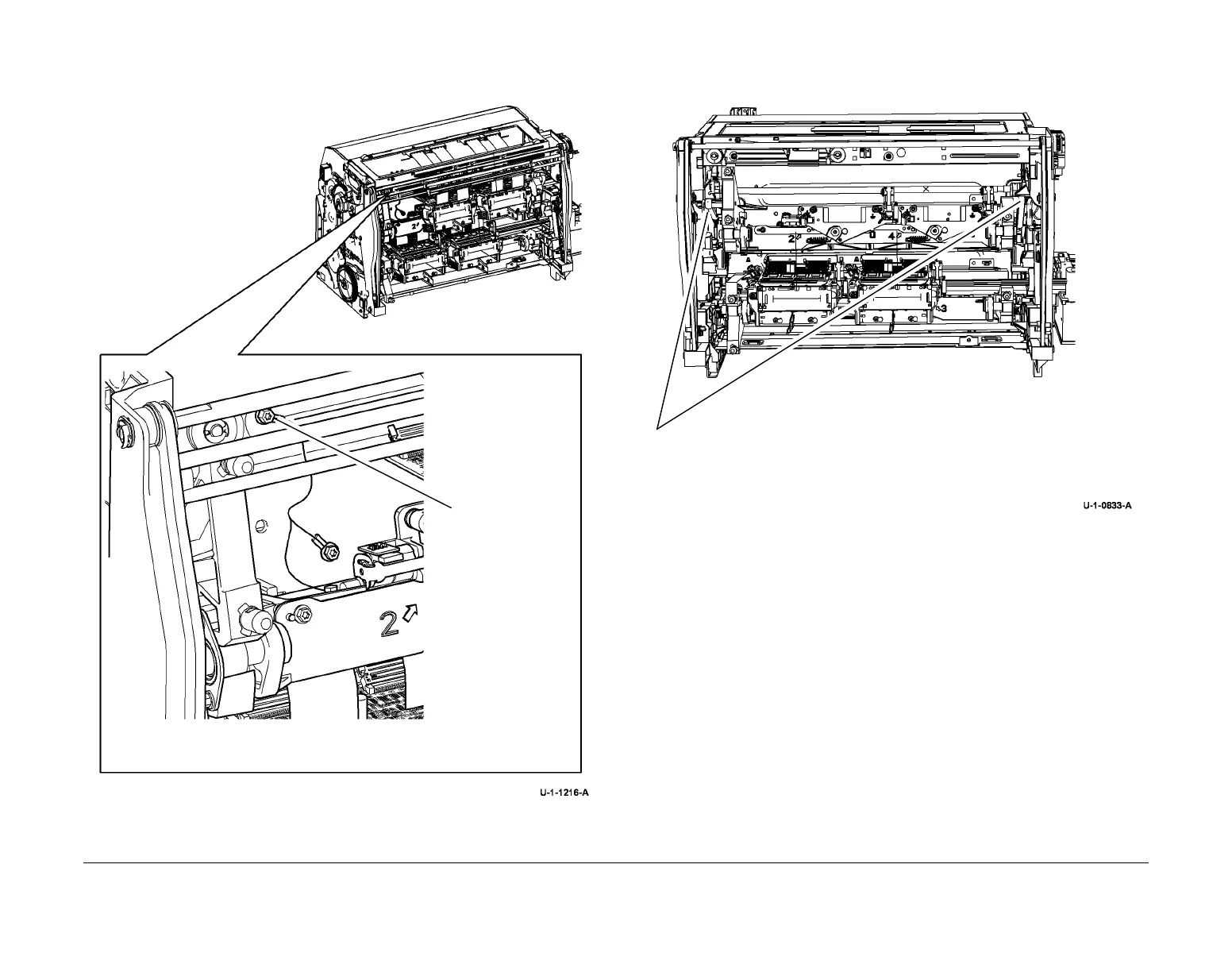

5. Disconnect the ground lead, Figure 3.
Figure 3 Disconnect ground lead
6. Remove the marking unit upper carriage, Figure 4.
Figure 4 Upper carriage removal
1
Remove the screw to
release the ground
lead.
1
Remove the front and rear
e-clip and link.
2
Remove the carriage by lifting off
the front and rear pivot.
