ColorQube® 9303 Family
ADJ 4.1
Repairs/Adjustments
LCSS Tamper Assembly
1. Remove the LCSS top cover, REP 12.1-110.
2. Figure 1, use plastislip grease, PL 26.10 Item 4, to lubricate the tamper assembly.

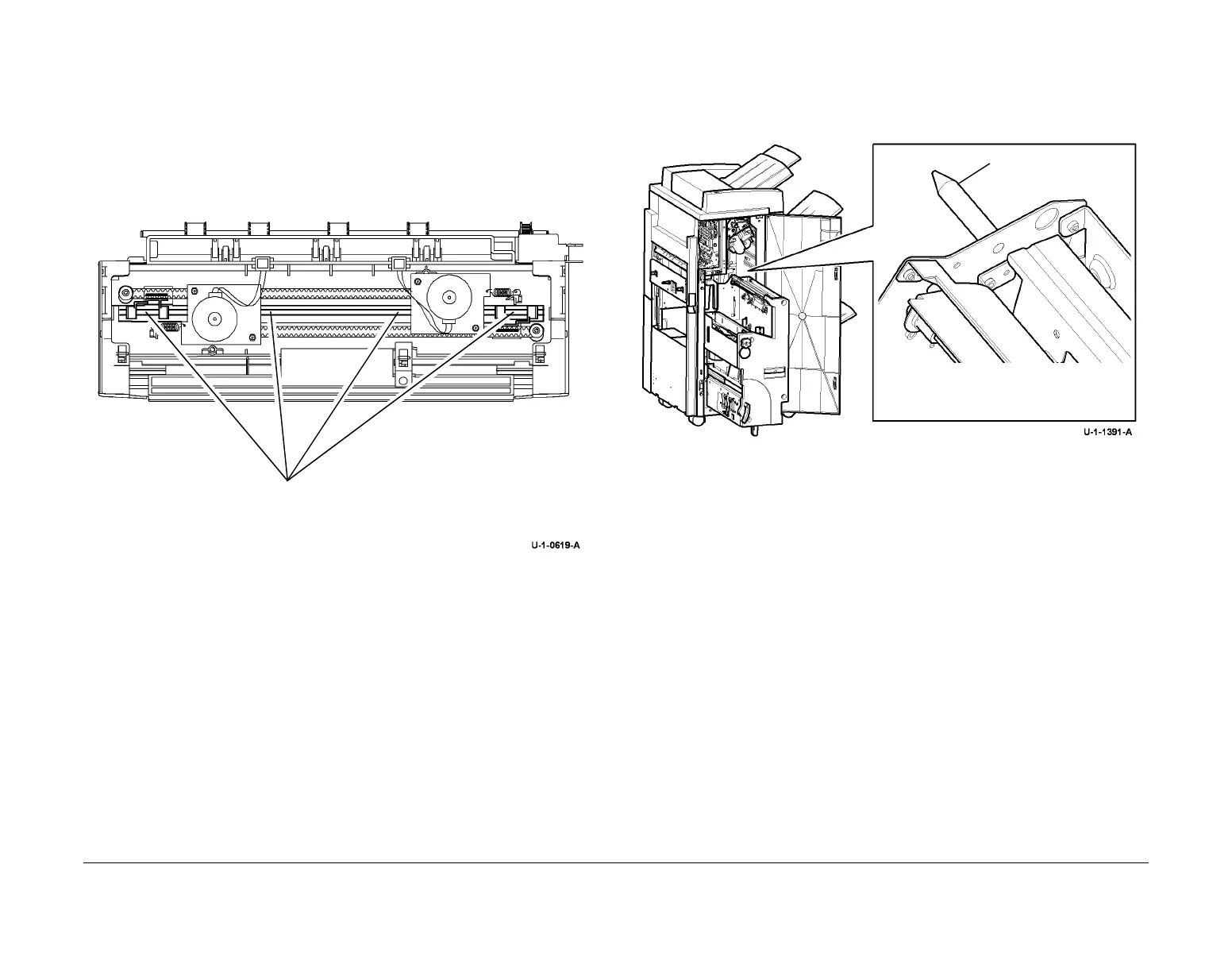

Figure 1 Lower vertical slides
HVF BM Support Pin
1. Open the BM front door.
2. Fully pull out the BM unit.
3. Figure 2, use plastislip grease, PL 26.10 Item 4, to lubricate the BM support pin.
Figure 2 Support pin lubrication
4. Fully push in the BM unit and close the HVF BM front door.
Apply grease to the
shaft
Apply grease to the pin
