ColorQube® 9303 Family
GP 29
General Procedures/Information
Rear Component Location

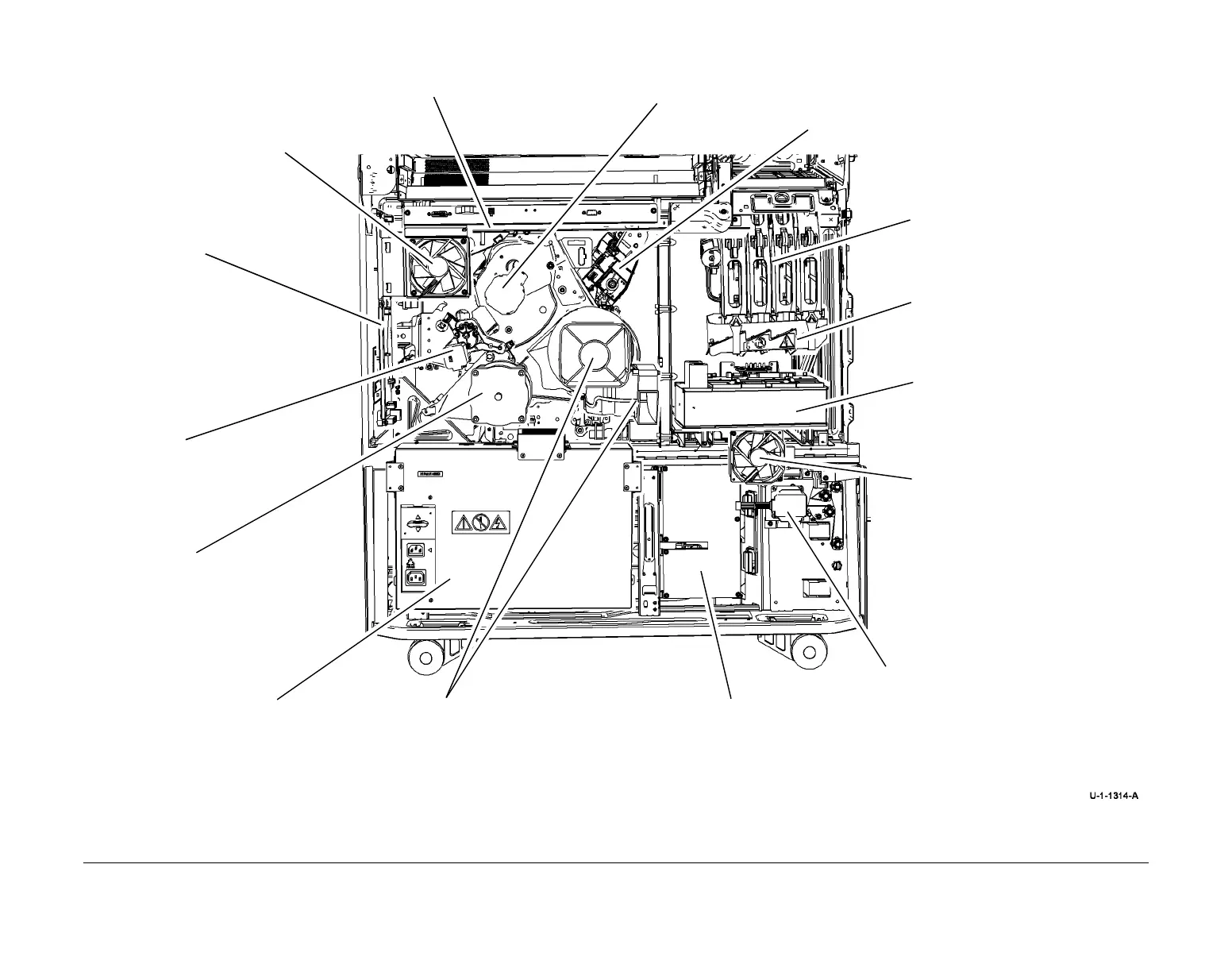

Figure 2 Rear component location
Power supply
3TM PWB
3TM Motor
Enclosure fan (MOT42-063)
Motor M4
Rear transfix motor
Registration / Preheat assembly
Drum drive motor
Drum driver PWB
Media path driver PWB
Marking unit cooling fan
Reservoir
Ink melt plates
Ink loader
Drum and abatement fans
