February 2013
3-27
ColorQube® 9303 Family
IQ 5
Image Quality
YN
Install new printheads as necessary, PL 91.20 Item 2 or PL 91.25 Item 2.
Re-define the image quality defect, refer to IQ 1 Image Quality Entry RAP.
Perform SCP 5 Final Actions.
Perform SCP 5 Final Actions.
Y-Dot Error Checkout
Refer to Figure 5.

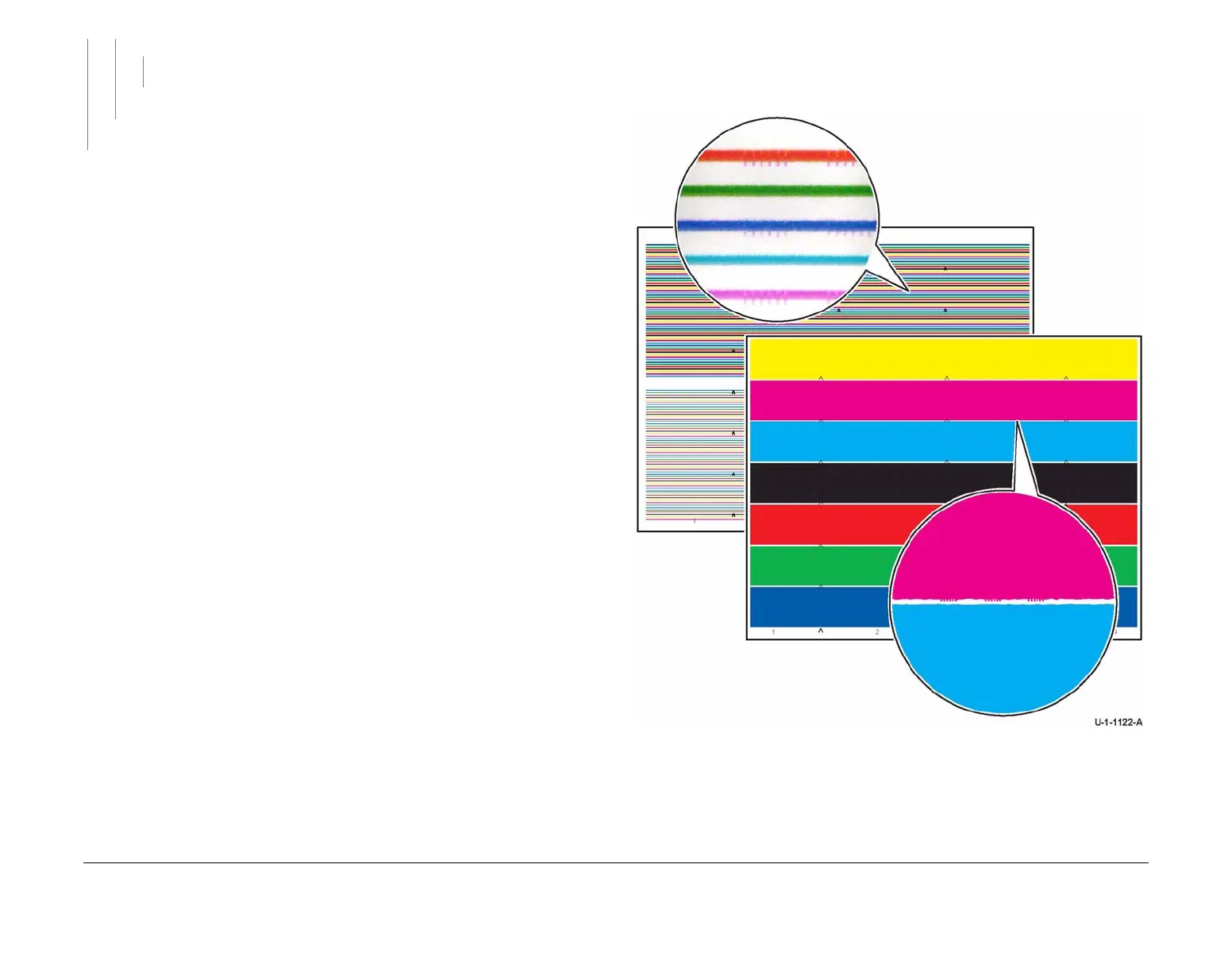

Figure 5 Abnormal Y-dot position
Procedure
Perform dC967 Head to Drum Spacing Check. The head to drum spacing check is suc-
cessful.
A B
To Next Page
