Xerox ColorQube 9301 Service Manual

February 2013
4-17
ColorQube® 9303 Family
REP 1.9
Repairs/Adjustments

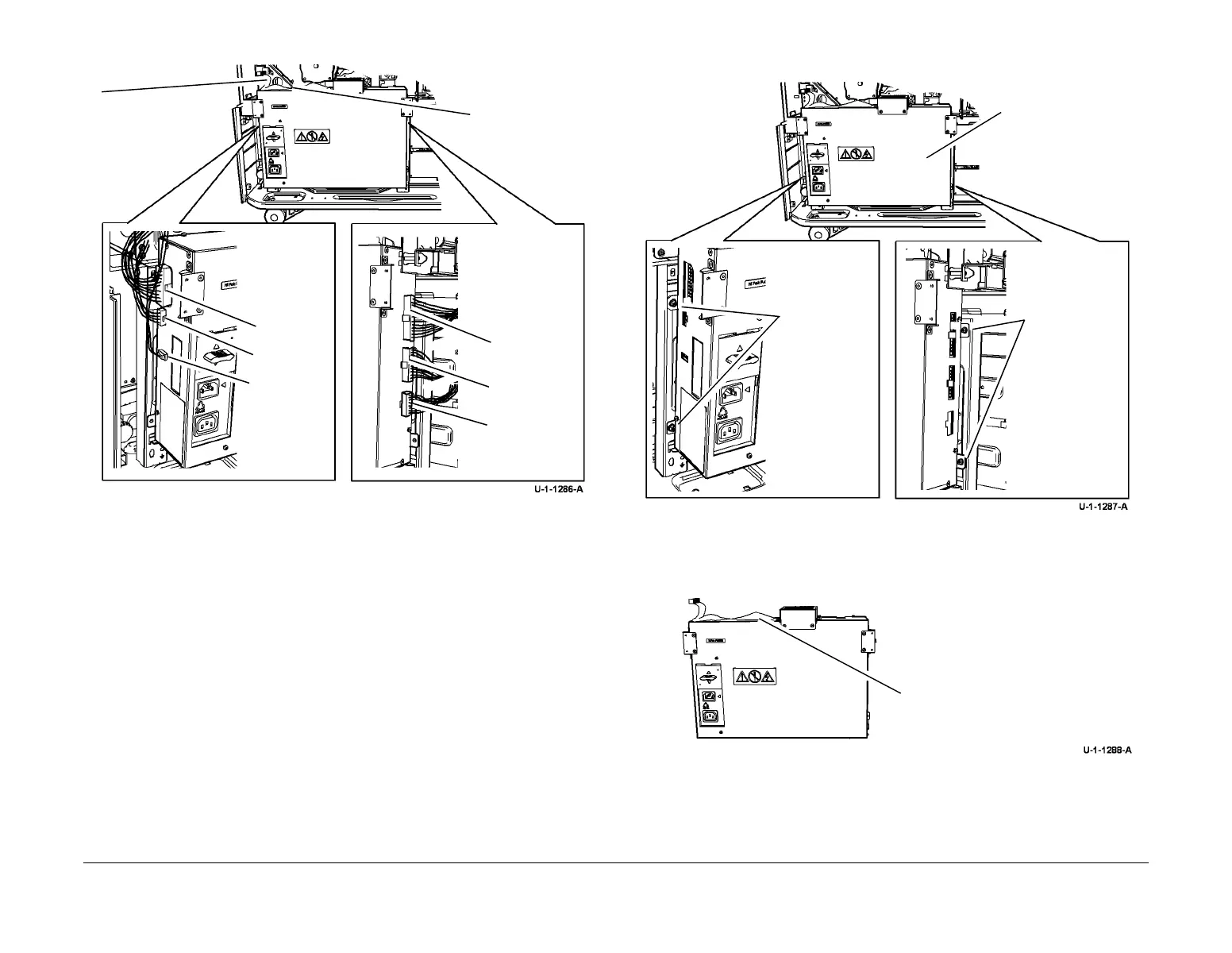

Figure 1 Disconnect harnesses
6. Remove the power supply unit, Figure 2.
Figure 2 Remove the power supply unit
7. Remove the ribbon cable, Figure 3.
Figure 3 Remove the ribbon cable
1
D
isconnect the
r
ibbon cable
f
rom the drum
d
river PWB
2
Disconnect
J6AC
3
Disconnect
JDC3
JDC1
JDC4
4
Disconnect
J5AC
J4AC
J8AC
2
Remove 2
screws
1
Remove 2
screws
3
Lift and remove the
power supply unit
1
Disconnect JDC2 and
remove the ribbon cable
