Xerox ColorQube 9301

February 2013
4-19
ColorQube® 9303 Family
REP 1.9
Repairs/Adjustments
4. Install the power supply unit, Figure 6.

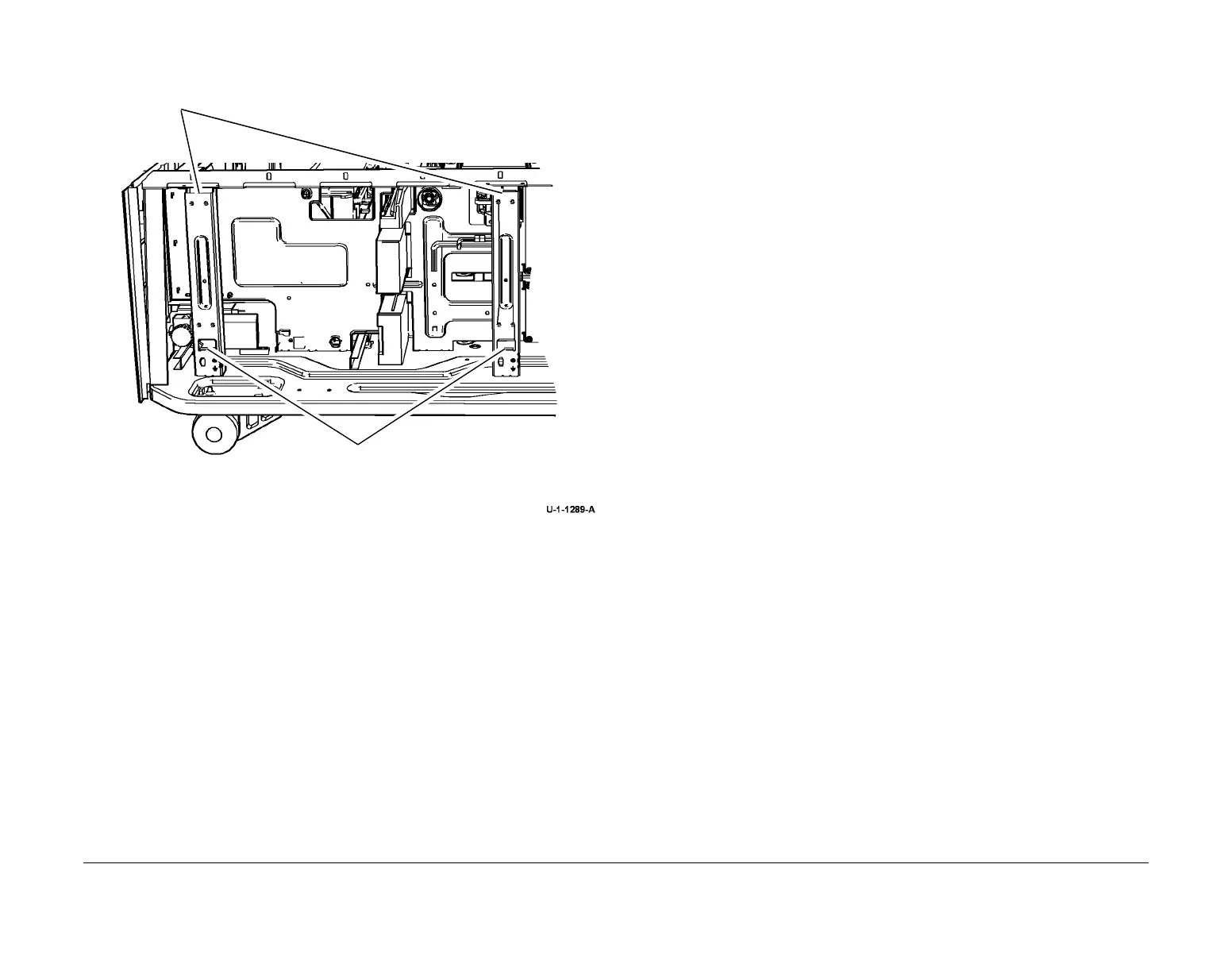

Figure 6 Install the power supply unit
5. Re-connect the connectors to the power supply unit and the ribbon cable to the drum
driver PWB, Figure 1.
1
Fit the lugs on the rear of the power supply unit over the support brackets
2
Rest the power supply
on the supports
3
Install the 4 fixing screws to
secure the power supply
