February 2013
4-66
ColorQube® 9303 Family
REP 10.3
Repairs/Adjustments
11. Remove the rear transfix linkage and gear, Figure 7.

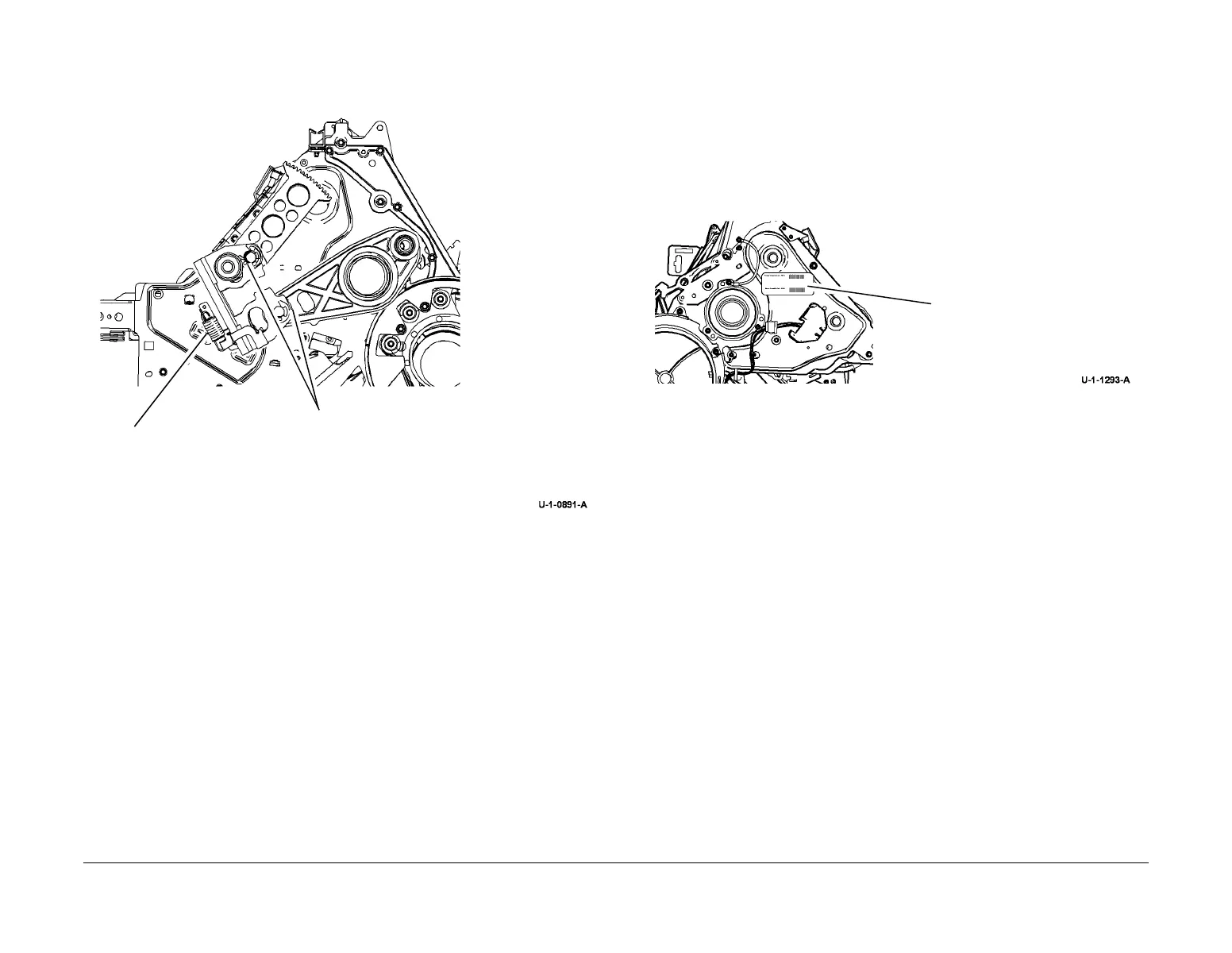

Figure 7 Rear transfix linkage removal
Replacement
1. Replacement is the reverse of the removal procedure.
NOTE: Before tightening the screws, Figure 5, it may be necessary to position the bushes
removed in Figure 4.
2. Ensure that the arm is in the correct position relative to the gear.
3. Ensure that the spring is re-installed.
4. Cross out the old calibration value from the calibration label on the front outer frame, PL
10.20 Item 19, Figure 8.
Figure 8 Calibration label
5. Write the calibration values of the new linkage on the calibration label.
6. Perform dC978 Transfix Calibration Values and load the correct values for the new link-
age.
2
Remove the rear transfix linkage
1
Remove the retract spring
Calibration label for front and
rear transfix calibration values
To Next Page
