Xerox ColorQube 9301 Service Manual

February 2013
4-76
ColorQube® 9303 Family
REP 10.11
Repairs/Adjustments
5. Lower the upper baffle, Figure 2.

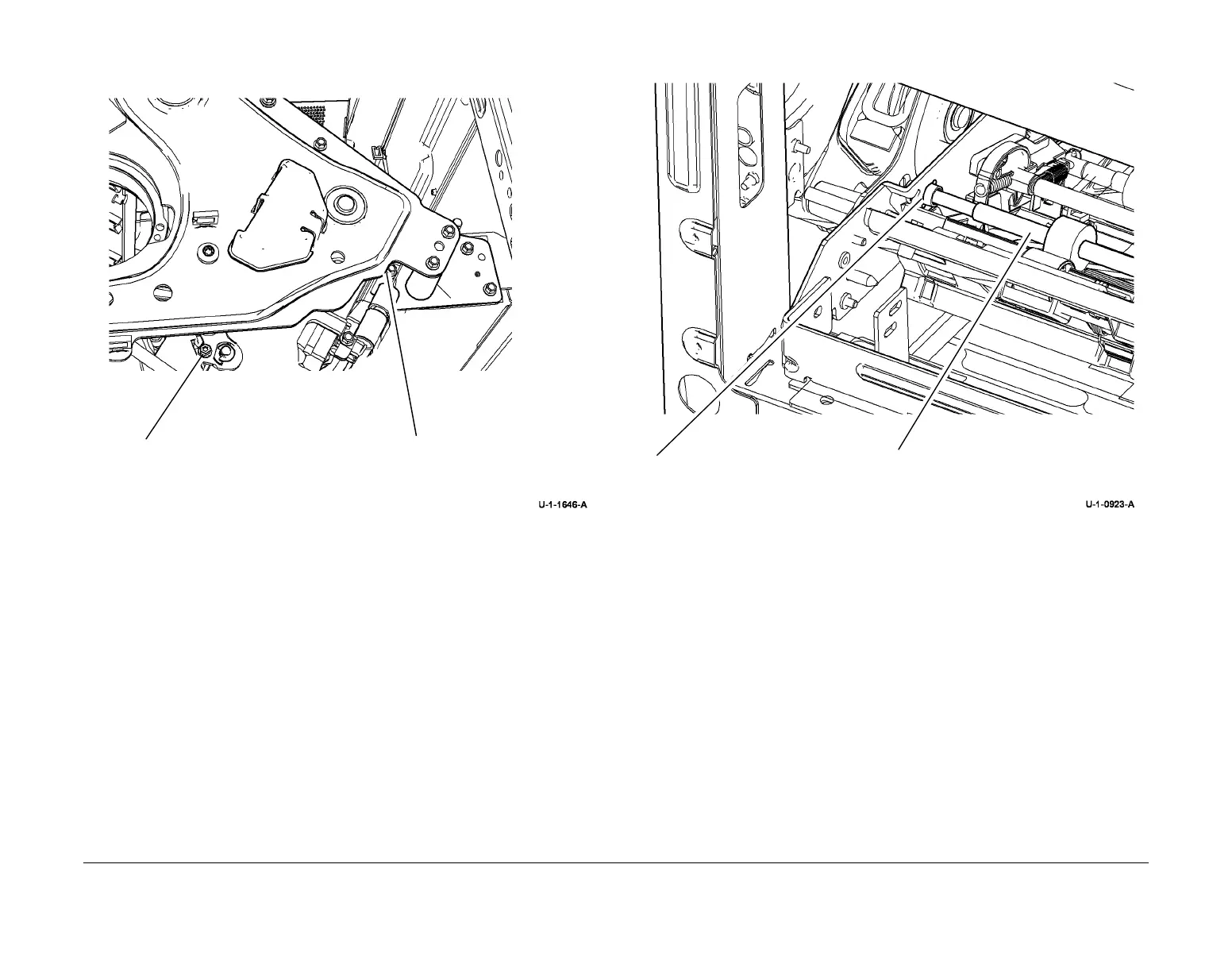

Figure 2 Lower the upper baffle
6. Remove the roller drive L, Figure 3.
Figure 3 Roller removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove screw
1
Loosen the screw by two
turns then lower the baffle.
1
Remove e-clip and bearing.
2
Remove roller drive L.
