February 2013
4-86
ColorQube® 9303 Family
REP 10.16
Repairs/Adjustments
4. Remove the exit sensor, Figure 3.

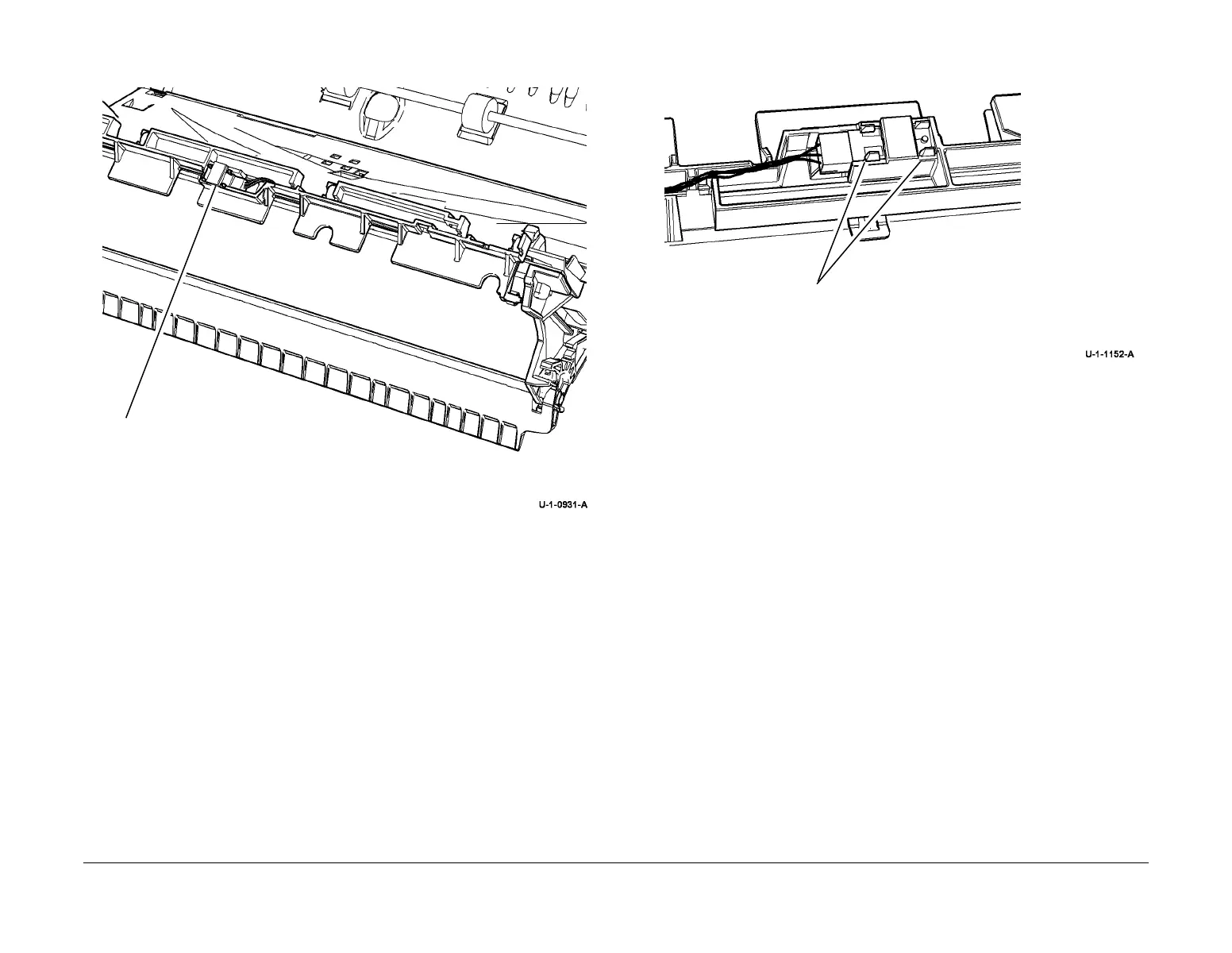

Figure 3 Sensor removal
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure that the lugs on the sensor are located correctly in the sensor holder, Figure 4.
Figure 4 Sensor location
1
Remove the exit sensor then
disconnect the harness.
1
Check the lugs secure the sensor in position
To Next Page
