Xerox ColorQube 9301

February 2013
4-145
ColorQube® 9303 Family
REP 12.18-171
Repairs/Adjustments
7. Figure 1, remove the BM crease blade motor assembly.

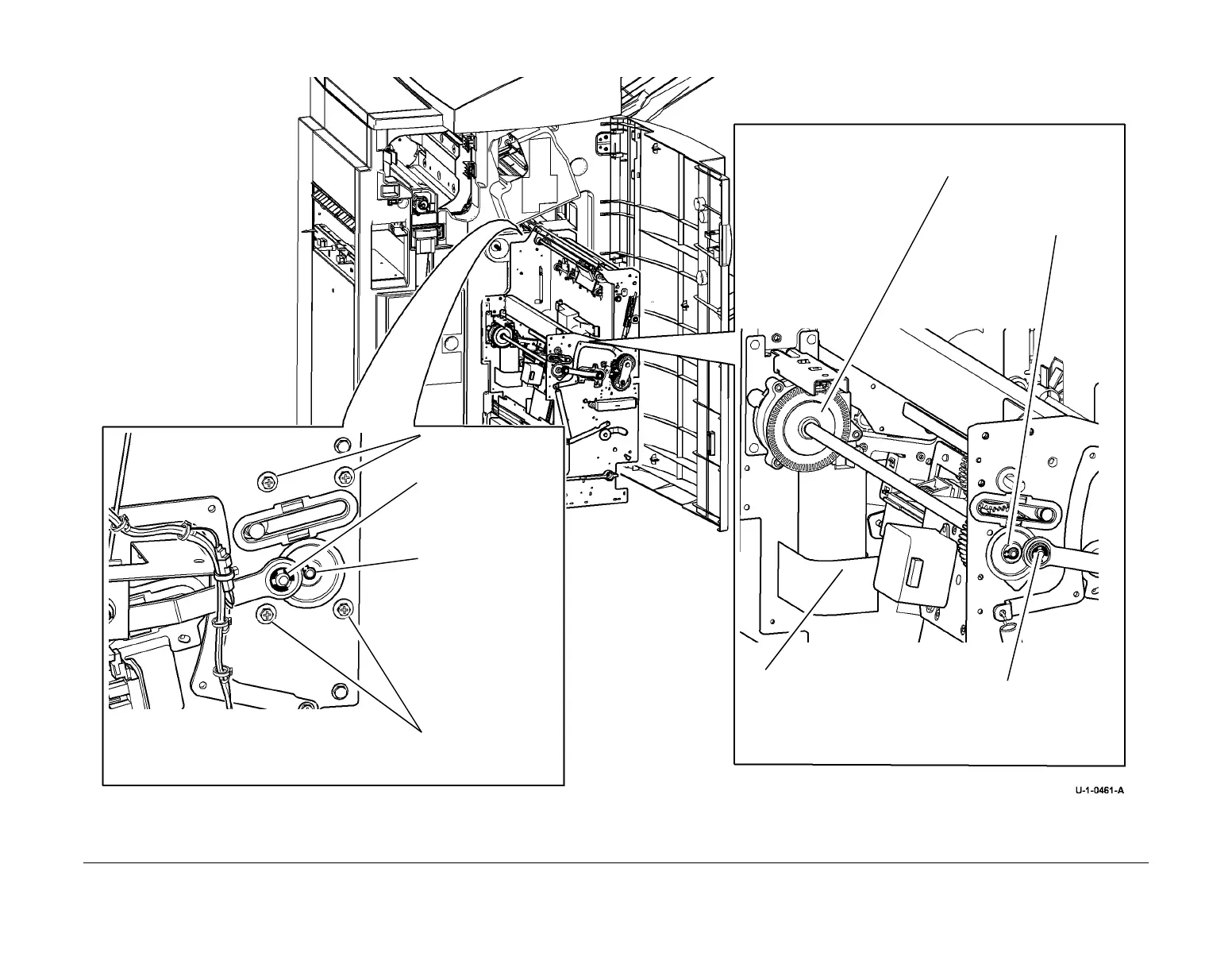

Figure 1 Removing the motor assembly
1
Remove 4 screws.
2
Remove the E-clip and
bearing, release the
connecting rod.
3
Remove the circlip, rear
crank and bearing.
6
Remove E-clip and
bearing, release the
connecting rod.
7
Remove
circlip, front
crank and
bearing.
8
Remove the motor
assembly from the
frame.
5
Disconnect the
motor harness.
4
Remove 4 screws.
