Xerox ColorQube 9301

February 2013
4-156
ColorQube® 9303 Family
REP 12.26-171
Repairs/Adjustments

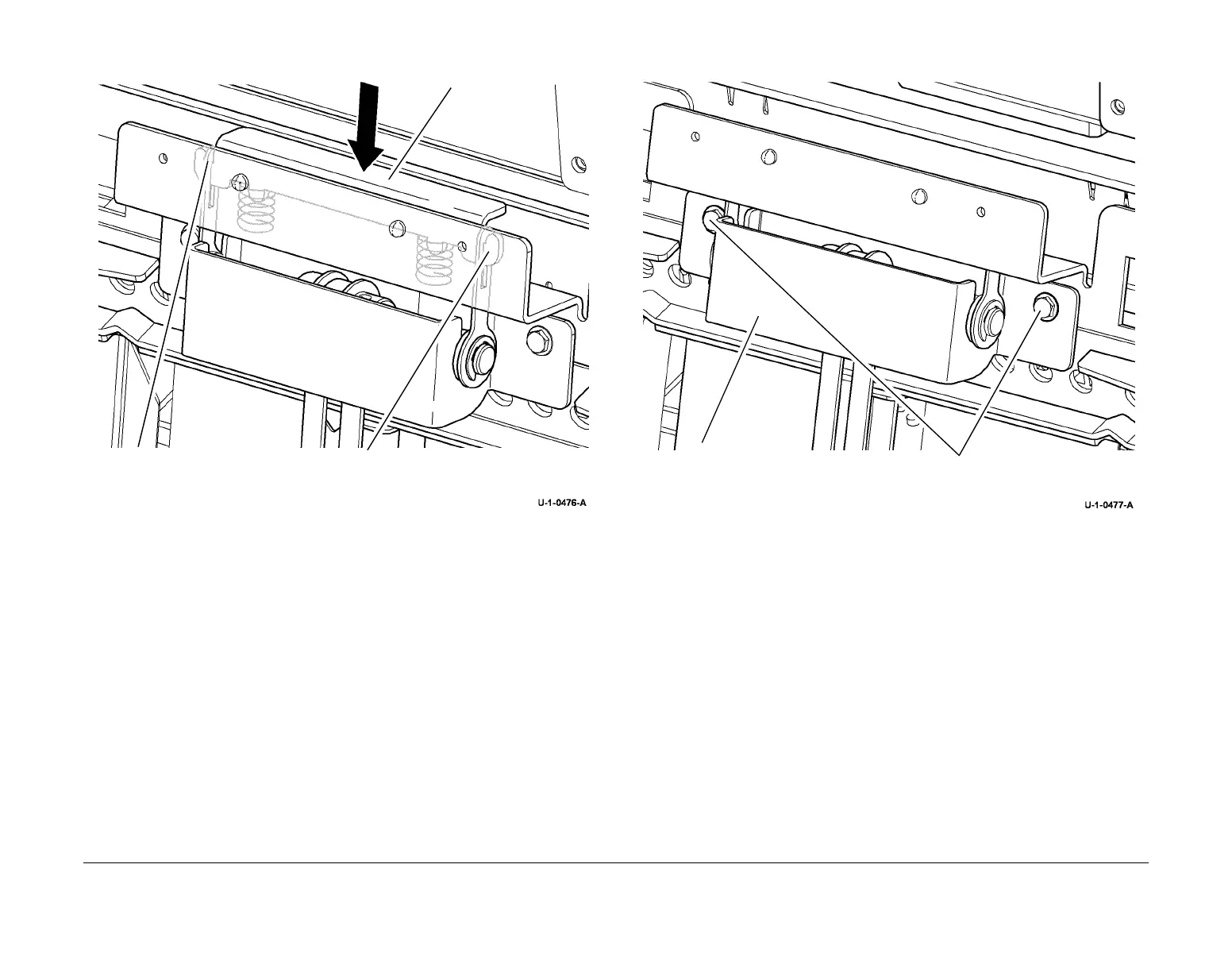

11. Figure 2, remove the backstop link.
Figure 2 Backstop link removal
12. Figure 3, remove the BM backstop idler bracket assembly.
Figure 3 Idler bracket assembly removal
1
Press down on the link and
release the front tensioner link.
2
Press down on the link and
release the rear tensioner
link.
3
Remove the link
and two springs.
1
Remove 2 screws.
2
Remove the bracket
assembly and belt.
