Xerox ColorQube 9301

February 2013
4-185
ColorQube® 9303 Family
REP 12.47-171
Repairs/Adjustments

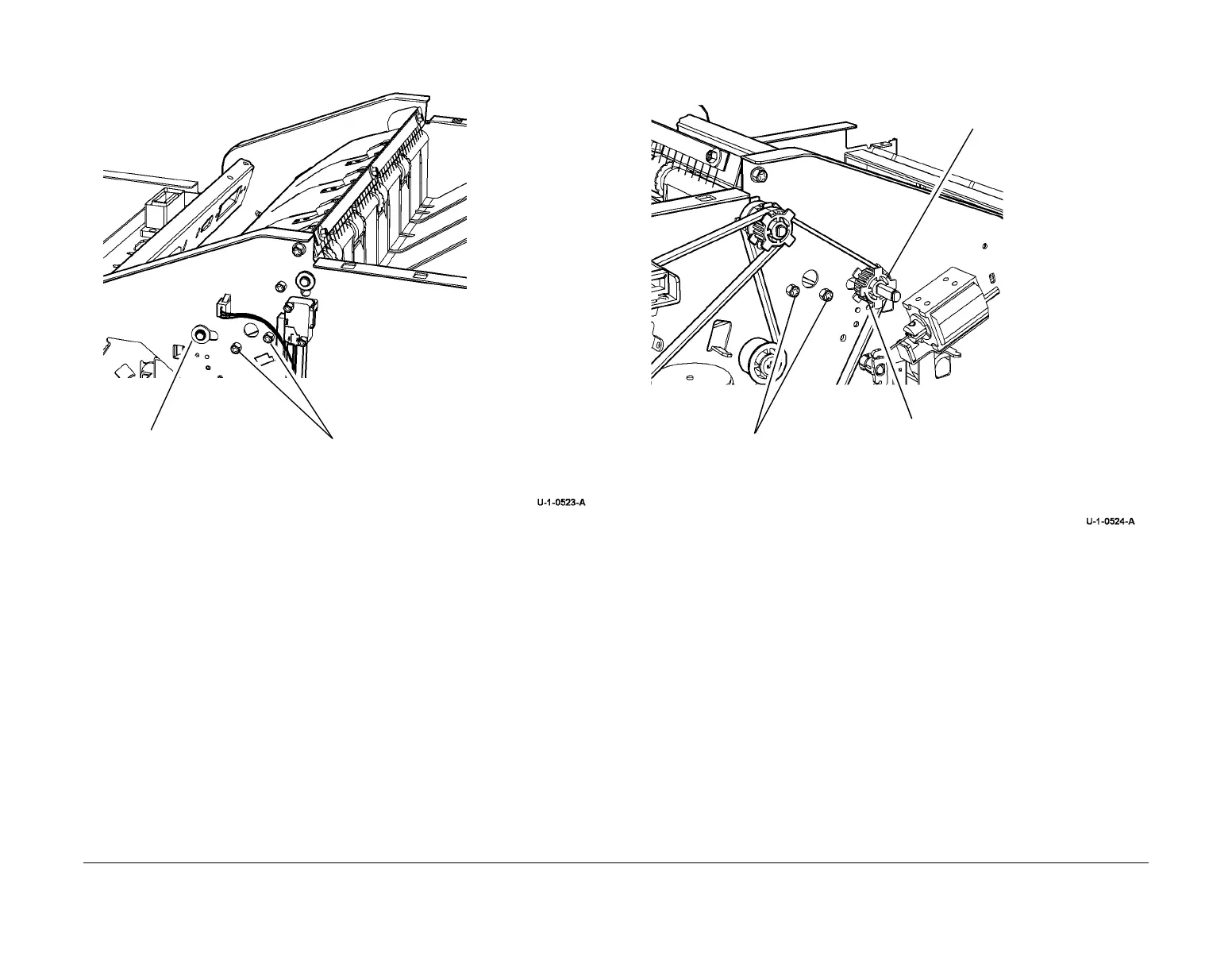

7. Figure 2. Remove the circlip and bush. Remove the front magnet bracket screws.
Figure 2 Feed Roll Front Fasteners.
8. Figure 3. At the rear of the HVF, Remove the circlip, bush, pulley and the rear screws from
the magnet bracket.
Figure 3 Rear component removal.
1
Remove the circlip and
the bush.
2
Remove 2 screws.
1
Remove the circlip.
2
Slide the pulley and
the bush along the
shaft.
3
Slip the belt off of
the pulley.
4
Remove the pulley and
the bush.
5
Remove 2 screws.
REAR VIEW
