Xerox ColorQube 9301 Service Manual

February 2013
4-190
ColorQube® 9303 Family
REP 12.52-171
Repairs/Adjustments

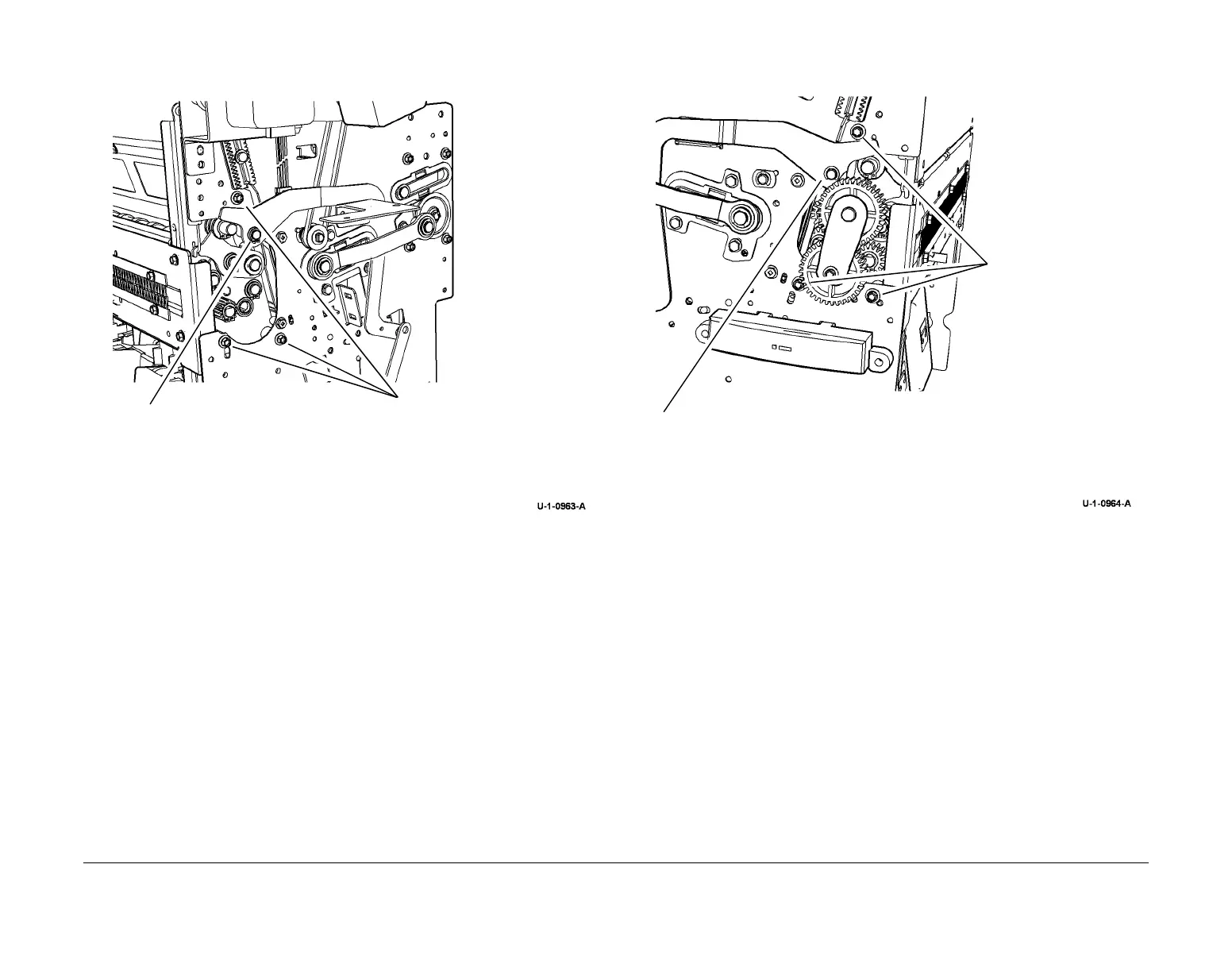

9. Figure 1, Release the crease roll assembly at the rear.
Figure 1 Release the assembly at the rear
10. Figure 2, Release the crease roll assembly at the front.
Figure 2 Release the assembly at the front
1
Remove 3 screws.
2
Remove E-clip and release the
arm.
NOTE: Flat washer between
the bearing and arm
1
Remove 3 screws.
2
Remove the E-clip and release the arm.
NOTE: Flat washer between the bearing
and arm
