Xerox ColorQube 9301

February 2013
4-197
ColorQube® 9303 Family
REP 12.59-171
Repairs/Adjustments

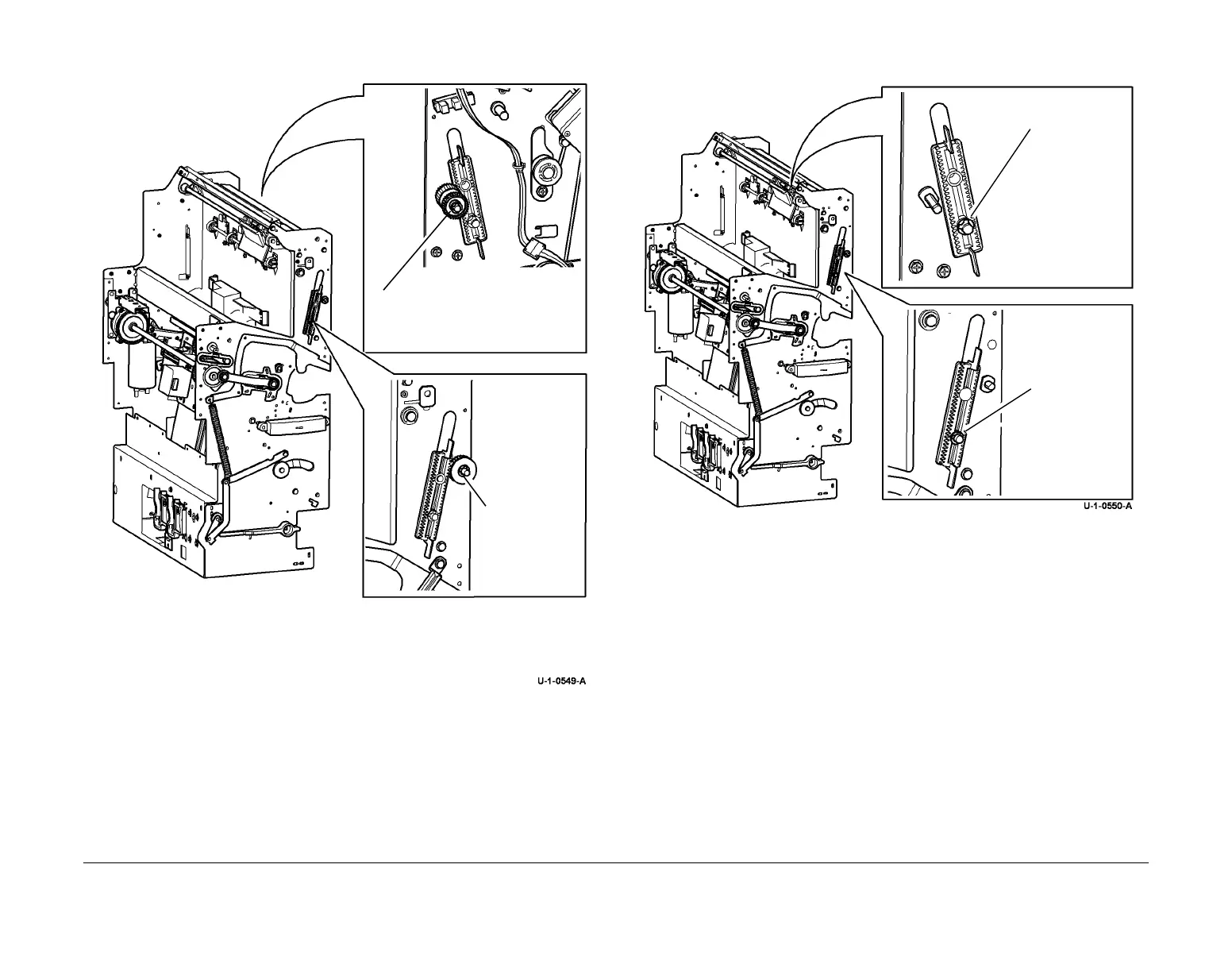

8. Figure 1, remove the crease roll gate rack drive gear and both crease roll gate rack gears.
Figure 1 Removing gears
9. Figure 2, Remove the front and rear crease roll gate racks.
Figure 2 Removing the racks
1
Remove the E-clip and 2 gears.
2
Remove E-clip
and gear.
1
Remove E-clip
and front rack.
2
Remove E-clip
and rear rack.
