Xerox ColorQube 9301

February 2013
4-200
ColorQube® 9303 Family
REP 12.60-171
Repairs/Adjustments

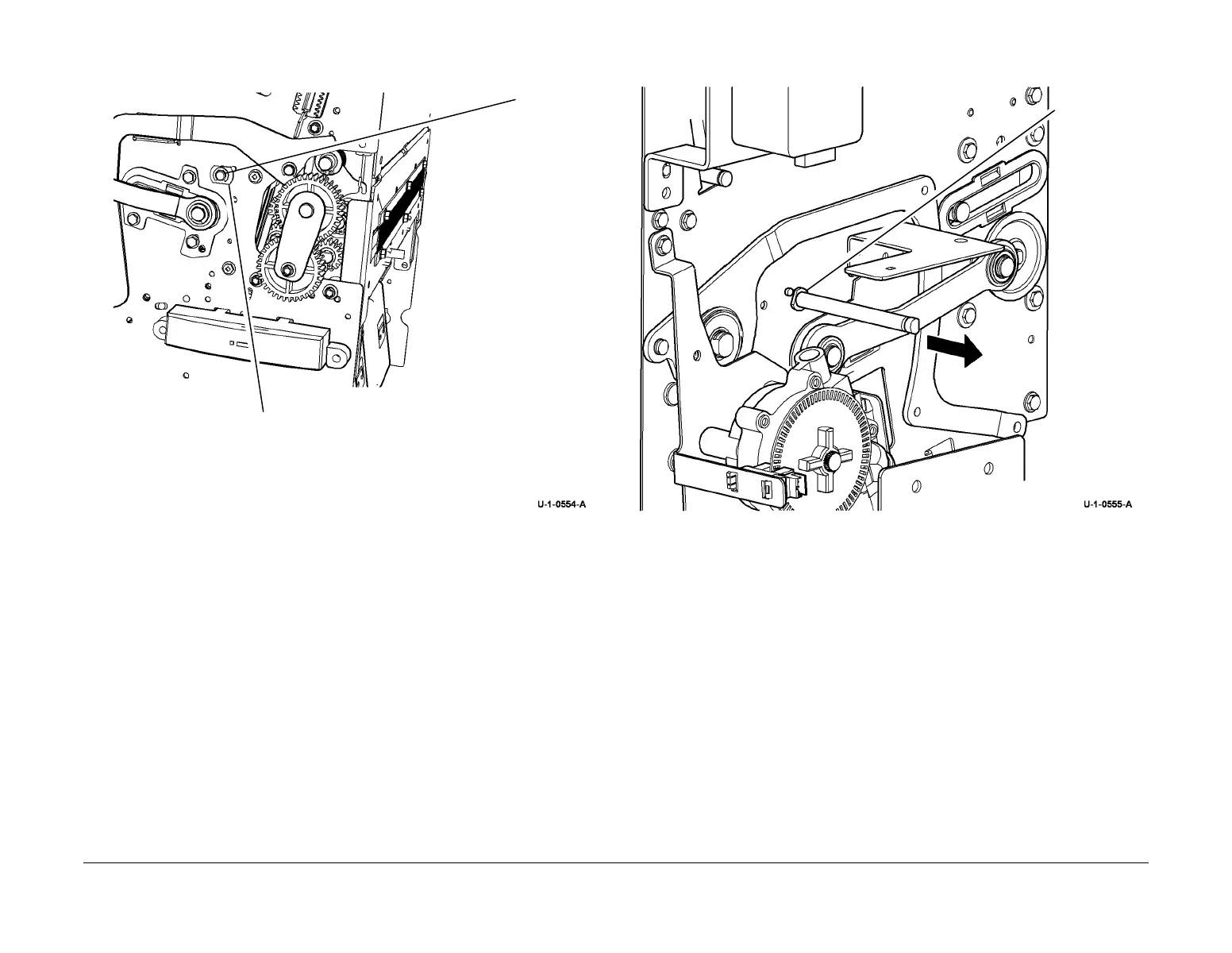

6. Figure 1, remove the front bearing.
Figure 1 Front bearing removal
7. Figure 2, remove the rear bearing.
Figure 2 Rear bearing removal
1
Remove
the E-clip.
2
Remove the bearing.
1
Remove the
E-clip, then
the bearing.
