Xerox ColorQube 9301

February 2013
4-208
ColorQube® 9303 Family
REP 12.62-171
Repairs/Adjustments

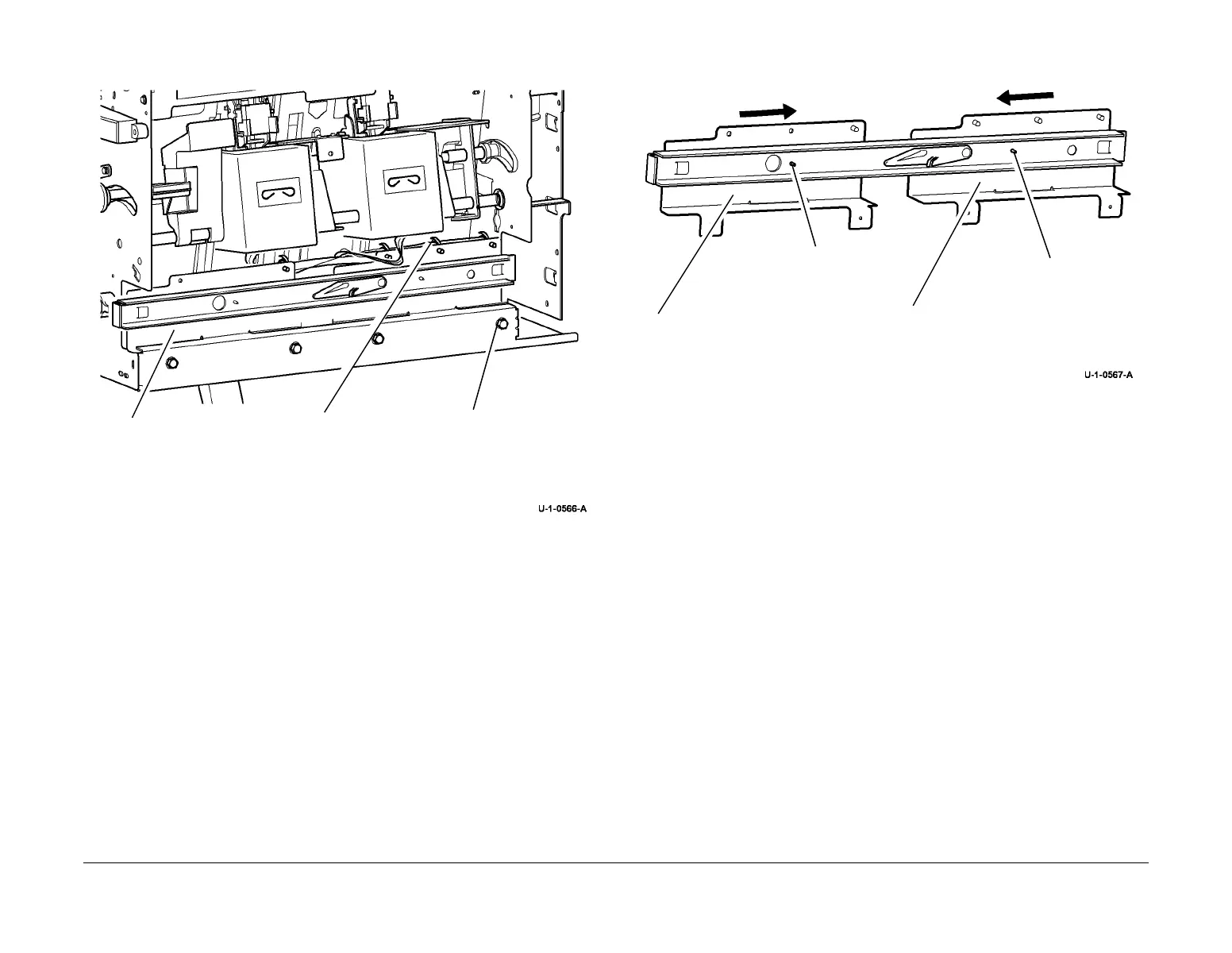

4. Figure 2. Remove the bracket and the slide rail from the right side of the BM module.
Figure 2 Remove the bracket and the slide rail
5. Figure 3. Remove the two brackets from the slide rail.
Figure 3 Remove the bracket from the slide rail
1
Remove four
screws.
2
Cut the four cable ties
to release the harness.
3
Remove the bracket and the
slide rail.
1
Remove screw
.
2
Remove the bracket
from the slide rail.
3
Remove screw.
4
Remove the bracket from
the slide rail.
