POWR
Power unit
5-9 67C3K11

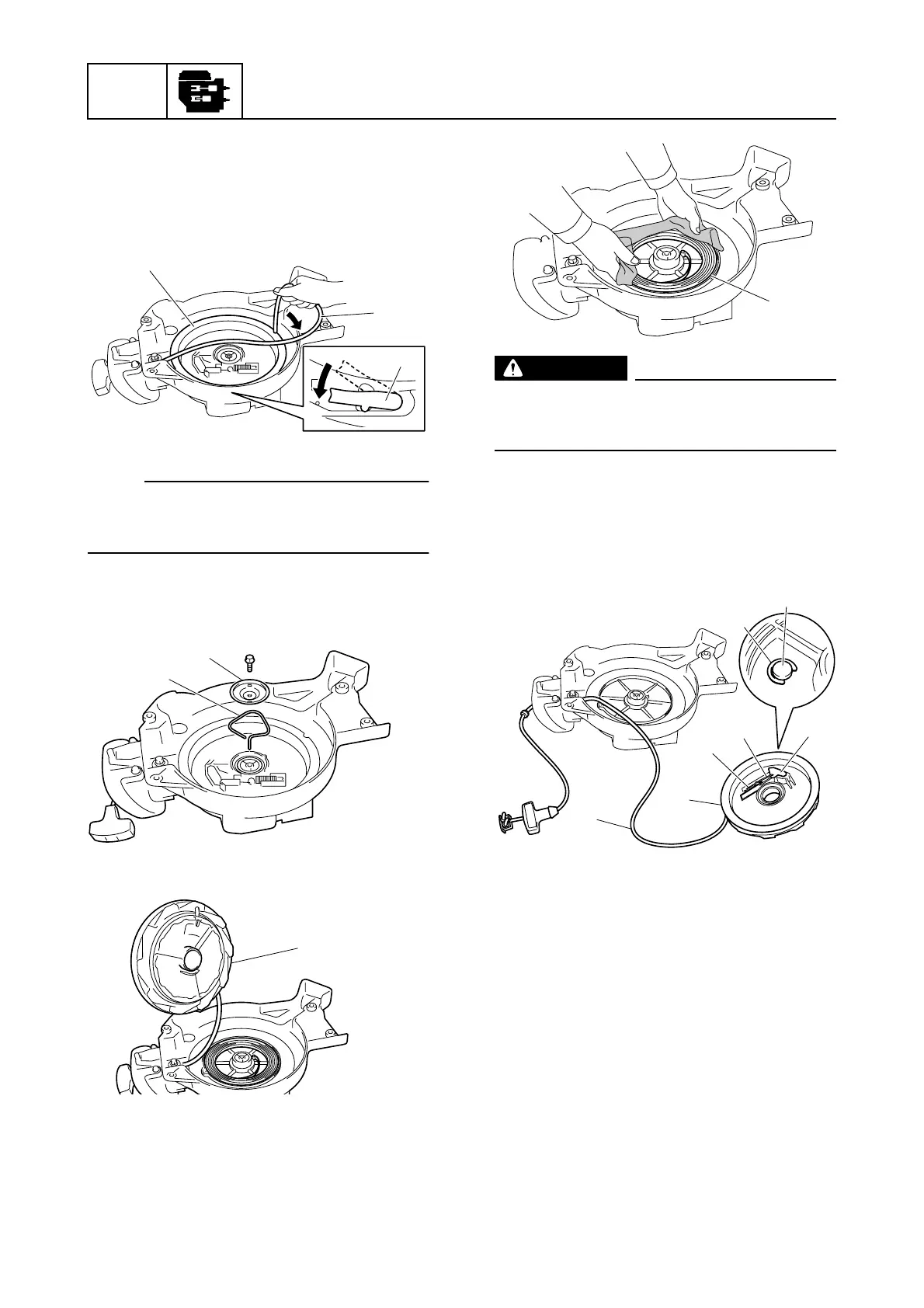

Disassembling the manual starter
1. While holding the starter rope 1, turn the
sheave drum 2 in the direction of the
arrow shown until there is no tension in
the spiral spring.
NOTE:
Push the starter plunger 3 in the direction of
the arrow shown while turning the sheave
drum 2 as shown.
2. Remove the drive plate 4 and drive pawl
spring 1 5.
3. Remove the sheave drum 2.
4. Remove the spiral spring 6 from the
manual starter cover.
WARNING
The spiral spring 6 can pop out. Cover
the spiral spring with rags when removing
it.
5. Remove the starter rope 1 and E-clip 7,
and then remove the drive pawl 8, drive
pawl spring 2 9, and spring 0 from the
sheave drum 2.
Checking the manual starter
1. Check the roller, collar, drive pawl, E-clip,
starter plunger, and drive plate. Replace
if cracked or damaged.
2. Check the springs. Replace if bent,
cracked, or damaged.
S67C5026
3
1
2
S67C5027
5
4
S67C5028
2
S67C5161
6
S67C5029
0
8
7
1
9
2
8
