Yamaha F40B - Throttle Cam

67C3K11 5-18
1
2
3
4
5
6
7
8
9

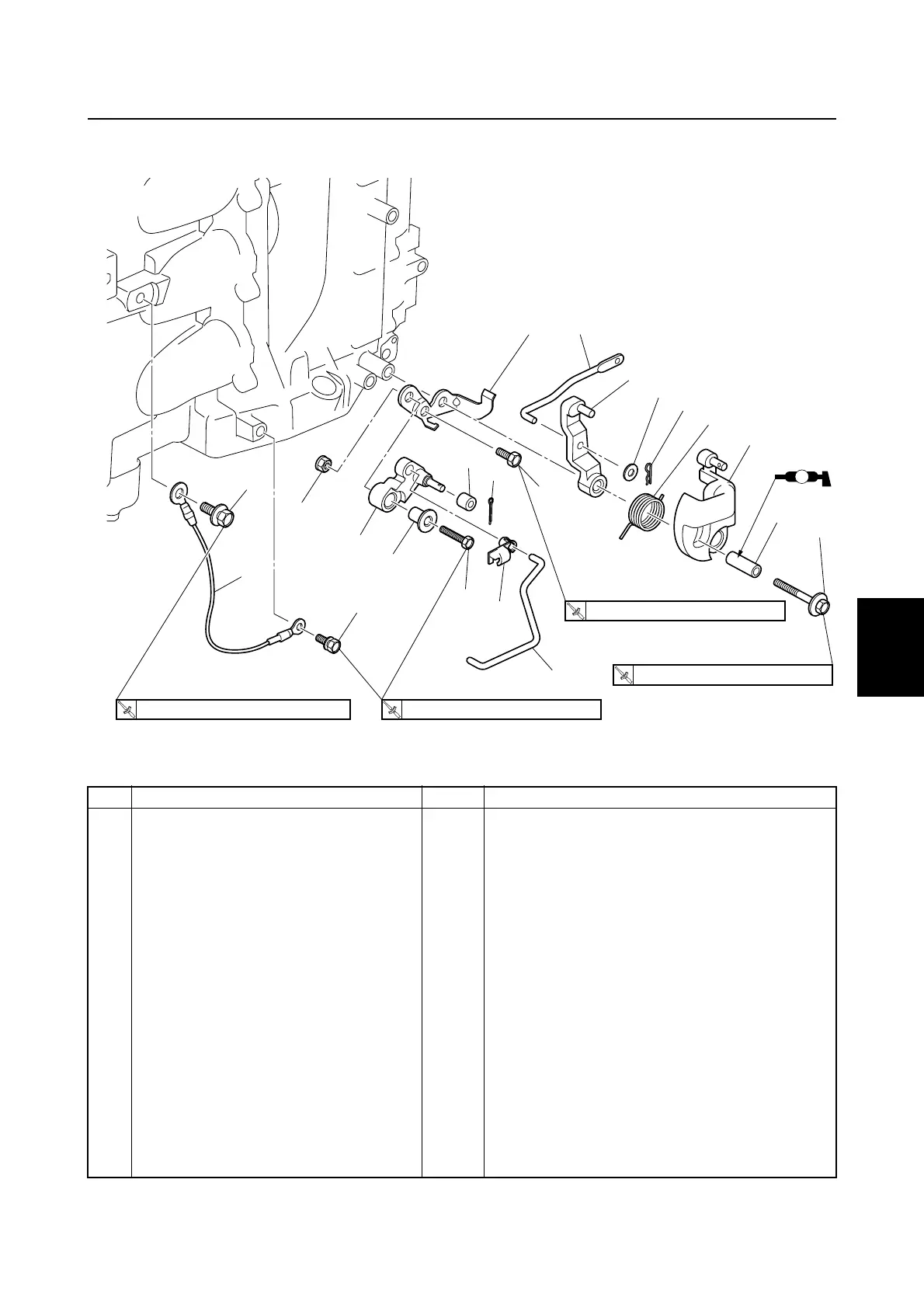

Throttle cam
No.
Part name Q’ty Remarks
1Bolt 1 M8 × 12 mm
2 Ground lead 1
3Bolt 1 M6 × 12 mm
4Nut 1
5 Accelerator lever 1
6 Collar 1
7Bolt 1 M6 × 25 mm
8 Bushing 1
9 Cotter pin 1
10 Clip 1
11 Throttle link rod 1
12 Bracket 1
13 Shift link rod 1
14 Bolt 1 M6 × 14 mm
15 Shift arm 1
16 Washer 1
17 Clip 1
S67C5043
19
18
20
12
17
16
14
8
9
11
21
15
1
2
13
6
5
4
7
10
A
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
3
T
R
.
.
19 N
·
m (1.9 kgf
·
m, 14.0 ft
·
Ib)
Power unit
