Yamaha F40B - Tiller Handle

ELEC
Electrical system
– +
8-5 67C3K11

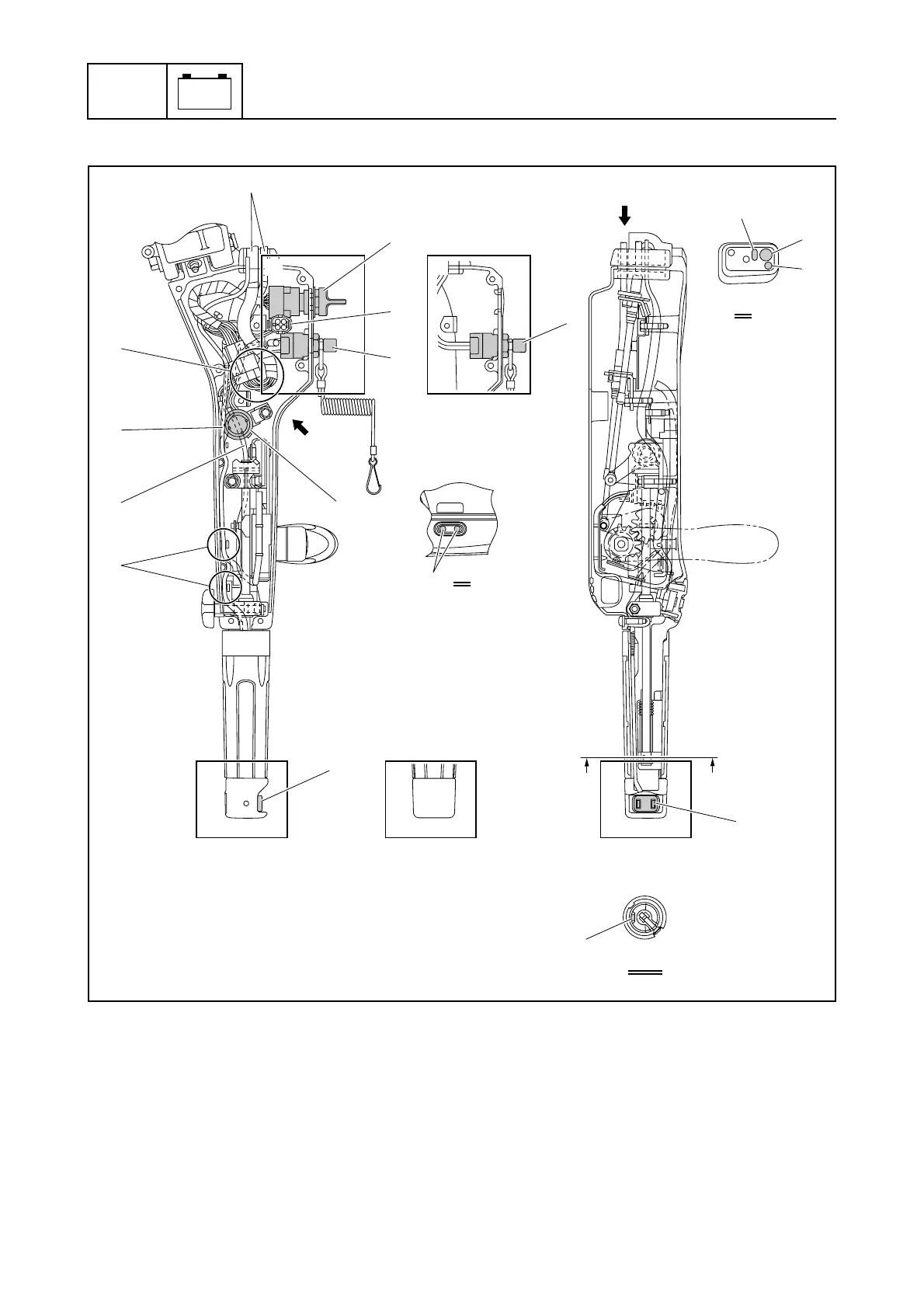

Tiller handle
+ E and W model
, M model
- PTT model
. Except for PTT model
1 Engine start switch (E and W model)
2 Engine shut-off switch
3 Warning buzzer (E and W model)
4 PTT switch (PTT model)
5 Warning indicator assembly (E and W model)
6 Warning indicator assembly lead (E and W
model)
7 10-pin main harness (E and W model)
8 Engine shut-off switch lead (M model)
È Position the tape on the wiring harness to the
inside of the grommet, making sure to align
the edge of the tape with the end of the
grommet.
S67C8008
B-B
A
C
È
Ë
Ì
3
8
5
É
6
7
2
2
1
BB
Í
Ê
Î
A
C
--
,
+
.
4
4
