67C3K11 5-32
1
2
3
4
5
6
7
8
9

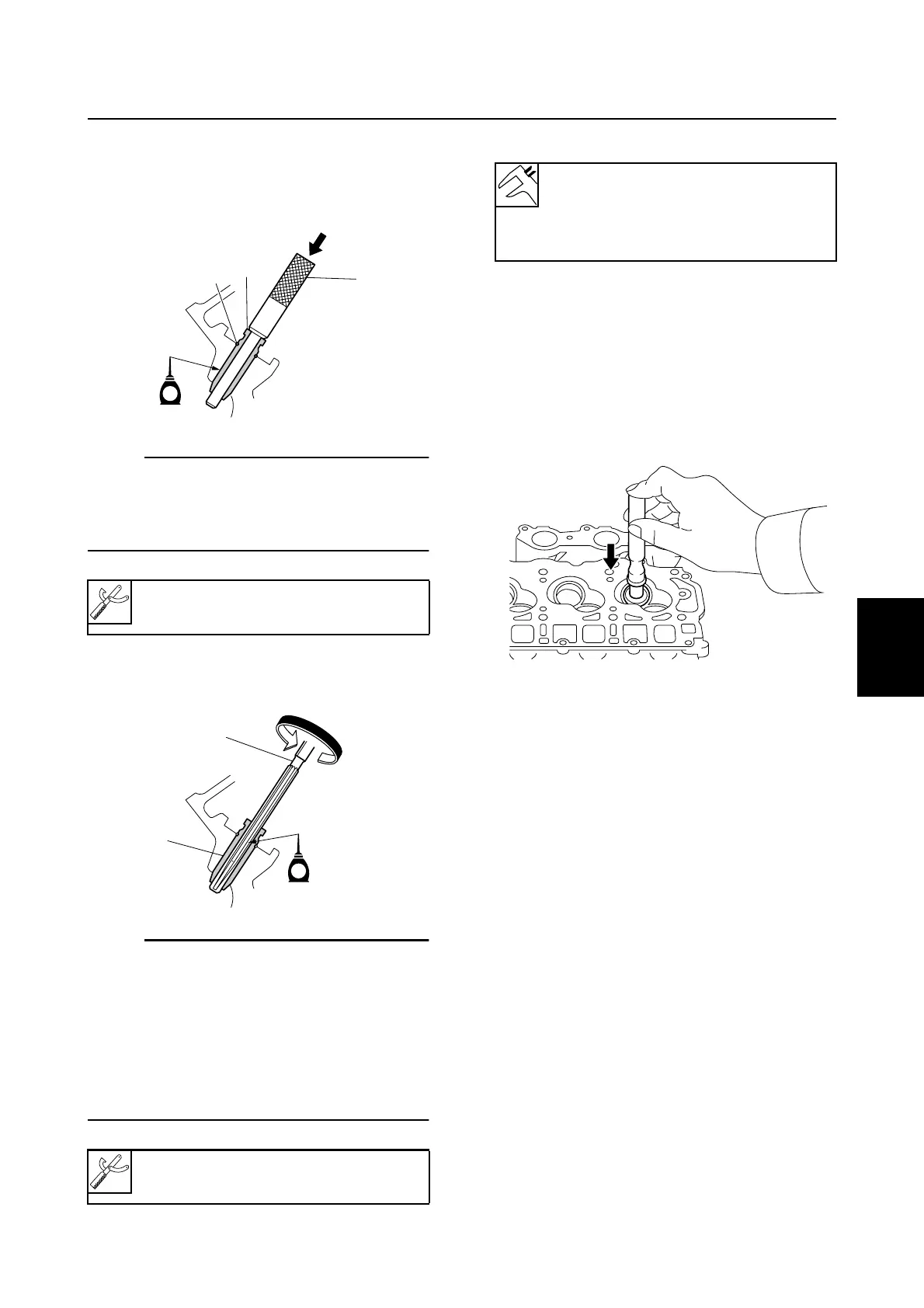

3. Insert the special service tool 1 into the
camshaft end of a new valve guide 3,
and then strike the tool to drive the guide
into the cylinder head.
NOTE:
• Apply engine oil to the surface of a new
valve guide 3 before installation.
• Make sure that the circlip 4 contacts the
cylinder head.
4. Insert the special service tool 5 into the
valve guide 3, and then ream the guide.
NOTE:
• Apply engine oil to the inner surface of the
valve guide before reaming it.
• Turn the valve guide reamer clockwise to
ream the valve guide.
• Do not turn the reamer counterclockwise
when removing it.
• Be sure to clean the valve guide after ream-
ing it.
5. Measure the valve guide inside diameter.
Checking the valve seat
1. Eliminate carbon deposits from the valve.
2. Apply a thin, even layer of Mechanic’s
blueing dye (Dykem) onto the valve seat.
3. Press the valve lightly against the valve
seat with a valve lapper as shown.
Valve guide remover/installer 1:
90890-06801
Valve guide reamer 5: 90890-06804
S67C5082
E
3
1
4
S67C5083
3
5
E
Valve guide inside diameter:
Intake and exhaust:
5.500–5.512 mm
(0.2165–0.2170 in)
S67C5084
Cylinder head
