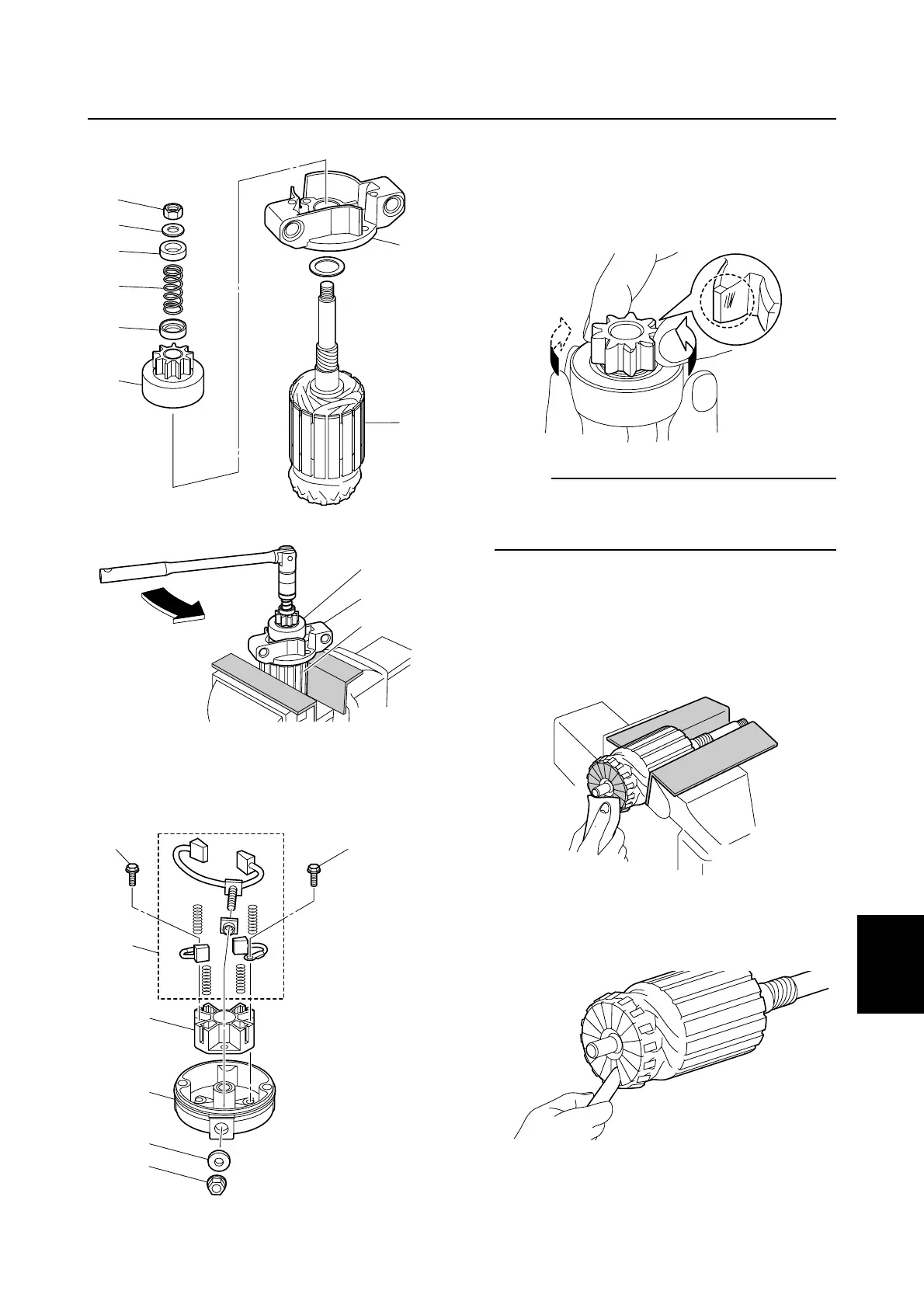

3. Remove the nut 0, spacer A, and bolts
B, and then remove the brush set C and
brush holder D from the bracket E.
Checking the starter motor pinion
1. Check the pinion teeth. Replace the pin-
ion if cracked or worn.
2. Check the pinion for smooth operation.
NOTE:
Turn the pinion counterclockwise to check
that it operates smoothly and turn it clockwise
to check that it locks in place.
Checking the starter motor
1. Check the commutator. Clean with 600-
grit sandpaper and compressed air if
dirty.
2. Clean the grooves between the commu-
tator segments.
