Yamaha F40B - Starter Motor (E and W model)

67C3K11 8-8
1
2
3
4
5
6
7
8
9

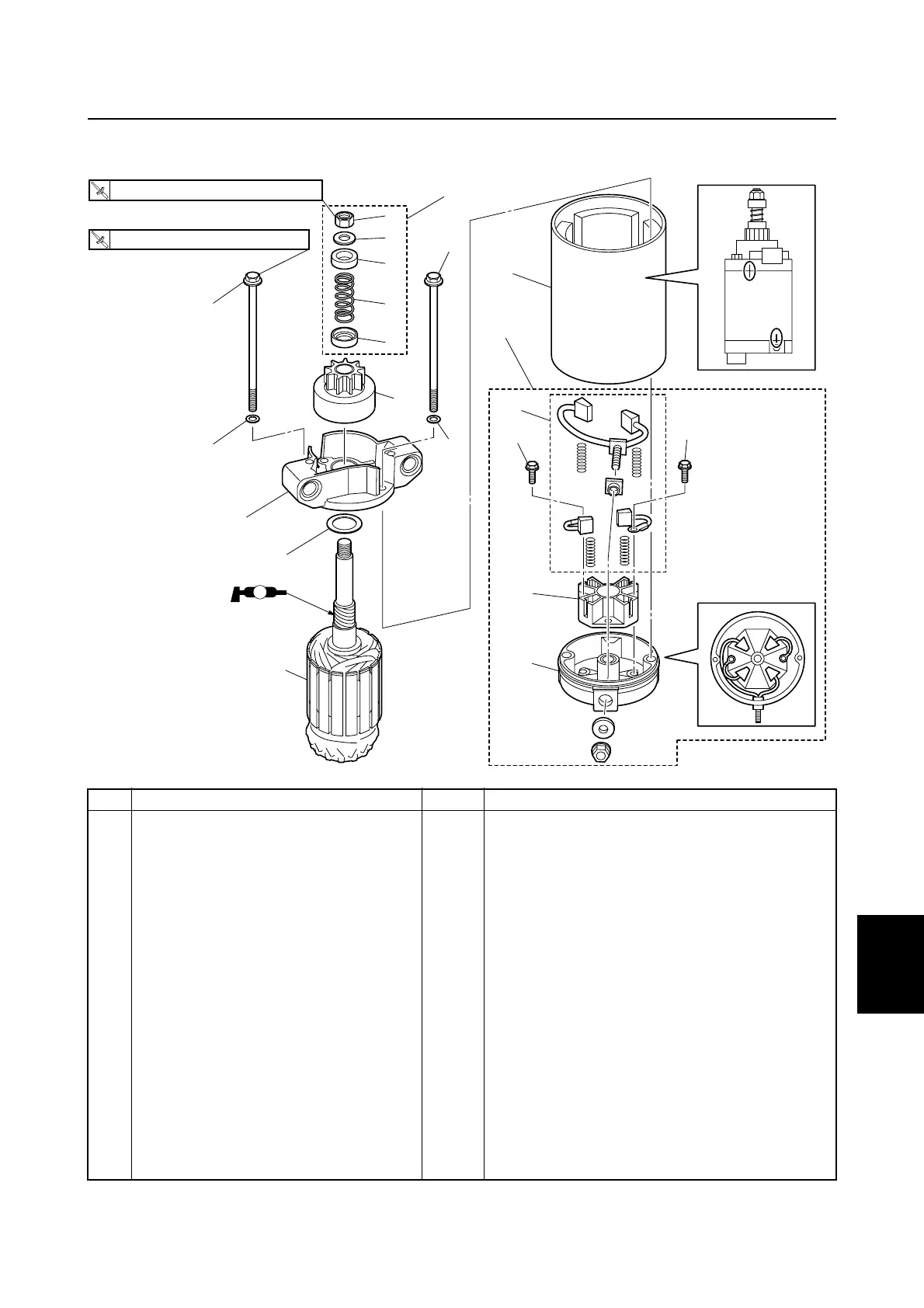

Starter motor (E and W model)
No.
Part name Q’ty Remarks
1 Pinion stopper set 1
2 Nut 1 Width across flats: 14.2 mm (9/16 in)
3 Washer 1
4 Pinion stopper 2
5Spring 1
6 Pinion 1
7Bolt 2 M6 × 125 mm/Width across flats: 9.5 mm (3/8 in)
8 Cover 1
9 Washer 1
10 Armature 1
11 Stator 1
12 Bracket assembly 1
13 Brush set 1
14 Bolt 2 M5 × 14 mm
15 Brush holder 1
16 Bracket 1
17 Washer 2
S67C8013
2
3
4
5
7
1
11
12
14
7
17 17
8
9
10
4
6
14
16
15
13
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
30 N
·
m (3.0 kgf
·
m, 22.1 ft
·
Ib)
AA
Checking the electrical component / Starter motor (E and W model)
