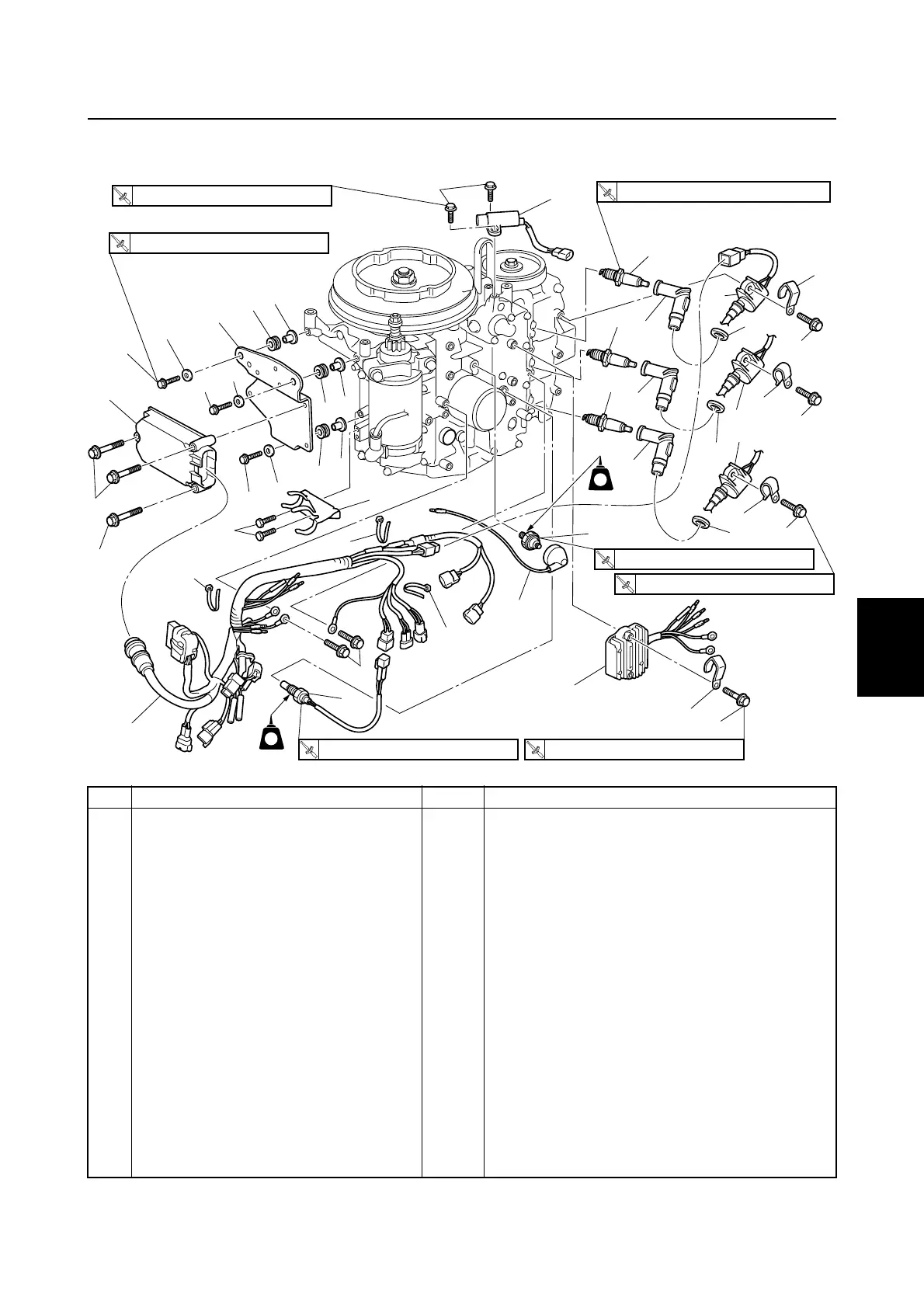

Ignition coil, CDI unit, and Rectifier Regulator
No.
Part name Q’ty Remarks
1Bolt 2 M5 × 16 mm
2 Pulser coil 1
3Bolt 3 M6 × 45 mm
4 CDI unit 1
5Bolt 3 M6 × 25 mm
6 Washer 3
7Bracket 1
8Grommet 3
9 Collar 3
10 Spark plug 3
11 Spark plug cap 3
12 Ignition coil 3
13 Grommet 3
14 Holder 1
15 Holder 2
16 Bolt 3 M6 × 20 mm
17 Oil pressure switch 1
