Yamaha F40B - Fuel Pump, Fuel Filter, and Fuel Joint

67C3K11 4-2
1
2
3
4
5
6
7
8
9

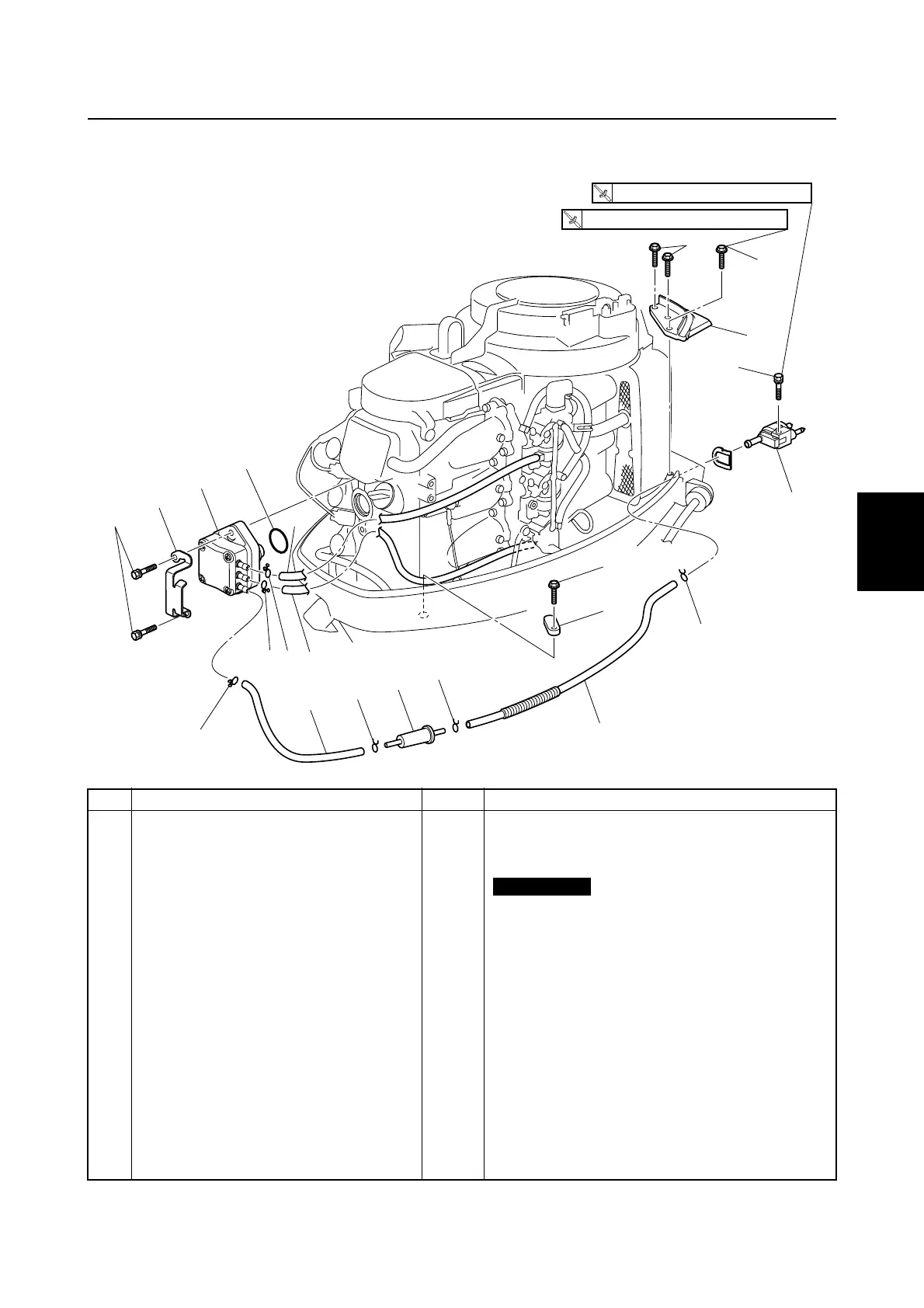

Fuel pump, fuel filter, and fuel joint
No.
Part name Q’ty Remarks
1Bolt 2 M6 × 30 mm
2 Cover 1
3 Fuel pump 1
4O-ring 1
Not reusable
5 Clamp 2
6 Clamp 1
7 Fuel hose 1
8 Fuel hose 1
9 Fuel hose 1
10 Clamp 3
11 Fuel filter 1
12 Fuel hose 1
13 Bolt 4 M6 × 25 mm
14 Plate 1
15 Retaining plate 1
16 Bolt 1 M6 × 25 mm
17 Fuel joint 1
S67C4002
3
10
9
6
5
8
7
5
11
10
12
10
13
14
4
2
1
17
13
13
15
16
T
R
.
.
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
Hose routing / Fuel pump, fuel filter, and fuel joint
