Yamaha F40B - Installing the Water Pump

67C3K11 6-18
1
2
3
4
5
6
7
8
9
3. Check that the shifting mechanism works
properly and smoothly.

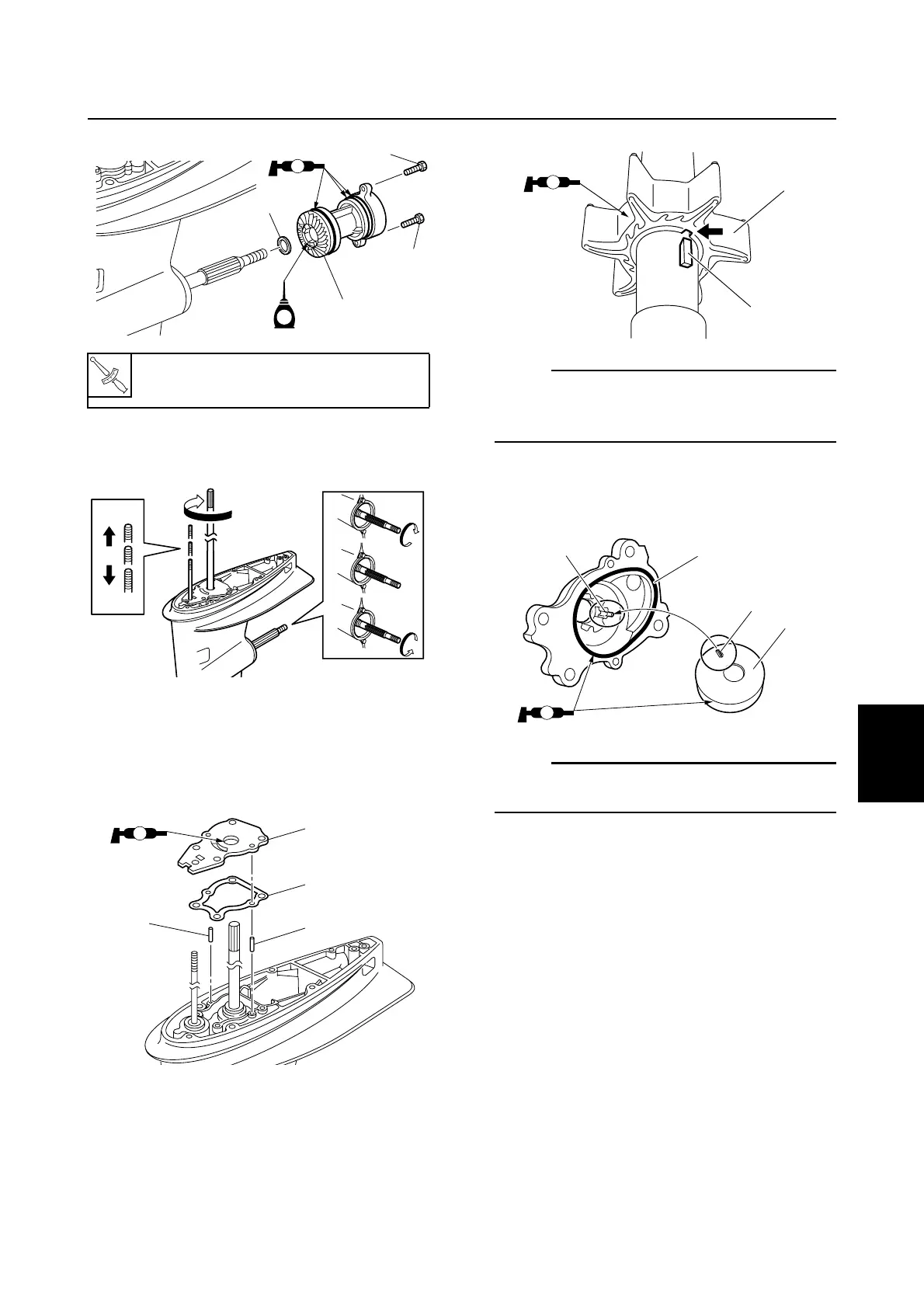

Installing the water pump
1. Install the dowels 1, a new gasket 2,
and the outer plate cartridge 3.
2. Install the Woodruff key 4 and impeller
5 to the drive shaft.
NOTE:
When installing the impeller 5 onto the drive
shaft, align the groove in the impeller with the
Woodruff key 4.
3. Install the insert cartridge 6 and a new
O-ring 7 into the water pump housing.
NOTE:
Align the insert cartridge projection a with
the hole b in the water pump housing.
T
R
.
.
Propeller shaft housing bolt 4:
16 N·m (1.6 kgf·m, 11.8 ft·lb)
S67C6050
G
3
2
4
4
A
S67C6052
F
N
R
F
N
R
S67C6053
A
1
1
2
3
S67C6054
A
5
4
S67C6055
7
6
b
a
AA
Drive shaft and lower case
