Yamaha F40B - Assembling the Forward Gear; Assembling the Oil Seal Housing; Assembling the Drive Shaft

67C3K11 6-16
1
2
3
4
5
6
7
8
9
NOTE:
Be sure to select the pinion shim(s) if replac-
ing the pinion, taper roller bearing, or lower
case. To select the shims, see “Shimming”
(6-21).

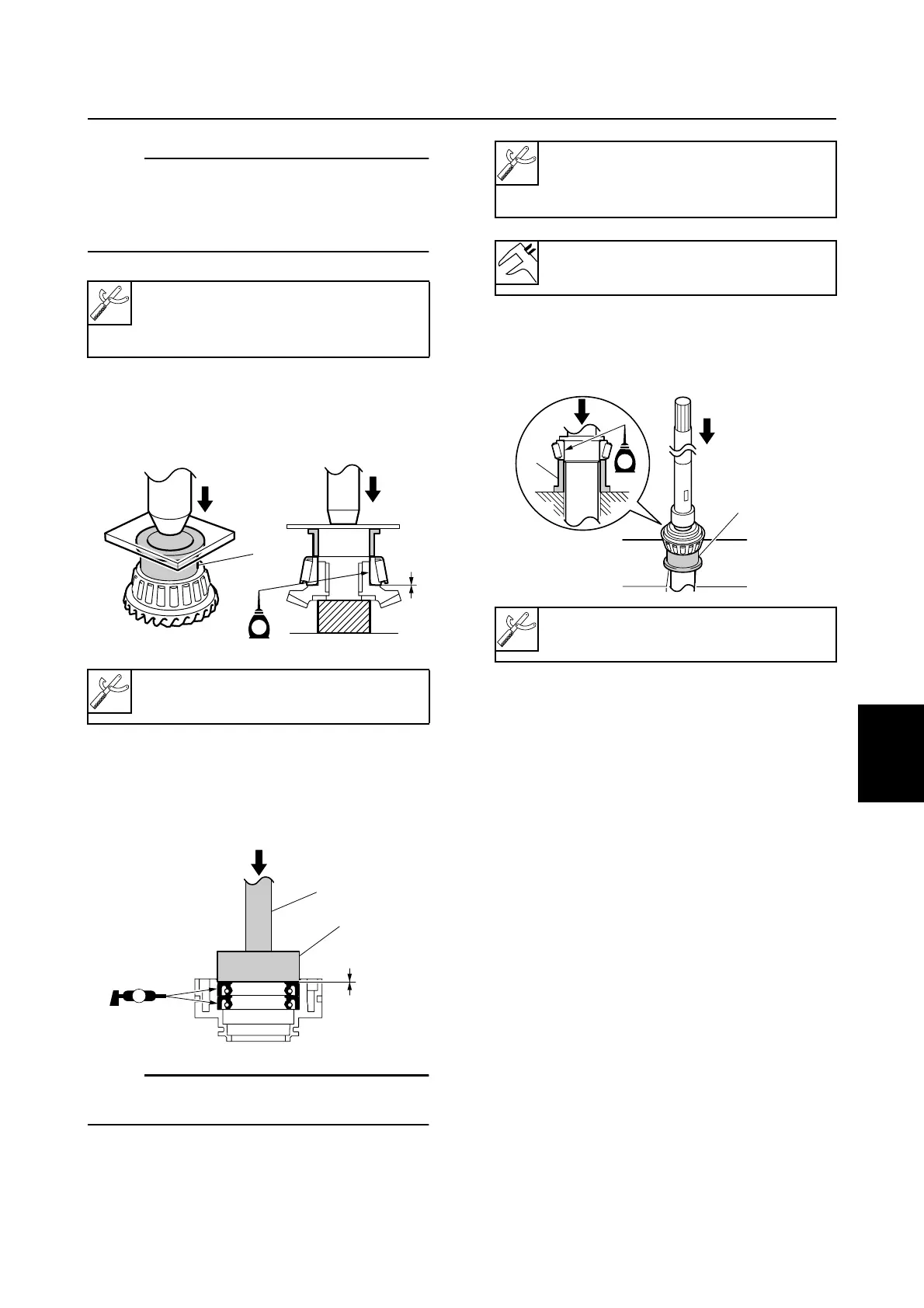

Assembling the forward gear
1. Install a new taper roller bearing onto the
forward gear.
Assembling the oil seal housing
1. Apply grease to a new oil seal, and then
install it into the oil seal housing to the
specified depth a.
NOTE:
Install an oil seal halfway into the oil seal
housing, and then install the other oil seal.
Assembling the drive shaft
1. Install the taper roller bearing onto the
drive shaft.
Driver rod LS 8: 90890-06606
Bearing outer race attachment 9:
90890-06627
Bearing inner race attachment 1:
90890-06640
S67C6109
G
1
S67C6045
a
AA
1
2
Driver rod LS 1: 90890-06606
Ball bearing attachment 2:
90890-06634
Installation depth a:
0–0.5 mm (0–0.02 in)
Bearing inner race attachment 1:
90890-06644
S67C6096
1
1
G
Drive shaft and lower case
