Yamaha F40B - Carburetor Unit

FUEL
Fuel system
4-7 67C3K11

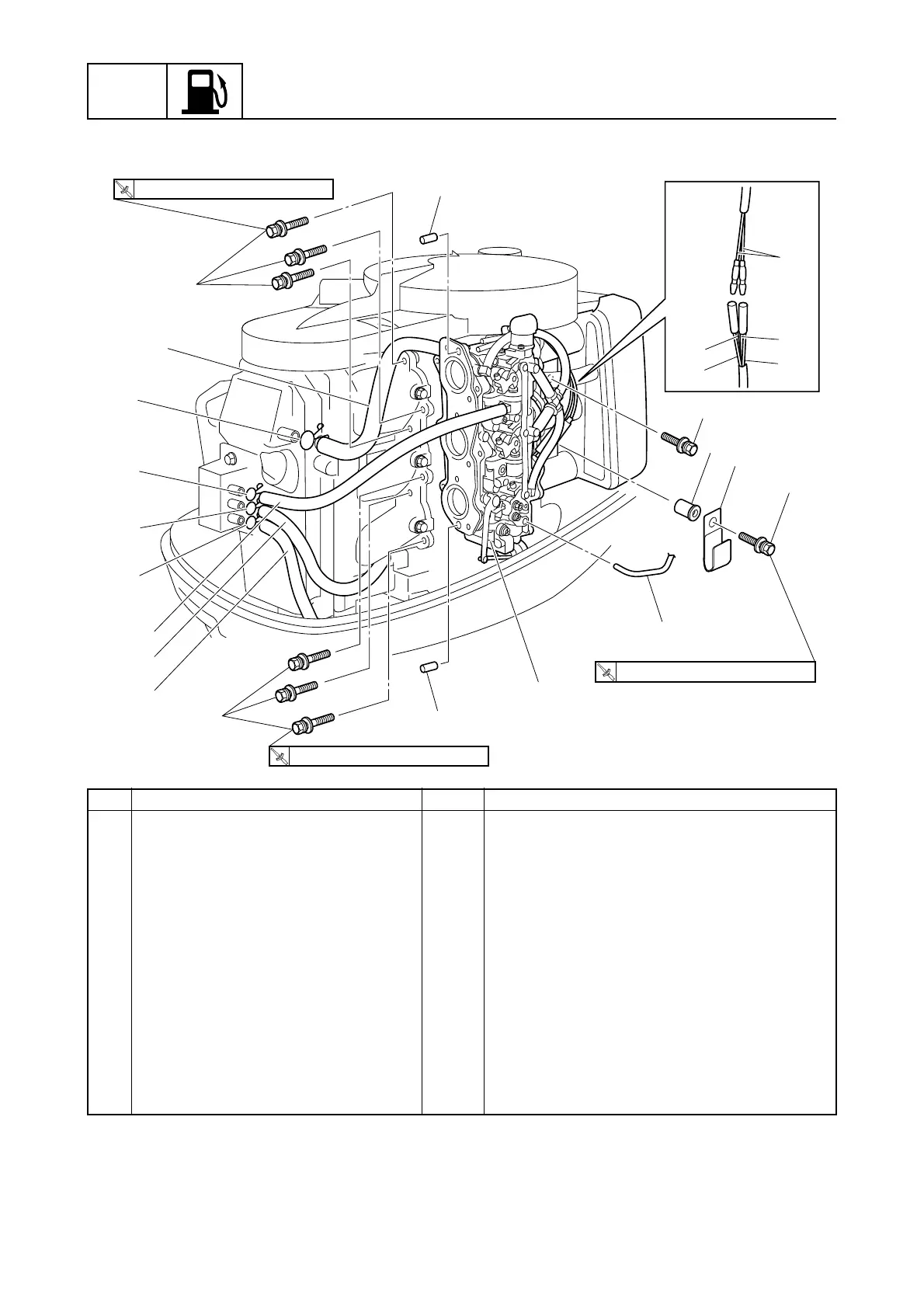

Carburetor unit
No.
Part name Q’ty Remarks
1 Blowby hose 1
2 Clamp 1
3 Clamp 2
4 Clamp 1
5 Fuel hose 1
6 Fuel hose 1
7 Fuel hose 1
8Bolt 6 M6 × 25 mm
9Bolt 2 M6 × 20 mm
10 Holder 1
11 Collar 1
12 Throttle link rod 1
13 Carburetor unit 1
14 Dowel 2
S67C4016
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
Y/B
Y/B
Y
Y
Y
14
8
3
5
2
12
13
11
10
9
9
6
7
4
3
1
8
14
