CHK
ADJ
Periodic check and adjustment
3-9 67C3K11

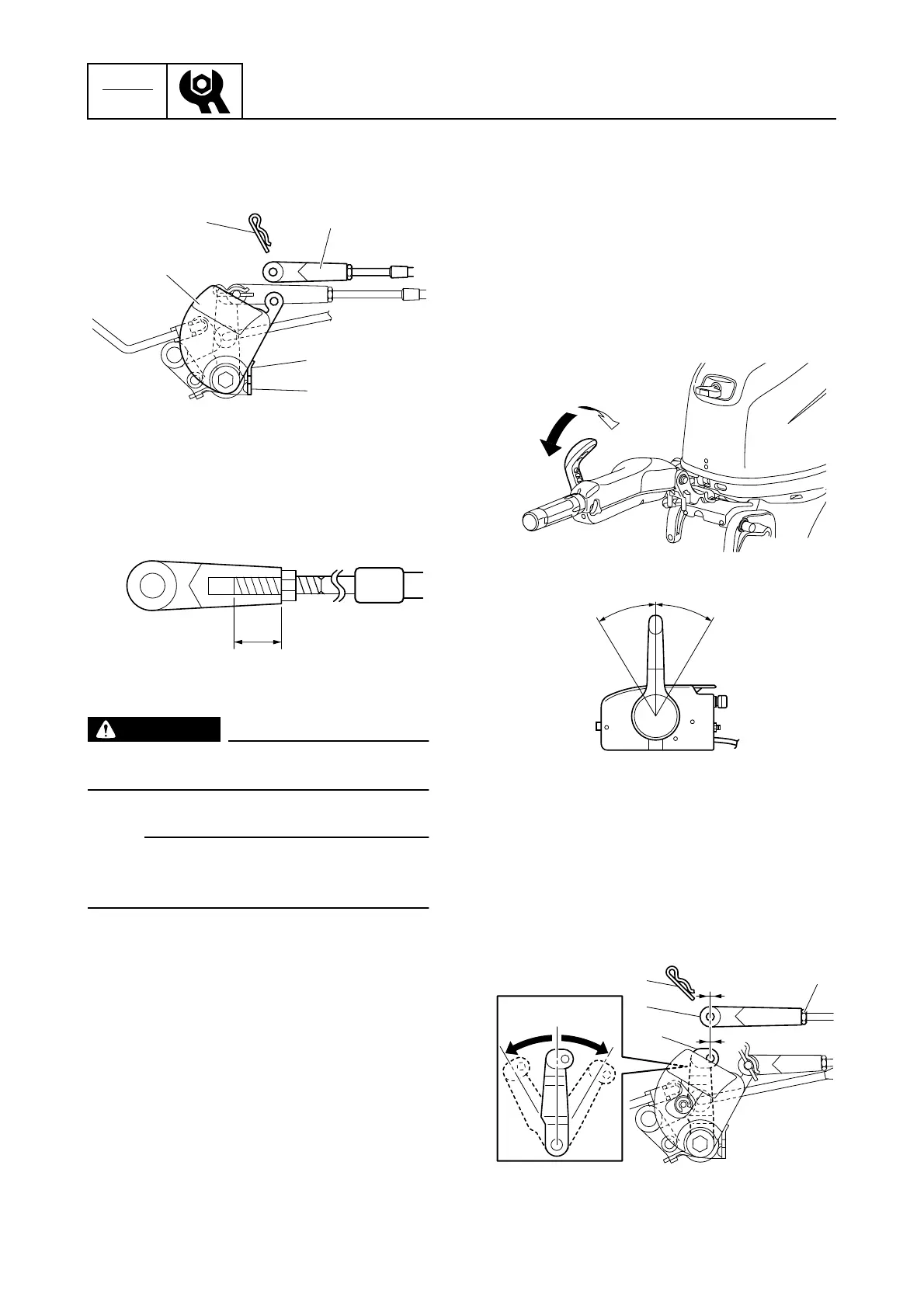

2. Check that the throttle cam 4 contacts
the fully closed stopper a on the throttle
cam bracket 5.
3. Adjust the position of the throttle cable
joint 3 until its hole is aligned with the
set pin on the throttle cam 4.
WARNING
The throttle cable joint must be screwed
in a minimum depth of 8.0 mm (0.31 in) b.
NOTE:
Pull the throttle cable toward the engine
when adjusting the position of the throttle
cable joint 3.
4. Connect the throttle cable joint 3, install
the clip 2, and then tighten the locknut
1.
5. Turn the throttle grip (H model) or move
the remote control lever (R model) to the
fully open and fully closed positions and
check that the carburetors fully open and
fully close.
Checking the gear shift operation
1. Check that the gear shift operates
smoothly when the shift lever (H model)
or remote control lever (R model) is
shifted from the N position to the F posi-
tion or R position. Adjust the shift cable
and shift rod if necessary.
2. Set the shift lever (H model) or remote
control lever (R model) to the N position.
È H model
É R model
3. Loosen the locknut 1, remove the clip
2, and then disconnect the shift cable
joint 3.
4. Check that the shift arm 4 is in the N
position as shown.
S67C3062
2
3
5
a
4
S6AG1090
b
S67C3026
F
R
N
È
S67C3060
F
N
R
É
S67C3029
2
3
4
c
b
N
RF
1
