BRKT
Bracket unit
7-21 67C3K11

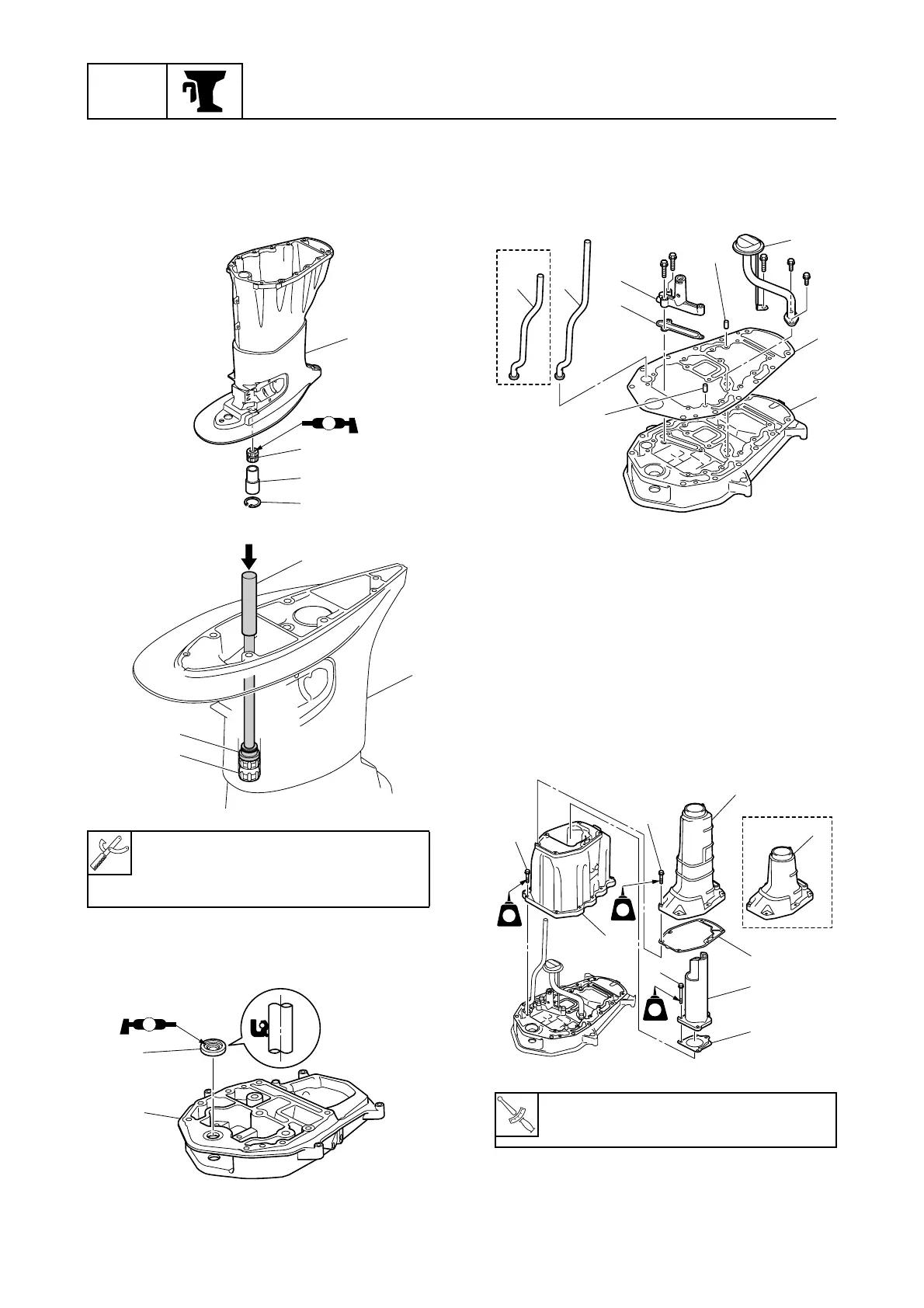

Assembling the upper case
1. Install the drive shaft bushing 1 and col-
lar 2 into the upper case 3, and then
install the circlip 4. (L-transom model)
2. Install a new oil seal 7 into the exhaust
guide 8.
3. Install the dowels 9, the cooling water
pipe 0, new gaskets A and B, the relief
valve assembly C, and the oil strainer D
onto the exhaust guide 8.
È S-transom model
4. Install the oil pan E.
5. Install a new gasket F and the exhaust
manifold G, and then tighten the bolts H
to the specified torque.
6. Tighten the bolts I.
7. Install a new gasket J and the muffler
K, and then tighten the bolts L.
È S-transom model
Driver rod L3 5: 90890-06652
Needle bearing attachment 6:
90890-06614
S67C7128
3
4
2
1
M
S67C7117
5
3
6
1
S67C7023
7
8
AA
T
R
.
.
Exhaust manifold bolt H:
10 N·m (1.0 kgf·m, 7.4 ft·lb)
S67C7025
9
D
A
C
0 0
È
9
B
8
S67C7026
L
H
I
E
F
G
J
K
KÈ
LT
572
LT
LT
572
LT
LT
572
LT
