GEN
INFO
General information
1-17 67C3K11

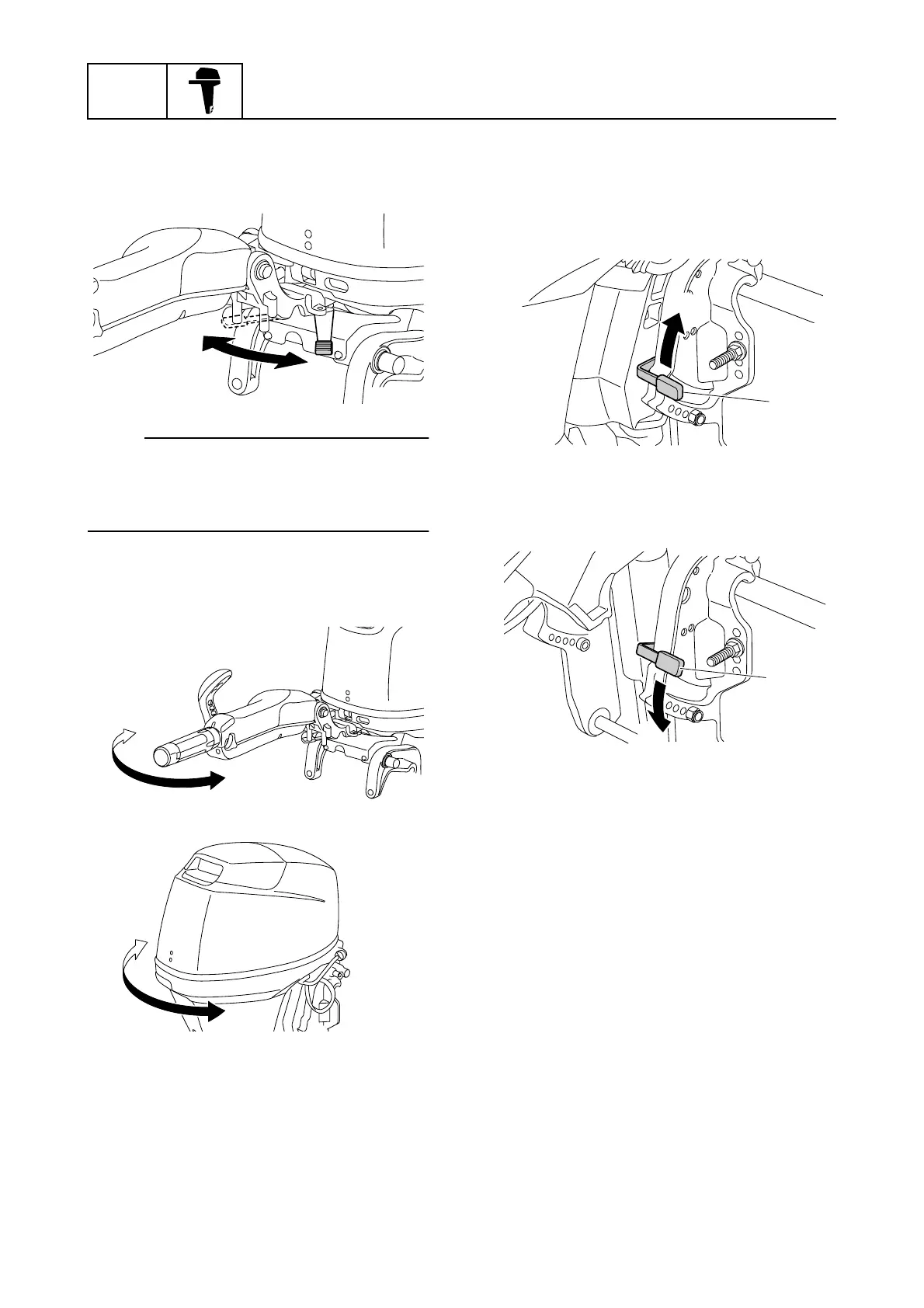

Checking the steering system
1. Check the steering friction for proper
adjustment. (H model)
NOTE:
• To increase the friction, move the steering
lock lever in direction a.
• To decrease the friction, move the steering
lock lever in direction b.
2. Check that the steering operates
smoothly.
È H model
É R model
3. Check that there is no interference with
leads, cables, or hoses when the out-
board motor is steered.
Checking the tilt system (D model)
1. Set the tilt lock lever 1 to the release
position a and tilt the outboard motor to
the fully up position. Check that the out-
board motor tilts up smoothly.
2. Set the tilt lock lever 1 to the lock posi-
tion b and check that the outboard
motor is locked in the tilted-up position.
3. Check that there is no interference with
leads, cables, or hoses when steering
the motor in its fully up position.
4. Set the tilt lock lever 1 to the release
position a and tilt the outboard motor to
the fully down position. Check that the
outboard motor tilts down smoothly.
Checking the PTT system (PTT
model)
1. Check that the outboard motor tilts up
and down smoothly when operating the
PTT switch.
S67C1028
b
a
S67C1029
È
S67C1030
É
S67C1031
1
a
S67C1033
1
b
