Yamaha F40B - Electrical Component and Wiring Harness Routing

ELEC
Electrical system
– +
8-1 67C3K11

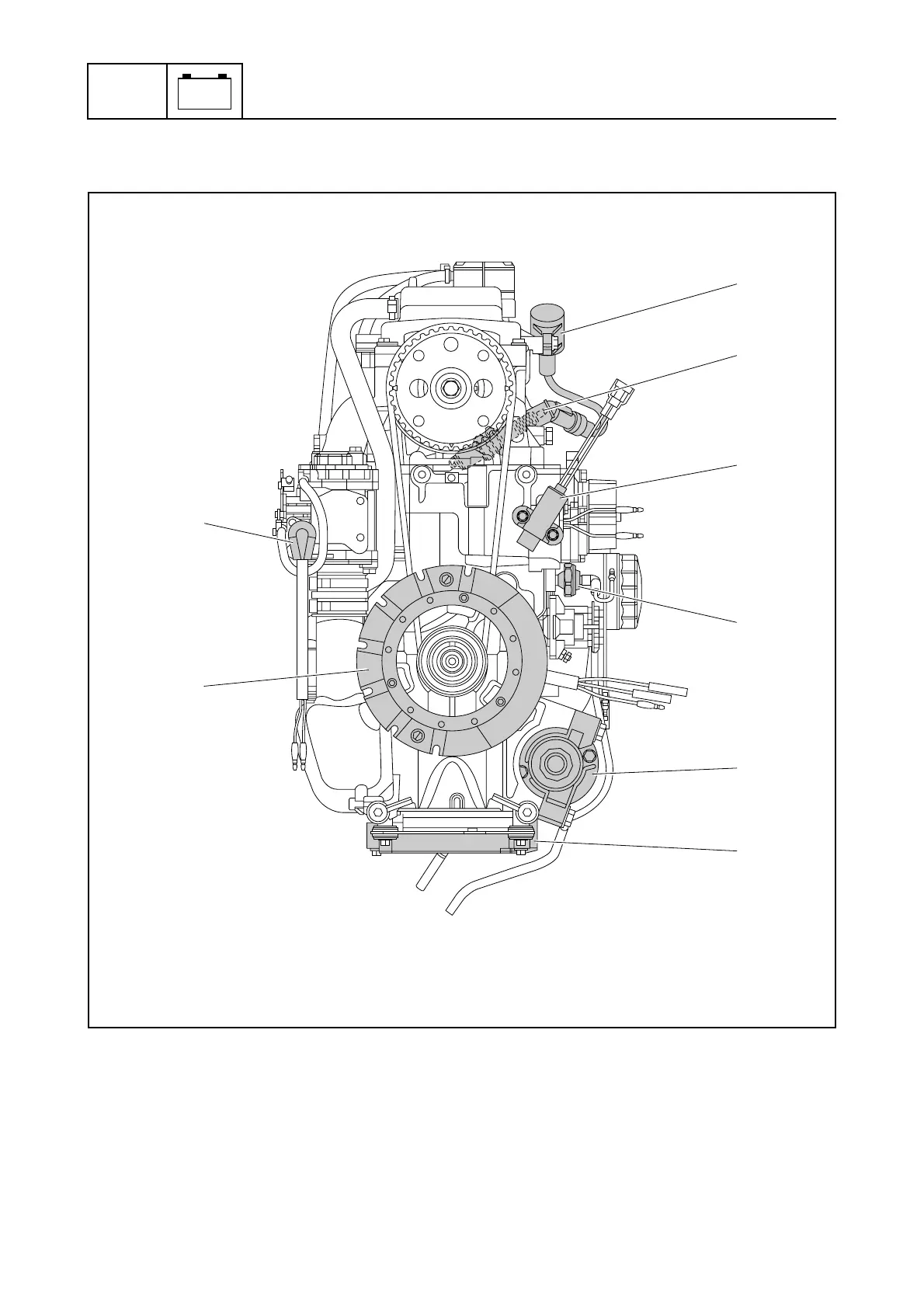

Electrical component and wiring harness routing
Top view
1 Ignition coil
2 Spark plug
3 Pulser coil
4 Oil pressure switch
5 Starter motor (E and W model)
6 CDI unit
7 Stator assembly
8 Prime Start
S67C8001
5
6
3
1
2
4
8
7
