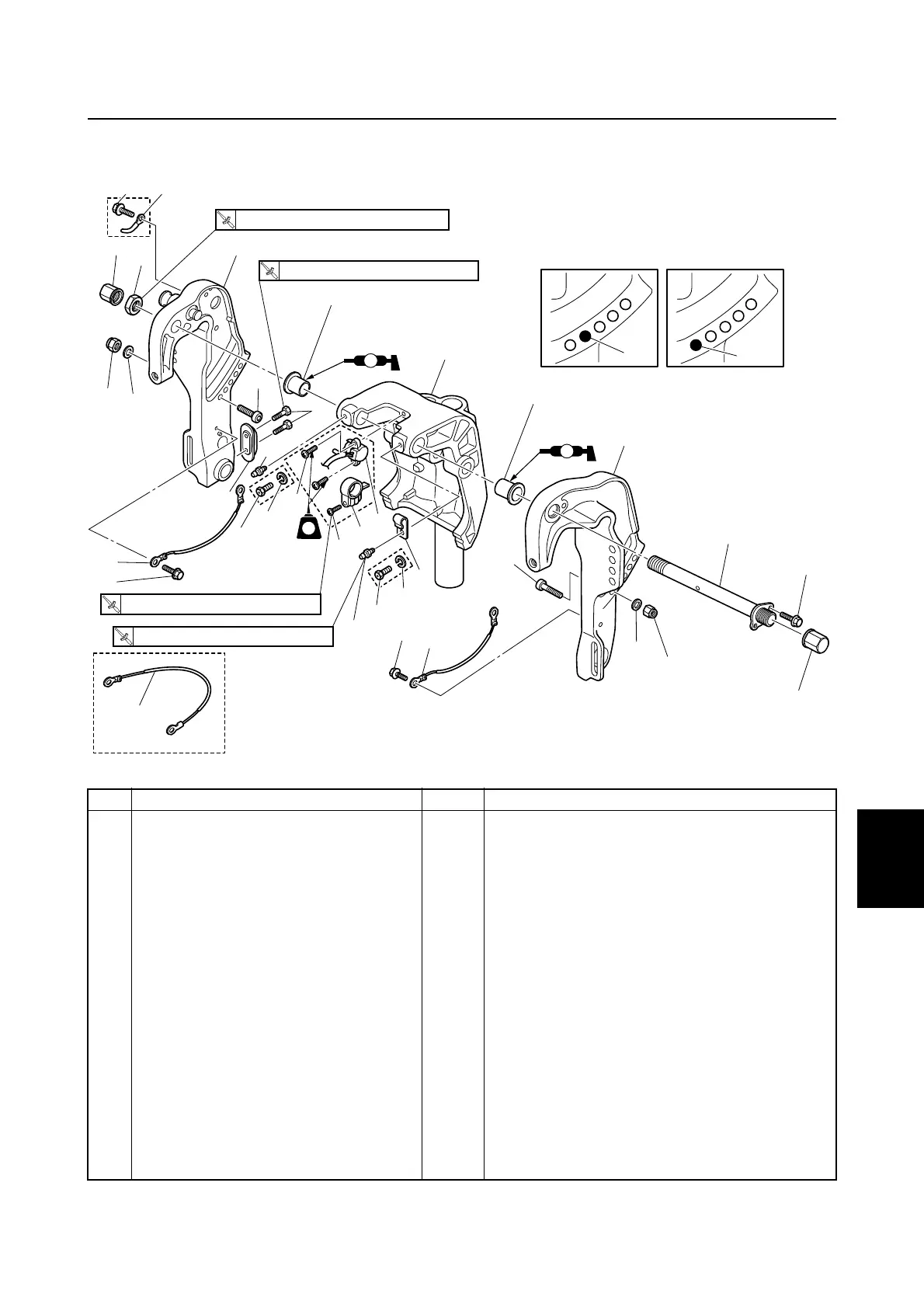

Clamp bracket and swivel bracket
No.
Part name Q’ty Remarks
1Cap 2
2 Self-locking nut 1
3Bolt 1 M6 × 14 mm/R model with PTT
4 Holder 1 R model with PTT
5Nut 2
6 Washer 2
7 Stopper 2 M10 × 45 mm/È D model/É PTT model
8Bolt 2 M6 × 25 mm
9 Anode 1
10 Clamp bracket 1 STBD
11 Collar 2
12 Swivel bracket 1
13 Screw 1 ø6 × 24 mm/R model with PTT
14 Trim sensor cam 1 R model with PTT
15 Screw 2 ø6 × 15 mm/R model with PTT
16 Trim sensor 1 R model with PTT
17 Grease nipple 2 Without friction plate
S67C7047
7
È
7
É
3
1
2
5
6
7
11
10
8
9
17
19
20
13
14
22
21
21
11
12
25
26
7
24
6
5
1
27
18
23
4
15
19
20
17
16
AA
AA
LT
572
LT
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
22 N
·
m (2.2 kgf
·
m, 16.2 ft
·
Ib)
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
Hydraulic tilt unit and PTT unit / Clamp bracket and swivel bracket
