Yamaha F40B - Page 208

BRKT

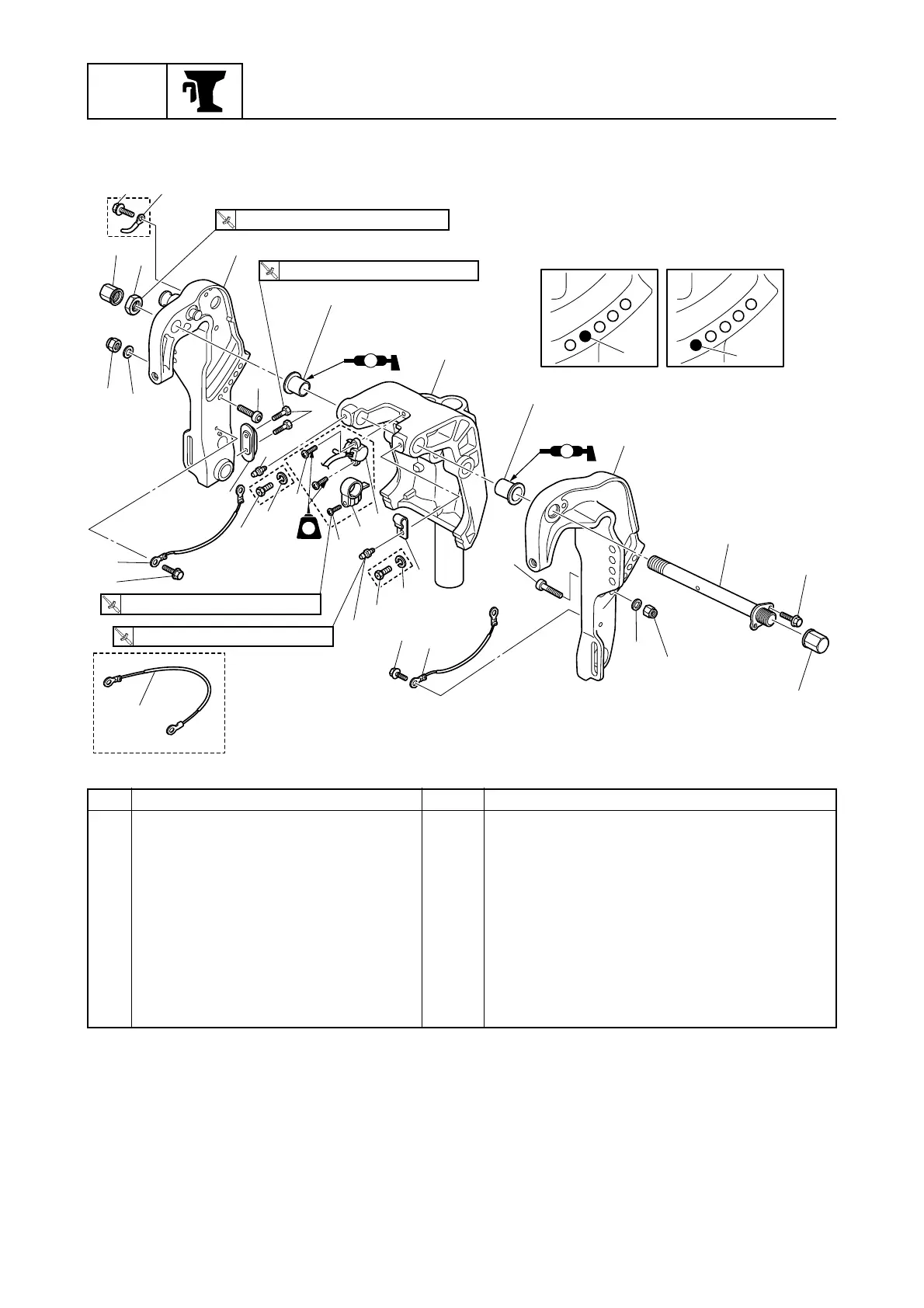

Bracket unit
7-27 67C3K11
No.
Part name Q’ty Remarks
18 Holder 1
19 Bolt 2 M6 × 12 mm/With friction plate
20 Spring washer 2 With friction plate
21 Bolt 2 M6 × 14 mm/PTT model
22 Ground lead 1 Short/PTT model
23 Ground lead 1 Long/PTT model
24 Ground lead 1 D model
25 Clamp bracket 1 PORT
26 Through tube 1
27 Bolt 1 M8 × 20 mm
S67C7047
7
È
7
É
3
1
2
5
6
7
11
10
8
9
17
19
20
13
14
22
21
21
11
12
25
26
7
24
6
5
1
27
18
23
4
15
19
20
17
16
AA
AA
LT
572
LT
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
T
R
.
.
22 N
·
m (2.2 kgf
·
m, 16.2 ft
·
Ib)
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
