Yamaha F40B - Checking the Brush Holder and Brush; Assembling the Starter Motor

ELEC
Electrical system
– +
8-11 67C3K11

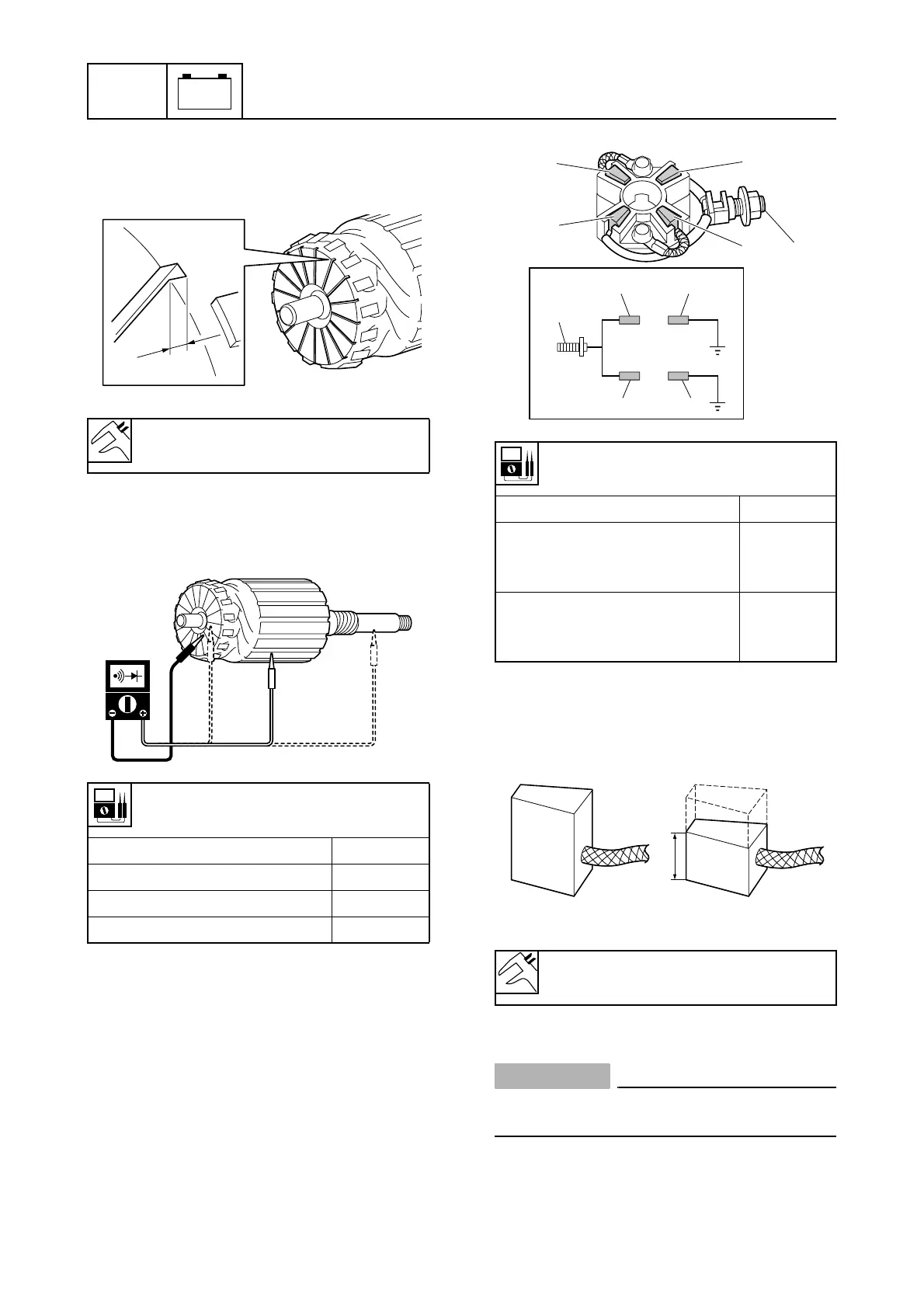

3. Measure the commutator undercut a.
Replace the armature if below specifica-
tion.
4. Check the armature for continuity.
Replace the armature if out of specifica-
tion.
Checking the brush holder and
brush
1. Check the brush holder assembly for
continuity. Replace if out of specification.
2. Measure the length of each brush.
Replace if below specification.
Assembling the starter motor
CAUTION:
Do not allow grease or oil to contact the
commutator of the armature.
Starter motor commutator undercut
wear limit a: 0.8 mm (0.03 in)
Armature continuity
Checking points Continuity
Commutator segments b Yes
Segment – Armature core c No
Segment – Armature shaft d No
S67C8021
a
S67C8022
c
d
b
Brush holder assembly continuity
Checking points Continuity
Brush 1 – Brush 2
Brush 1 – Terminal 5
Brush 2 – Terminal 5
Yes
Brush 3 – Brush 4
Brush 3 – Terminal 5
Brush 4 – Terminal 5
No
Brush length wear limit a:
6.4 mm (0.25 in)
42
5
S67C8023
2
1
4
3
5
3
1
S67C8024
a
