Yamaha F40B - Page 83

67C3K11 4-8
1
2
3
4
5
6
7
8
9
No.
Part name Q’ty Remarks
1 Carburetor joint assembly 1
2Plug 2
3O-ring 9
Not reusable
4 Insulator 1
5Hose 3
6 Carburetor #1 1
7 Carburetor #2 1
8 Carburetor #3 1
9 Fuel hose 1
10 Fuel hose 1
11 Fuel hose 1
12 Cotter pin 3
13 Washer 3
14 Screw 2 ø6 × 10 mm
15 Dashpot 1
16 Throttle link plate 1
17 O-ring 3
Not reusable
S67C4037
4
3
3
1
3
9
10
11
18
19
20
27
20
20
20
17
23
20
21
21
6
8
2
T
R
.
.
5 N
·
m (0.5 kgf
·
m, 3.7 ft
·
Ib)
T
R
.
.
5 N
·
m (0.5 kgf
·
m, 3.7 ft
·
Ib)
T
R
.
.
8 N
·
m (0.8 kgf
·
m, 5.9 ft
·
Ib)
7
13
16
5
12
13
24
12
14
151213
14
22
24
26
26
26
26
26
26
26
26
25

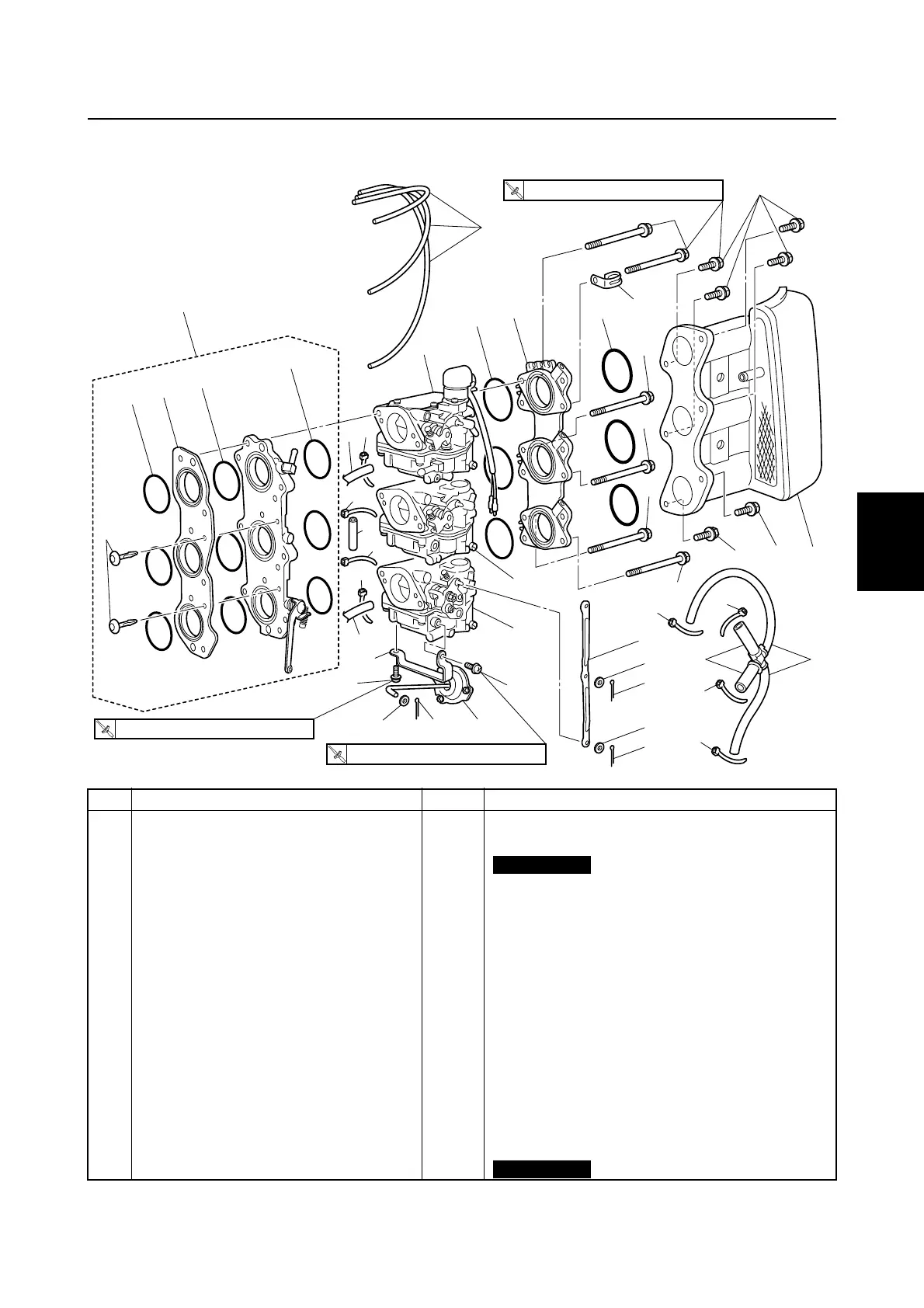

Carburetor unit
