Yamaha F40B - Page 106

POWR
Power unit
5-11 67C3K11

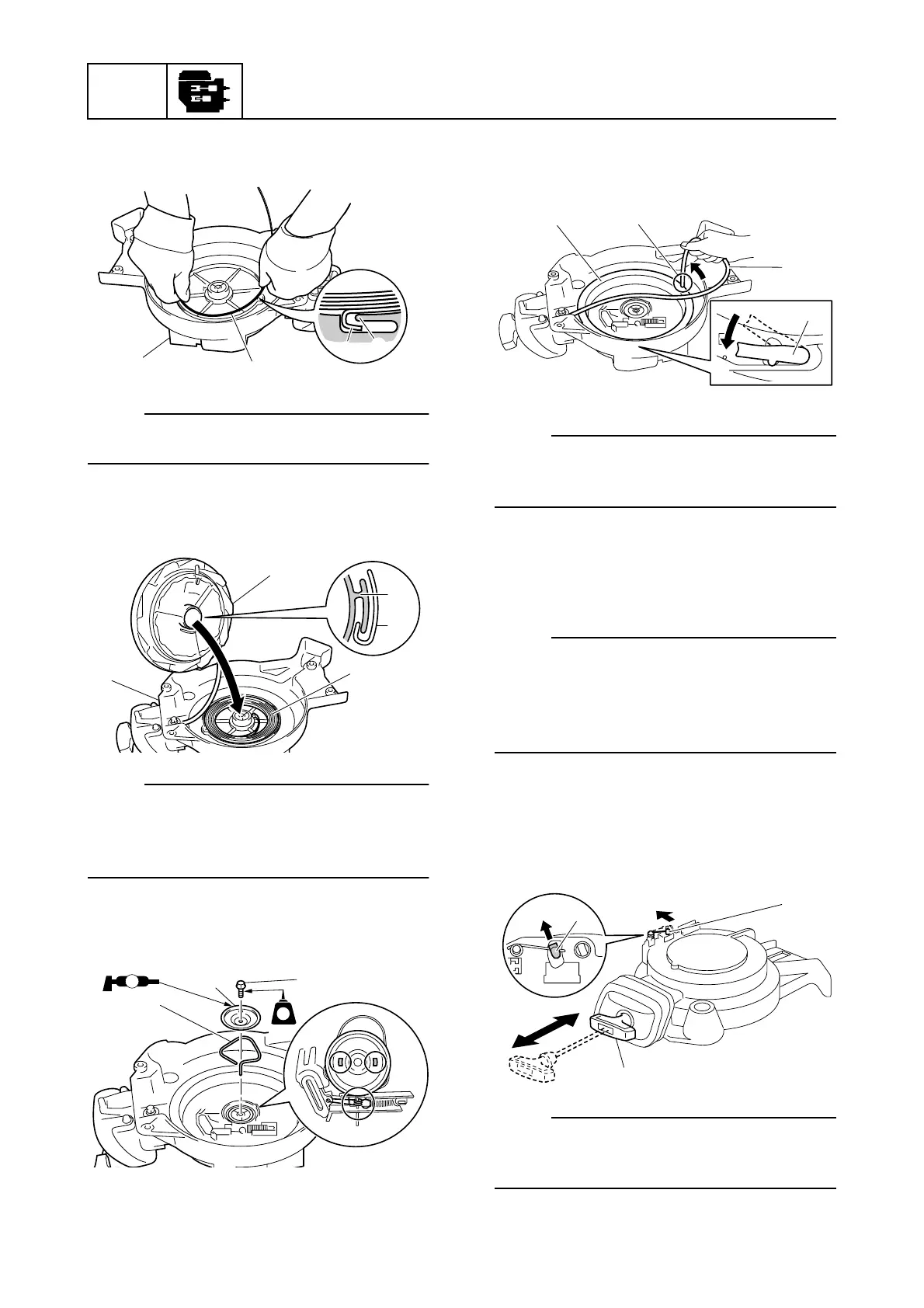

5. Install the spiral spring 8 into the manual
starter cover 9.
NOTE:
Hook the end c of the spiral spring 8 onto
the cut-out d in the manual starter cover 9.
6. Install the sheave drum 2 into the man-
ual starter cover 9.
NOTE:
• When installing the sheave drum 2, set the
spiral spring 8 by turning the drum.
• Hook the end e of the spiral spring 8 onto
the cut-out f in the sheave drum 2.
7. Install drive pawl spring 1 =, the drive
plate A, and the bolt B.
8. While holding the starter rope 1, turn the
sheave drum 2 3 turns in the direction of
the arrow shown.
NOTE:
Push the starter plunger 3 in the direction of
the arrow shown while turning the sheave
drum 2 as shown.
9. Remove the starter rope 1 from the
notch b, and then fit it into the groove in
the sheave drum 2.
NOTE:
• Be sure to hold the sheave drum 2 with
your hand so that it turns slowly.
• Allow the spring force to slowly turn the
drum as the starter rope winds around the
drum.
10. Pull the starter handle 7 several times to
check that the sheave drum turns
smoothly and to check the starter rope
for slack. Repeat steps 4–9 if necessary.
NOTE:
Push the starter plunger 3 in the direction of
the arrow shown while pulling the starter han-
dle 7.
S67C5034
8
9
c
d
S67C5035
2
9
f
e
8
S67C5036
LT
271
0
A
A
B
S67C5037
3
1
b2
S67C5038
7
3
3
