67C3K11 7-38
1
2
3
4
5
6
7
8
9

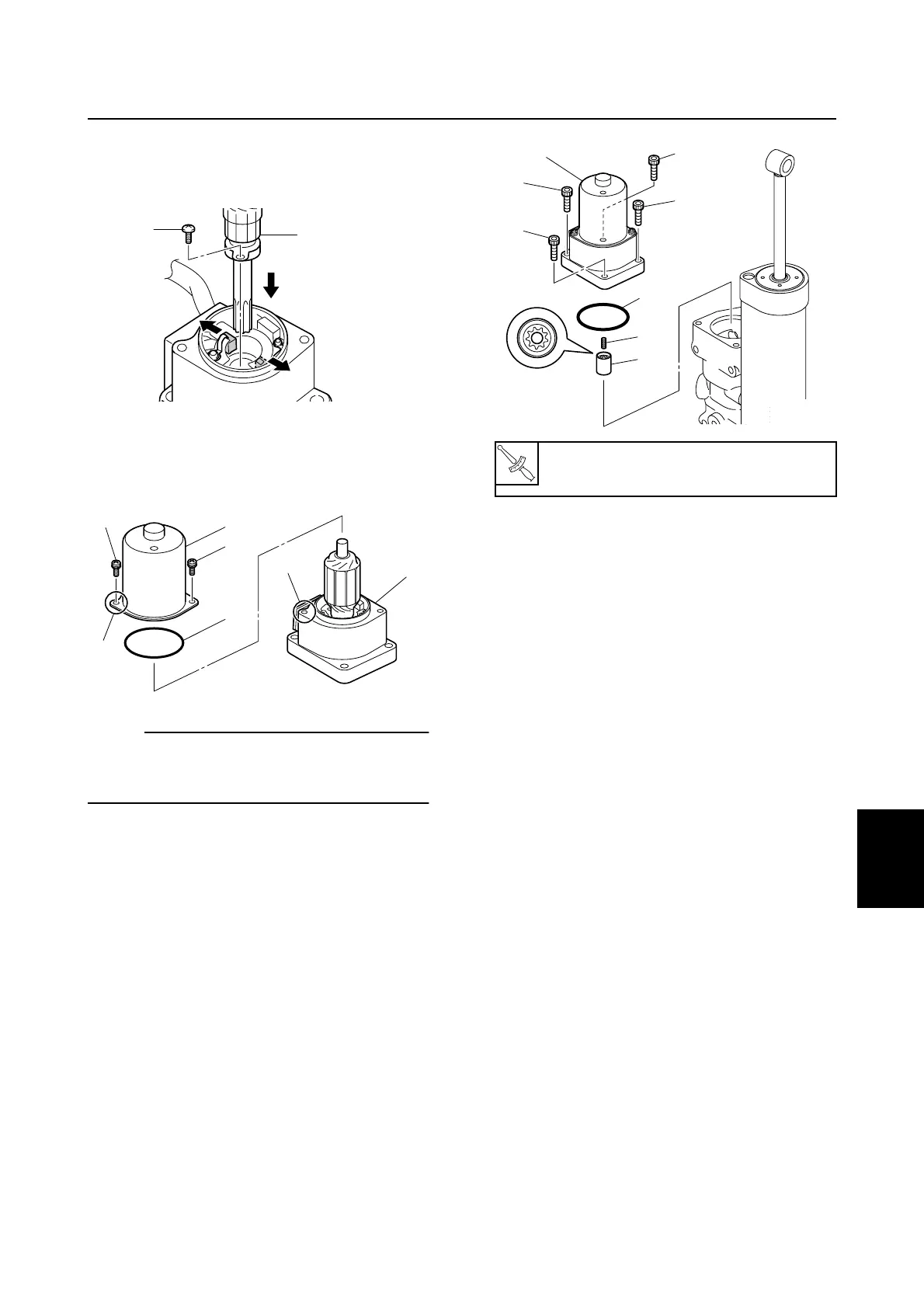

3. Push the brushes into the holders, and
then install the armature assembly 8
and tighten the armature plate screw 9.
4. Install a new O-ring = and the stator A
to the PTT motor base 7, and then
tighten the screws B.
NOTE:
Align the rounded section c of the stator A
with the rounded section d of the PTT motor
base 7.
5. Install a new O-ring C, the shaft connec-
tor D, the spring E, and the PTT motor
assembly F to the gear pump housing,
and then tighten the PTT motor assembly
bolts G to the specified torque.
S67C7073
8
9
S67C7074
7
A
B
B
c
0
d
T
R
.
.
PTT motor assembly bolt G:
7 N·m (0.7 kgf·m, 5.2 ft·lb)
S67C7075
F
G
G
G
E
C
D
G
PTT motor
